| Camera Details | ||
| Image Sensor | 2 MP CMOS | |
| Max. Resolution | 1920 (H) × 1080 (V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
|
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
|
| S/N Ratio | >65 dB | |
| Illumination Distance | 40 m (131.23 ft) | |
| Illuminator On/Off Control | Auto;Manual | |
| Illuminator Number | 4 (Multi-core light) | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 2.8 mm; 3.6 mm | |
| Max. Aperture | F2.0 | |
| Field of View | 2.8 mm: H: 111.3°; V: 60.8°; D: 134.2° 3.6 mm: H: 89°; V: 48.2°; D: 109.1° |
|
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft) |
|
| Video | ||
| Video Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC Mode | BLC; HLC; WDR; HLC-Pro | |
| WDR | DWDR | |
| White Balance | Auto | |
| Gain Control | Manual;Auto | |
| Noise Reduction | 3D NR | |
| Port | ||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) | |
| General Information | ||
| Casing | Metal front cover + plastic rear barrel + metal bracket | |
| Dimensions | 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00") (L × W × H) | |
| Weight | Net Weight: 0.34 kg (0.75 lb) Gross Weight: 0.49 kg (1.08 lb) |
|
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
|
| Power Supply | 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera) | |
| Power Consumption | Max 9.37 W (12 VDC, IR on) | |
| Warranty | ||
| Warranty | 01 Year Warranty | |

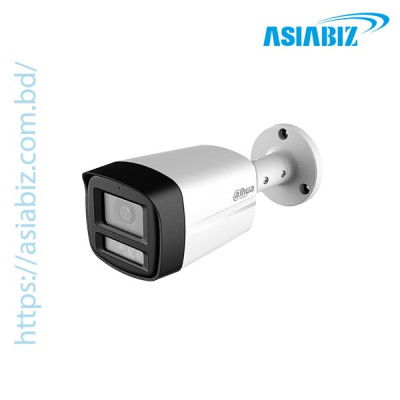

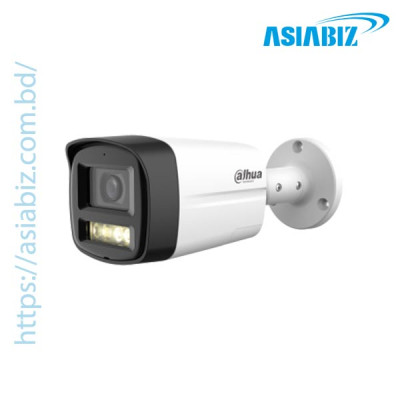

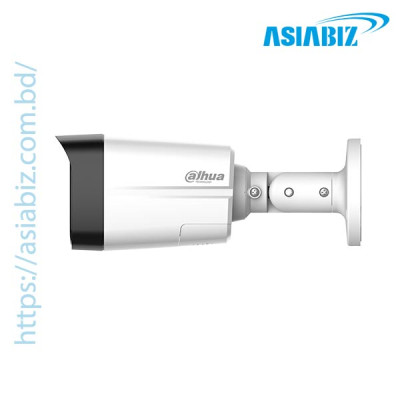

The Dahua HAC-HFW1200TLM-IL-T 2MP Smart Dual Light
HDCVI Two-way Talk Bullet Camera combines 1920 × 1080 resolution, infrared and
warm illumination, and a built-in microphone and speaker. Consider it for home
gates, shop entrances and delivery points in Bangladesh where you want to see
visitors and communicate through a compatible surveillance system.
Full HD Video: 1080p at 25/30fps.
Smart Dual Light: Smart, infrared and warm-light modes.
Night Illumination: Up to 40 metres.
Two-way Talk: Supported in CVI and TVI modes.
Audio Pickup: Up to 8 metres.
Lens Options: Fixed 3.6mm or optional 2.8mm.
Image Processing: Smart Light+, DWDR, 3D NR and Super Adapt.
Switchable Output: CVI, TVI, AHD and CVBS through a BNC connection.
Signal Selection: Built-in DIP switch.
Outdoor Protection: IP67.
Power Supply: 12V DC.
Talk to Visitors at the Entrance: Two-way communication is useful
when someone arrives with a delivery or needs directions to the correct
doorway. Position the camera around the place where visitors naturally stop, so
they do not have to stand beneath an awkward mounting point.
Test a conversation after
installation with the gate closed and normal background noise present. Road
traffic, wind and mounting height can affect how easily people hear each other.
Choose the Lighting for Your Location: Infrared provides
black-and-white night viewing, while warm light supports colour footage. Smart
mode coordinates illumination with supported detection events through a
compatible recorder.
For a residential entrance,
consider whether visible light could disturb nearby windows. For a shopfront,
check how the camera responds to existing signs, headlights and reflective
shutters. The quoted lighting range is not a promise of recognisable faces at
that distance.
Pros: Video
monitoring and visitor communication in one device. Choice of night-lighting
modes. Multiple video output formats. Suitable for an existing coaxial CCTV
layout after compatibility checks.
Cons: Requires
separate power and video cabling. Advanced functions depend on recorder
compatibility. Fixed view without motorised tracking. Conversation clarity
depends on installation and background noise.
This model is worth considering when upgrading a
coaxial CCTV installation to include entrance communication. Before replacing
an existing camera, check the recorder model, supported audio functions, cable
condition and power supply.
Plan the view around a specific task. Capturing
someone as they approach a gate is usually more useful than including a large
section of empty road. After setup, review recorded footage and test
conversation audio separately.
Asiabiz Technology provides the best after sell
service to clients. You can get the best support almost anytime by contact in
our hotline at ‘09678221422’ or our sales and technical team’s number
at01404-466160-61-62-63-66. We believe that providing the best service helps
build strong relationships with our clients.
Q: Is this a
WiFi or PoE camera?
A: No.
It uses a BNC video connection and 12V DC power.
Q: Will
two-way talk work with any DVR?
A: No.
Confirm support for this camera’s talk function and selected signal format
before purchasing.
Q: Can I
view it on my phone?
A: Remote
viewing depends on the connected recorder and its supported app. Configure
internet access through that recorder.
Q: Does it
record directly to a memory card?
A: Plan
recording through a compatible DVR/XVR; this is not a standalone memory-card
camera.
Q: Which
lens should I choose?
A: Choose
2.8mm for a broader overview or 3.6mm for a more focused view. Confirm the
supplied version before ordering.
Q: What is
the price of HAC-HFW1200TLM-IL-T HDCVI
Camera?
A: The price HAC-HFW1200TLM-IL-T HDCVI Camera around BDT 2,750 to BDT 5,500.
