| Camera Details | ||
| Image Sensor | 5 MP CMOS | |
| Max. Resolution | 2880 (H) × 1620 (V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
|
| Min. Illumination | 0.001 lux@F1.0 (Color, 30IRE) 0 lux (Illuminator on) |
|
| S/N Ratio | >65 dB | |
| Illumination Distance | 40 m (131.23 ft) | |
| Illuminator On/Off Control | Auto | |
| Illuminator Number | 4 (Warm light) | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 2.8 mm | |
| Max. Aperture | F1.0 | |
| Field of View | 2.8 mm: H: 111°; V: 57°; D: 131° | |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) | |
| Video | ||
| Video Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
|
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| Day/Night | Color | |
| BLC Mode | BLC; HLC; WDR; HLC-Pro | |
| WDR | 120 dB | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D NR | |
| Port | ||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Audio Input | One channel built-in Mic | |
| General Information | ||
| Casing | Plastic | |
| Dimensions | 92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12") | |
| Weight | Net: 0.40 kg (0.88 lb) Gross: 0.64 kg (1.41 lb) |
|
| Angle Adjustment | Pan: 0°–355° Tilt: 0°–90° |
|
| Power Supply | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) | |
| Power Consumption | Max 7.7 W (12 VDC, LED on) | |
| Warranty | ||
| Warranty | 01 Year Official Warranty | |

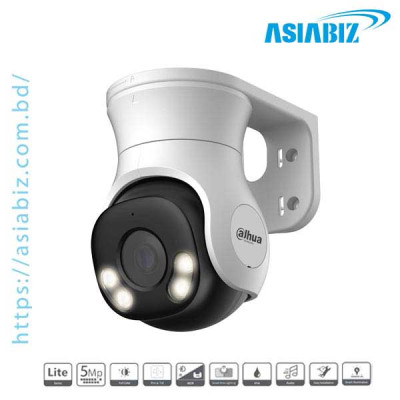

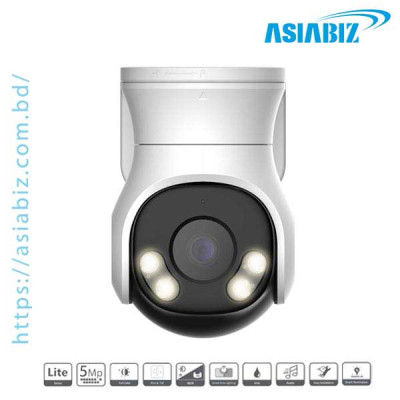

The Dahua HAC-PT1509A-A-LED 5MP Full Color HDCVI PT
Camera is a powerful security camera designed for crystal-clear surveillance in
both day and night. With its 5MP high-resolution sensor, Pan–Tilt capability,
and Full-Color LED technology, it delivers bright, colorful, and detailed
images even in complete darkness. This PT HDCVI camera is ideal for home, shop,
office, small business, showroom, and indoor monitoring where you need smooth
monitoring with live movement control. If you’re looking for a budget-friendly
full color PT CCTV camera in Bangladesh 2025, this Dahua model is one of the
best choices.
Full Color
24/7 Monitoring: See everything in vivid color—even at night. The built-in
LED and large aperture lens capture full-color video for maximum clarity and
detail.
5MP Ultra
Sharp Video Quality: Get stunning 5MP HD resolution that helps identify
faces, objects, and small details clearly—perfect for high-security areas.
Pan &
Tilt Control (PT Camera): Move the camera left-right (Pan) and up-down
(Tilt) to monitor a wider area. Great for shops, homes, and offices where one
camera needs to cover multiple angles.
Superb
Low-Light Performance: Dahua’s advanced image processing ensures bright,
clear footage even in low-light environments without losing important details.
Smart Area
Lighting: Automatically adjusts the intensity of the brightness and
exposure for the left and right areas in the video based on the proportion and position
of the targets to reveal more details in the image.
HDCVI
Technology: Enjoy HD quality video over long distances using coaxial cable.
No internet lag, no drop in clarity.
Built-in
Microphone: Record clear audio along with video for better monitoring and
evidence capturing.
Dahua is one of the most trusted CCTV brands
globally, known for high durability, better low-light performance, and advanced
security features. The HAC-PT1509A-A-LED 5MP is a premium full-color PT
solution available in Bangladesh at the best price in BD 2025, fully supported
by Asiabiz Technology, your reliable CCTV camera shop in Bangladesh.
Frequently
Asked Questions (FAQs) about this HDCVI PT Camera:
Q: Does this
PT1509A-A-LED camera support full color at night?
A: Yes,
it provides Full Color 24/7 using LED illumination.
Q: Can I
rotate the camera?
A: Yes,
the camera supports Pan & Tilt movement through compatible Dahua DVR
interfaces.
Q: Will it
work with my old DVR?
A: If
your DVR supports HDCVI / XVR, it will work perfectly.
Q: Is audio
recording available?
A: Yes,
the camera has a built-in microphone for clear audio capture.
Q: Is it
good for shop or home use?
A: Yes! It’s ideal for shops, homes, cash counters, hallways, warehouses, and more.
Watch Full Review in Bangla of this HAC-PT1509A-A-LED PT Camera on our YouTube Channel
