| Camera Details | ||
| Image Sensor | 1/3" CMOS | |
| Megapixel | 5+5 MP | |
| Resolution | 2880 (H) × 1620 (V) | |
| Night Vision | Fixed Lens: Up to 30 m (98.43 ft) (IR) Up to 20 m (65.62 ft) (Warm light) PT Lens: Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
|
| Lens | Fixed-focal | |
| Field of View | Fixed Lens: H: 95°; V: 53°; D: 110° PT Lens: H: 49°; V: 26°; D: 57° |
|
| Rotate | Fixed Lens: -10° to 15° PT Lens: Pan: 0° to 352°; Tilt: 0° to 90° |
|
| Network & Connectivity | ||
| Wireless Network | IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G,≤20dBm@2400-2483.5MHz |
|
| Ethernet Port | RJ-45 (10/100 Base-T) | |
| App | iOS;Android | |
| Video & Audio | ||
| Video Compression | H.265 | |
| Frame Rate | Main stream: 2880 × 1620@15 fps sub stream: 640 × 360@15 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
| Zoom | 8X Zoom | |
| Audio | Yes, built-in speaker | |
| Auxiliary Interface | ||
| Button | Reset Button | |
| Storage | Micro SD card (support max. 256 GB) | |
| Smart AI Detection | ||
| Motion Detection | Yes | |
| Vehicle Detection | Yes | |
| General Information | ||
| Power Supply | 12 VDC | |
| Power Consumption | Basic: 2.6 W | |
| Working Environment | Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F) Operating Humidity: ≤95% (RH), non-condensing |
|
| Dimensions | 159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H) | |
| Weight | 585 g (1.29 lb) | |
| Warranty Information | ||
| Warranty | 01 Year Warranty | |

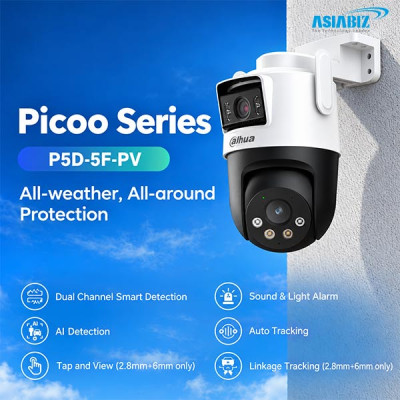

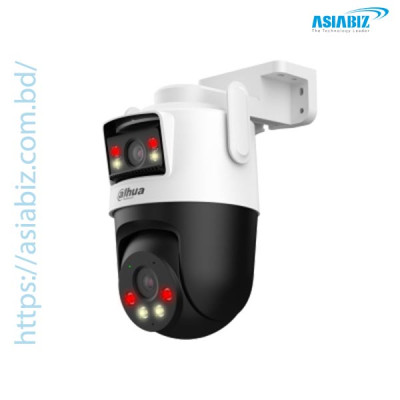

The Dahua P5D-5F-PV 10MP Dual-Lens Smart WiFi IP Camera combines two 5MP views, pairing a 2.8mm fixed camera with a 6mm
pan-and-tilt camera. Each delivers 2880 × 1620 resolution. This arrangement
suits locations where you want an overview alongside a more focused view, such
as home entrances, shopfronts, parking areas and warehouse approaches in
Bangladesh.
Dual 5MP Imaging: 5MP + 5MP configuration.
Motorised Movement: 352° pan and 90° tilt.
Smart Detection: Human, vehicle and motion detection.
Automatic Tracking: Follows detected targets.
Two-way Talk: Built-in microphone and speaker.
Active Deterrence: Sound and light warnings.
Fixed-Camera Illumination: Up to 30m IR and 20m warm light.
PT-Camera Illumination: Up to 50m IR and 40m warm light.
Networking: 2.4GHz Wi-Fi 6 and Ethernet.
Setup: Bluetooth-assisted pairing.
Storage: MicroSD up to 256GB.
Video: H.265; up to 15fps at full resolution.
Outdoor Protection: IP66.
App: DMSS for Android and iOS.
Power: 12V DC.
An Overview and a Closer View
The two lens focal lengths
serve different purposes. The wider view helps establish where activity is
happening, while the narrower view makes a subject larger in the frame at the
same distance.
For an entrance, plan the
overview around the doorway and the approach. Before mounting, check that
nearby walls, roof edges or parked vehicles will not obstruct either view. Both
cameras share one installation point, so positioning matters.
Day and Night Monitoring
Infrared provides
black-and-white visibility after dark, while warm illumination supports colour
footage. Choose the lighting setup around what you need to review and whether
visible light is suitable for the location.
The quoted illumination
distances are not guaranteed face-identification distances. Test nighttime
recordings with someone walking through the monitored area, particularly where
headlights or reflective surfaces could affect the picture.
Pros: Overview
and focused views in one device. Remote viewing-direction control. Two-way
communication. Wireless and wired networking options.
Cons: Requires
continuous external power. Both views depend on one mounting position. Tracking
cannot see through obstructions. Storage retention depends on recording
settings and activity.
Consider the P5D-5F-PV when a single viewing
direction would leave you choosing between an overview and a more focused view.
It offers a useful layout for monitoring activity around a defined access
point.
Before installation, test the network connection at
the mounting location. A good signal indoors does not establish reliable
coverage outside a thick wall. Plan the power connection and protect exposed cable
joints, then check recorded playback as well as live viewing.
Asiabiz Technology provides the best after sell
service to clients. You can get the best support almost anytime by contact in
our hotline at ‘09678221422’ or our sales and technical team’s number
at01404-466160-61-62-63-66. We believe that providing the best service helps
build strong relationships with our clients.
Q: Is this a
single 10MP camera image?
A: No.
The 10MP description refers to two 5MP cameras, rather than one 10MP image.
Q: Does it
support 5GHz WiFi?
A: The
published specification lists 2.4GHz WiFi only. Wi-Fi 6 does not automatically
mean 5GHz support.
Q: Does the
6mm lens provide optical zoom?
A: It
provides a narrower view than the 2.8mm lens. A fixed focal length does not
provide adjustable optical zoom.
Q: Can it
monitor every direction simultaneously?
A: No.
Pan-and-tilt movement changes the viewing direction over time. Walls and other
obstacles can still create blind spots.
Q: Does
human detection identify specific people?
A: No.
Detecting a person is different from recognising their identity.
Q: What is
the price of Dahua P5D-5F-PV WiFi IP
Camera?
A: The price Dahua P5D-5F-PV WiFi IP Camera around BDT 3,350 to BDT 4,500.
