Cash Discount Price
Online / Cash Payment
| System | ||
| Main Processor | Industrial-grade processor | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect | |
| IP Camera Input | Up to 5 channels of IPC access 1 IP channel by default + 4 channels (analog channels are converted to IP channels) Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
|
| Encoding Capacity | Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–15 fps) |
|
| Audio Sampling & Bit Rate | 32 kbps–4096 kbps 8 kHz, 16 bit |
|
| Video Output | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
|
| Recording & Playback | ||
| Record Mode | General; alarm; motion detection | |
| Recording Playback | 1/4 | |
| Backup Method | USB device and network | |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback | |
| Detection & Alarm | ||
| General Alarm | Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm | |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline | |
| Intelligent Alarm | SMD Plus | |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email | |
| Network | ||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
|
| Smart Phone | iOS; Android | |
| Interoperability | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK | |
| Ports | ||
| Audio Input | 1-channel RCA 4-channel BNC (Coaxial Audio) |
|
| Audio Output | 1-channel RCA | |
| Two-way Talk | Coaxial two-way talk: 4-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
|
| Storage | 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature. | |
| USB Ports | 2 (2 rear USB 2.0 ports) | |
| HDMI & VGA | 1 | |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) | |
| General Information | ||
| Power Supply | 12 VDC, 1.5 A | |
| Power Consumption | <7 W (without HDD) | |
| Weight | 0.54 kg (1.19 lb) 0.94 kg (2.07 lb) |
|
| Dimensions | 197.0 mm × 204.3 mm × 41.5 mm (7.76" × 8.04" × 1.63") (W × D × H) | |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) | |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) | |
| Warranty | ||
| Warranty | 01 Year warranty | |

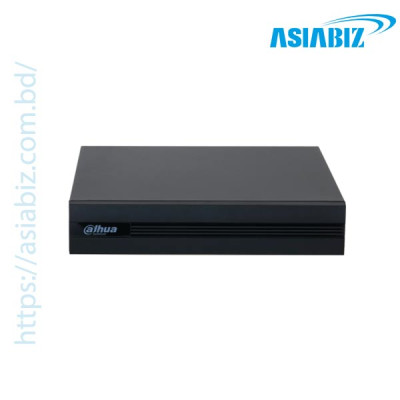

The Dahua XVR1B04-I/T 4 Channel
Two-Way Talk WizSense Digital Video Recorder is a smart and practical recording
solution for users who need stable CCTV management, intelligent monitoring, and
built-in communication support for homes, shops, offices, and small business
security systems. Designed as a 4-channel penta-brid WizSense DVR, this model
supports multiple camera formats and adds two-way talk over coaxial cable,
making it more useful than a basic recorder for day-to-day surveillance. Dahua
positions it as a 4-channel penta-brid 1080N/720P Cooper 1U 1HDD WizSense
Digital Video Recorder, with support for HDCVI, AHD, TVI, CVBS, and IP inputs. This
recorder is especially suitable for users who want a compact DVR with smarter
event handling. Dahua states that it supports 4-channel SMD Plus for analog
channels, which helps trigger more accurate alarms for humans and vehicles, and
it also supports H.265+/H.265 dual-stream video compression for more efficient
recording. It can work with multiple video input types and supports up to 5 IP camera inputs, with each IP channel up to 2MP and a maximum incoming bandwidth
of 20 Mbps on the closely related official product family listing.
4-channel
support for small CCTV systems: It is ideal for homes, small offices,
shops, and showrooms that need organized recording for multiple cameras.
Two-way talk
over coaxial cable: Dahua states this model supports 4-channel two-way talk
over coaxial cable, enabling communication between camera, client, and recorder
in compatible setups.
WizSense
smart detection support: With SMD Plus for analog channels, the DVR can
provide more accurate alarms focused on humans and vehicles.
Penta-brid
compatibility: It supports HDCVI, AHD, TVI, CVBS, and IP video inputs,
which makes it practical for mixed or upgraded CCTV systems.
Efficient
video compression: Supports H.265+/H.265 dual-stream compression, helping
improve storage efficiency and recording performance.
Suitable for
upgrade and migration projects: Because it supports multiple camera types,
it is a useful choice for users upgrading older analog systems gradually.
The Dahua XVR1B04-I/T is a good choice for
customers who want more than a basic entry-level DVR. Its 4-channel capacity is
practical for compact setups, while WizSense features improve event detection
and two-way talk over coaxial cable adds extra real-world usefulness. Its
penta-brid support is also valuable for users who want flexibility when
connecting different camera technologies. For buyers in Bangladesh looking for
a dependable Dahua 4 channel WizSense DVR, this model offers strong everyday
value. It is available at Asiabiz Technology, where customers can get genuine
security products, competitive pricing, and trusted support.
Use Cases: This
DVR is ideal for home CCTV systems, where users want to connect cameras for
entrances, garages, hallways, and boundary monitoring. It is also a strong
choice for shops and showrooms, where owners need to manage several cameras and
want smarter event alerts for important activity.
Pros: 4-channel
support for practical small CCTV setups; Two-way talk over coaxial cable; WizSense
with SMD Plus for human and vehicle detection; Supports HDCVI, AHD, TVI, CVBS,
and IP inputs; H.265+/H.265 compression for better storage efficiency; Trusted
Dahua brand.
Cons: 4
channels may not be enough for larger installations; IP camera support is
relatively limited compared with bigger DVR/NVR models; Full smart-feature
benefit depends on compatible cameras and correct setup.
Asiabiz Technology provides the best after sell
service to clients. You can get the best support almost anytime by contact in
our hotline at ‘09678221422’ or our sales and technical team’s number
at01404-466160-61-62-63-66. We believe that providing the best service helps
build strong relationships with our clients.
Q. What is the Dahua XVR1B04-I/T used for?
A: It is used for recording, managing, and
monitoring CCTV camera footage in homes, offices, shops, and small business
security systems.
Q. How many cameras does this DVR support?
A: It is a 4-channel DVR and supports
multiple camera input types, including HDCVI, AHD, TVI, CVBS, and IP.
Q. Does this DVR support two-way talk?
A: Yes. Dahua states it supports 4-channel
two-way talk over coaxial cable in compatible setups.
Q. What is WizSense in this DVR?
A: WizSense in this model includes SMD Plus
for analog channels, helping the DVR trigger more accurate alarms for humans
and vehicles.
Q. Is this DVR suitable for upgrading an older CCTV system?
A: Yes. Its penta-brid support makes it
useful for users upgrading mixed or older analog surveillance systems.
Q. Where can I buy the Dahua XVR1B04-I/T in Bangladesh?
A: You can buy it from Asiabiz Technology, a trusted supplier of CCTV cameras, DVRs, NVRs, IP cameras, and security solutions in Bangladesh.
Get specific details about this product from customers who own it.
