| Camera | ||
| Image sensor | 1/3" Progressive Scan CMOS | |
| Lens | Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
|
| IR Night Vision Distance | 30 m (98 ft) | |
| Lens Mount | M12 | |
| Night Vision | IR-cut filter with auto switch | |
| Rotate | Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle ) Bottom Lens: Pan: 324°, Tilt: 90° |
|
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Video & Audio | ||
| Max. Resolution | 2K+ (2560 × 1440) | |
| Frame Rate | Self-adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| Video Bit Rate | Quad HD; Full HD; Standard adaptive bit rate | |
| Audio | Built in Mic | |
| Zoom | 8X | |
| Auxiliary Interface | ||
| Local Storage | Supports microSD card (max. 512 GB) | |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) | |
| Button | Reset Button | |
| Network | ||
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20MHz | |
| Security | WPA-PSK/WPA2-PSK | |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps | |
| Wi-Fi Pairing | AP paring | |
| Protocol | EZVIZ cloud proprietary protocol | |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) | |
| Smart Detection | ||
| Motion Detection | Yes | |
| Human Detection | Yes | |
| Abnormal Sound Detection | Yes | |
| Vehicle Detection | Yes | |
| Warranty | ||
| Official Warranty | 01 Year Warranty | |
| General Information | ||
| Power Supply | IP65 + 2h rainstorm | |
| Power Consumption | MAX. 18W | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) | |
| Dimensions | 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) | |
| Weight | Net weight: 723 g (25.51 oz) With Package: 1203 g (42.43 oz) |
|
| IP Grade | Weatherproof Design | |
| Certifications | ||
| Certifications | CE / UL / WEEE / RoHS / REACH | |

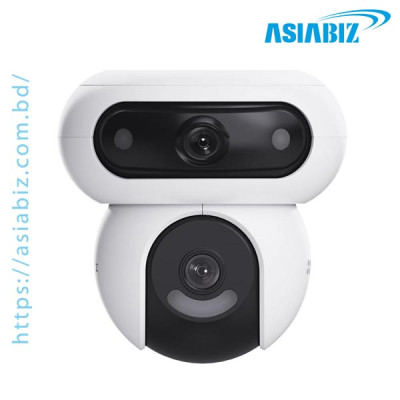

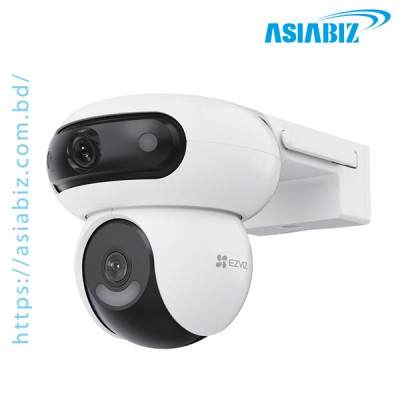

The EZVIZ CS-H90 8MP Dual Lens Smart WiFi IP Camera
is an advanced dual-lens security camera designed for users who want wider-area
surveillance with intelligent tracking and fewer blind spots from a single
camera. Its two-camera architecture combines two 4MP imaging units, allowing it
to monitor different areas simultaneously or work together to follow activity.
The EZVIZ H90 Dual combines a 2.8mm wide-angle top
lens with a 6mm bottom lens, dual rotation, AI-powered human and vehicle
detection, auto tracking, two-way talk, color night vision, active defense with
siren and strobe light, H.265 video compression, microSD storage up to 512GB,
and both WiFi and wired Ethernet connectivity.
For users searching for EZVIZ CS-H90 price in BD, this camera is a strong choice for homes, shops, offices, warehouses,
entrances, yards, and other locations where broad-area smart surveillance is
important.
Dual 4MP
Lenses for Wider Surveillance: The H90 Dual uses two 4MP cameras, providing
a combined 8MP imaging setup. Instead of relying on one fixed viewing angle,
its two lenses can cover different areas or work together to observe the same
activity with greater detail.
2K+ Video
Resolution: Each camera provides up to 2K+ resolution, with EZVIZ
documentation listing 2560 × 1440 for the relevant H90 Dual specification. This
provides detailed video suitable for monitoring entrances, yards, shops,
offices, and other important areas.
Dual-Lens
Pan & Tilt Design: The two lenses provide flexible movement. The top
lens offers a wide viewing perspective, while the bottom lens provides a more
focused view with extensive pan and tilt movement. This dual-rotation design
helps reduce blind spots and provides more flexible surveillance coverage.
AI Human and
Vehicle Detection: The camera uses AI-powered human shape and vehicle shape
detection along with motion detection. This can help distinguish important
movement from general activity and make security alerts more useful.
Smart Auto
Tracking: The EZVIZ CS-H90 supports auto tracking, allowing the camera
system to follow detected activity automatically. This is particularly useful
for monitoring moving people or vehicles across a larger area.
Color Night
Vision: The camera supports color night vision up to 40 meters when the two
lenses point in the same direction. It also provides IR night vision up to 30
meters. Actual night visibility can vary according to lighting, installation,
and environmental conditions.
Active Defense
with Siren and Strobe Light: When supported security events are detected,
the camera can use siren and strobe-light active defense to help deter unwanted
activity.
Two-Way
Audio: The built-in two-way talk feature allows users to communicate
through the camera using compatible devices. This can be useful for home
entrances, shops, offices, reception areas, and other locations where remote
communication is helpful.
WiFi and
Ethernet Connectivity: The EZVIZ CS-H90 supports 2.4GHz WiFi as well as an
RJ45 10/100 Mbps adaptive Ethernet port. This gives users flexibility when
installing the camera in locations where wireless or wired networking is
preferable.
MicroSD
Storage up to 512GB: The camera supports a microSD card up to 512GB for
local recording. EZVIZ also offers CloudPlay cloud storage as a
subscription-based option.
H.265 Video
Compression: H.265 compression can reduce storage and bandwidth
requirements compared with H.264 under comparable conditions. EZVIZ states that
H.265 can use about 50% of the storage space required by H.264 in its testing
context, although actual savings depend on the scene and recording conditions.
Weather-Resistant
Design: The H90 Dual is designed for
outdoor environments and is specified with a weatherproof design. EZVIZ lists
operation from -30°C to 50°C and an IP65-related weatherproof specification for
the camera.
There are
many reasons to buy EZVIZ CS-H90
Wifi Camera from Asiabiz Technology, such as the company being an authorized reseller
of, providing genuine products with applicable warranty support, and
issuing a hard copy invoice that clearly mentions the product name, serial
number, purchase details, and warranty information. Asiabiz Technology also has
a physical shop where customers can visit for product consultation and support,
along with reliable after-sales service to assist customers with
product-related issues after purchase.
After Sell
Service:
Asiabiz Technology provides the best after sell
service to clients. You can get the best support almost anytime by contact in
our hotline at ‘09678221422’ or our sales and technical team’s number
at01404-466160-61-62-63-66. We believe that providing the best service helps
build strong relationships with our clients.
Frequently
Asked Questions (FAQs)
Q: Is EZVIZ CS-H90 an 8MP camera?
A: The CS-H90 uses two 4MP imaging units,
giving an 8MP combined imaging setup. It should not be confused with a single
8MP sensor camera. The maximum video resolution is specified as 2K+ per camera
stream.
Q: Does EZVIZ CS-H90 have dual lenses?
A: Yes. The H90 Dual uses two lenses: a
2.8mm top lens and a 6mm bottom lens, allowing different viewing perspectives
from one camera body.
Q: Does EZVIZ CS-H90 support night vision?
A: Yes. It supports IR night vision up to 30
meters and color night vision up to 40 meters when both lenses point in the
same direction, according to EZVIZ's specifications.
Q: Does EZVIZ CS-H90 support AI detection?
A: Yes. The camera supports AI-powered human
shape detection, vehicle shape detection, and motion detection.
Q: Does EZVIZ CS-H90 support auto tracking?
A: Yes, the H90 Dual supports auto tracking
for detected activity.
Q: What is
the price of EZVIZ CS-H90 Wifi Camera?
Get specific details about this product from customers who own it.
