Cash Discount Price
Online / Cash Payment
| System | ||
| Main Processor | Industrial-grade embedded processor | |
| Operating System | Embedded Linux | |
| AI | ||
| AI by Recorder | N/A | |
| AI by Camera | N/A | |
| AcuPick AI by Camera + Recorder | N/A | |
| Perimeter Protection | ||
| Performance AI by Recorder | N/A | |
| Performance of AI by Camera | N/A | |
| SMD Plus | ||
| By Recorder | N/A | |
| By Camera | N/A | |
| Audio and Video | ||
| Access Channel | 4 channels | |
| Network Bandwidth | Wired mode: 40 Mbps incoming, 40 Mbps recording and 20 Mbps outgoing Wireless mode: 16 Mbps incoming, 16 Mbps recording |
|
| Resolution | 6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1 | |
| Decoding Capability | 1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps | |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) | |
| Multi-screen Display | 1, 4 views | |
| Third-party Camera Access | Onvif | |
| Recording & Playback | ||
| Multi-channel Playback | Up to 4 channels | |
| Record Mode | Manual record; alarm record; motion detection record; schedule record | |
| Backup Method | USB device | |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (motion detection) | |
| Detection & Alarm | ||
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm | |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception | |
| Intelligent Alarm | N/A | |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; tour | |
| Network | ||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P | |
| Smart Phone | Android; iOS | |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK | |
| Ports | ||
| Audio Input | 1 | |
| Audio Output | 1 | |
| Alarm Input | N/A | |
| Alarm Output | N/A | |
| Storage | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature | |
| USB Ports | 1 front USB 2.0 port, 1 rear USB 2.0 port | |
| HDMI & VGA | 1 | |
| Network Port | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port | |
| PoE Port | N/A | |
| General Information | ||
| Power Supply | 12 VDC, 1.5 A | |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) | |
| Weight | 0.824 kg (1.82 lb) 1.56 kg (3.44 lb) |
|
| Dimensions | 260.3 mm × 247.3 mm × 44.7 mm (10.25" × 9.74" × 1.76") (W × L × H) 372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H) |
|
| Operating Temperature | –10 °C to + 45 °C (+ 14 °F to +113 °F) | |
| Storage Temperature | N/A | |
| Warranty | ||
| Warranty | 01 Year warranty | |

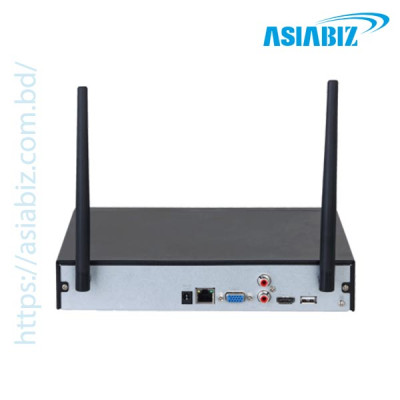

The Imou NVR1104HS-W-S2 4 Channel
Wireless Network Video Recorder (NVR) is a practical choice for users who want
a simple wireless CCTV recording system for home, shop, office, or small
business use in Bangladesh. The original platform specs show this model as a
4-channel compact 1U wireless NVR with one-click wireless pairing, automatic
camera pairing, camera cascading for longer-distance surveillance, Smart H.265
/ Smart H.264 compression, ONVIF support, HDMI and VGA simultaneous output, and
up to 16TB SATA storage support. It is designed for users who want easier setup
than a traditional wired recorder while still keeping reliable local recording
and remote access. If you are searching for NVR price in BD 2026, wireless NVR
price in Bangladesh, or a dependable 4 channel wireless NVR for Imou or ONVIF
cameras, this model is a smart option.
Wireless
pairing makes setup easier for everyday users: The recorder supports
one-click wireless pairing to IPCs and can automatically pair cameras after
boot, which is useful for users who want a simpler installation process.
4-channel
support is ideal for small security systems: This model supports 4 access
channels, making it a practical fit for apartments, small offices, retail
counters, and home entrances.
Camera
cascading helps extend wireless coverage: The official specs mention
automatic cascading of IPCs for long-distance surveillance, which can help in
setups where cameras are placed farther from the recorder.
Smart H.265
and Smart H.264 help save storage space: Efficient compression is useful
for users who want longer recording time without filling the hard drive too
quickly.
Supports
ONVIF cameras for better compatibility: The recorder supports ONVIF and
mainstream ONVIF protocol cameras, which gives users more flexibility beyond a
single-brand camera environment.
HDMI and VGA
output allow easy local viewing: It includes 1 HDMI and 1 VGA output with
simultaneous display, and HDMI supports up to 1080p output.
Up to 16TB
storage support is useful for longer recording: The official specs list 1
SATA port, up to 16TB, which is practical for users who want more local
recording capacity.
If you want a dependable Imou wireless NVR for a
small CCTV system in Bangladesh, the NVR1104HS-W-S2 is a practical option
because it combines easier wireless setup, ONVIF compatibility, local storage,
and flexible viewing outputs in one compact recorder. It is especially useful
for buyers who want a simpler alternative to a fully wired NVR installation.
For the best price in BD 2026, this NVR is available at Asiabiz Technology.
Pros and
Cons of Imou NVR1104HS-W-S2
Pros: Wireless
pairing makes installation easier.4-channel support is enough for small home or
shop systems. Smart H.265 / Smart H.264 helps reduce storage use. ONVIF support
improves camera compatibility. Up to 16TB SATA support is strong for a compact
4-channel model. Android and iOS mobile access is supported.
Cons: This
is a 4-channel NVR, so it is not ideal for users planning larger 8-camera
systems. In wireless mode, the listed bandwidth is lower than wired mode, so
very demanding multi-camera setups need proper planning. The official specs list
16 Mbps incoming/recording in wireless mode versus 40 Mbps incoming/recording
in wired mode. It supports 1080p HDMI output, so users wanting 4K local display
should look at higher-end models.
Frequently
Asked Questions (FAQs)
Q: Is Imou
NVR1104HS-W-S2 a 4 channel wireless NVR?
A: Yes.
The official specs list it with 4 access channels and wireless pairing
features.
Q: Does this
NVR support wireless camera pairing?
A: Yes.
It supports one-click wireless pairing and automatic pairing to IPCs after
boot.
Q: How much
hard drive does Imou NVR1104HS-W-S2 support?
A: It
supports 1 SATA port up to 16TB, though the maximum capacity can vary with
operating temperature.
Q: Does it
support ONVIF cameras?
A: Yes.
The official specs list ONVIF (Profile T/S/G) support and compatibility with
mainstream ONVIF cameras.
Q: Is this
NVR good for home or shop CCTV in Bangladesh?
A: Yes. It is a practical option for smaller wireless CCTV setups in homes, retail shops, and offices where 4 cameras are enough and easy installation matters. That conclusion is based on the official channel count, wireless pairing features, and local storage support.
Get specific details about this product from customers who own it.
