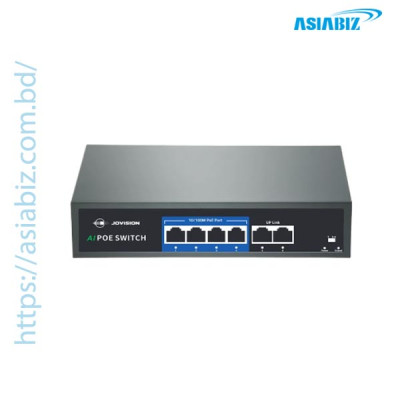

Jovision JVS-S06-4P-65W 4 Port PoE Switch

Description

Jovision JVS-S06-4P-65W 4 Port PoE Switch Price in BD

The Jovision JVS-S06-4P-65W 4 Port PoE Switch is a compact Fast Ethernet switch designed for IP camera and PoE networking applications. It provides 6 adaptive 10/100Mbps RJ45 ports, including 4 PoE ports and 2 uplink ports, allowing compatible IP cameras and network devices to receive both data and power through Ethernet cables. With IEEE 802.3af/at PoE support, a 65W total power budget, VLAN isolation, and extended transmission mode, it is a practical choice for small CCTV installations, offices, shops, and other network environments.

Key Features of Jovision JVS-S06-4P-65W 4 Port PoE Switch

4-Port PoE Output: Provides 4 PoE-enabled 10/100Mbps ports for powering compatible IP cameras and other PoE network devices.

2 Uplink Ports: Includes 2 additional 10/100Mbps RJ45 ports for connecting the switch to an NVR, router, or another network switch.

65W Total PoE Budget: The switch offers up to 65W of total PoE power, with up to 30W available per individual PoE port within the supported standard.

IEEE 802.3af/at Support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices, allowing flexible connection of different PoE equipment.

VLAN Isolation Mode: VLAN mode can isolate connected PoE ports from each other while maintaining communication with the uplink, helping improve network separation in CCTV installations.

Extended Transmission Mode: The switch supports an extended transmission mode for longer-distance PoE deployment where compatible installation conditions allow.

10/100Mbps Adaptive Ports: All six RJ45 ports automatically adapt to 10Mbps or 100Mbps network speeds according to the connected device.

Auto MDI/MDI-X: Automatic port detection simplifies Ethernet connections by removing the need to worry about cable type.

Flow Control & MAC Learning: Supports IEEE 802.3X flow control, backpressure, and automatic MAC address learning and aging for efficient network traffic handling.

Metal Housing & Protection: Its full-metal construction and built-in over-current, over-voltage, and short-circuit protection help provide dependable operation in surveillance setups.

Where Can You Use JVS-S06-4P-65W 4 Port PoE Switch?

Small CCTV Systems: Connect and power up to four compatible PoE IP cameras while using the uplink ports to connect with the NVR or main network.

Home Security Networks: Build a simple PoE surveillance setup without separate power adapters for each compatible IP camera.

Retail Shops: Power and connect cameras installed around entrances, checkout areas, storage rooms, and other important locations.

Small Offices: Use the switch for IP cameras, access points, and other compatible PoE network devices in a compact office network.

Restaurants & Showrooms: Simplify camera installation by carrying power and network data through a single Ethernet cable.

Schools & Small Institutions: Deploy a centralized PoE connection for cameras placed around gates, corridors, classrooms, or office areas.

Warehouse Monitoring: Connect cameras used for monitoring entrances, storage areas, and loading points where PoE cabling is convenient.

Wireless Access Point Deployment: The switch can also supply Ethernet power to compatible PoE wireless access points and other network terminals.

Buy Jovision JVS-S06-4P-65W 4 Port PoE Switch in Bangladesh

Looking for the Jovision JVS-S06-4P-65W 4 Port PoE Switch Price in Bangladesh? Asiabiz Technology offers Jovision networking and CCTV accessories for home, office, commercial, and surveillance projects across Bangladesh.

Before purchasing, check the PoE power requirement of your IP cameras and make sure the total load remains within the 65W PoE budget. For larger CCTV systems, selecting the appropriate number of PoE ports and uplink capacity is also important.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many PoE ports does the Jovision JVS-S06-4P-65W have?

A: It has 4 PoE ports and 2 additional RJ45 uplink ports.

Q: What PoE standards are supported?

A: The switch supports IEEE 802.3af and IEEE 802.3at PoE standards.

Q: What is the total PoE power budget?

A: The total PoE power budget is 65W, with up to 30W supported on an individual PoE port under the listed specification.

Q: Can I connect an NVR to this PoE switch?

A: Yes. An uplink port can be connected to an NVR, router, or another network switch for data communication.

Q: Is the Jovision JVS-S06-4P-65W suitable for IP cameras?

A: Yes. It is specifically suitable for powering and networking compatible PoE IP cameras and other PoE devices.

Q: Does this switch support VLAN?

A: Yes. It provides a VLAN isolation mode for separating connected PoE ports from each other while maintaining uplink connectivity.

Q: What network speed does the switch support?

A: All six RJ45 interfaces are 10/100Mbps adaptive ports.

Q: Can the switch transmit PoE over a longer distance?

A: Yes. It supports an extended transmission mode intended for longer-distance CCTV deployments, subject to compatible cabling and installation conditions.

Q: What is the price of Jovision JVS-S06-4P-65W 4 Port PoE Switch?

A: The price Jovision JVS-S06-4P-65W 4 Port PoE Switch around BDT 2,800 to BDT 3,200.
