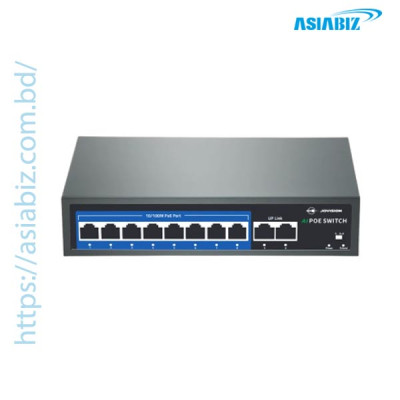

Jovision JVS-S10-8P-120W 8 Port PoE Switch

Description

Jovision JVS-S10-8P-120W 8 Port PoE Switch Price in BD

The Jovision JVS-S10-8P-120W 8 Port PoE Switch is an 8-port Fast Ethernet PoE switch designed for IP camera and network device installations. It provides 8 × 10/100Mbps PoE ports and 2 × 10/100Mbps uplink ports, allowing compatible PoE devices to receive network data and electrical power through a single Ethernet cable. With a 120W total PoE budget, IEEE 802.3af/at support, AI detection, VLAN isolation, extended transmission, and built-in surge protection, this switch is well suited for CCTV systems, offices, shops, institutions, and other small-to-medium surveillance projects.

Key Features of Jovision JVS-S10-8P-120W 8 Port PoE Switch

8-Port PoE Output: Provides 8 × 10/100Mbps PoE ports for connecting and powering compatible IP cameras and other PoE devices.

120W PoE Power Budget: Supports a total PoE power output of up to 120W, with up to 30W available per PoE port under the supported PoE standard.

IEEE 802.3af/at Support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices for flexible PoE deployment.

2 Uplink Ports: Includes 2 × 10/100Mbps RJ45 uplink ports for connecting the switch to an NVR, router, or another network device.

AI Detection Mode: Intelligent PoE monitoring can detect abnormal connected-device conditions and help restart the affected PoE port automatically when supported by the operating mode.

VLAN & Port Isolation: Provides network isolation modes that help separate connected PoE devices and reduce unnecessary communication between camera ports.

Extend Transmission Mode: The extended transmission mode is designed for longer-distance surveillance deployments when suitable cabling and installation conditions are used.

Auto MDI/MDIX: Automatically detects cable connection characteristics, simplifying Ethernet installation without requiring specific cable types.

Wire-Speed Forwarding: Supports wire-speed data forwarding along with automatic MAC address learning and aging for efficient network traffic handling.

Electrical Protection: Includes over-current, over-voltage, short-circuit, surge, and ESD protection features to help protect connected equipment and the switch.

Where Can You Use Jovision JVS-S10-8P-120W?

Small & Medium CCTV Systems: Connect and power multiple PoE IP cameras from a centralized network switch.

Office Surveillance: Deploy cameras around entrances, reception areas, workspaces, corridors, and parking locations.

Retail Shops: Power IP cameras covering sales floors, entrances, counters, storage rooms, and other important areas.

Restaurants & Showrooms: Simplify camera installation by carrying both data and power through Ethernet cables.

Schools & Educational Institutions: Connect cameras around gates, corridors, classrooms, administrative areas, and common spaces.

Warehouses: Support surveillance cameras installed across storage areas, loading points, dispatch zones, and entrances.

Residential Security: Build a centralized PoE camera network for larger homes, apartment buildings, and residential compounds.

Small Commercial Projects: Use the switch in surveillance installations where 8 PoE camera connections are sufficient.

Buy Jovision JVS-S10-8P-120W 8 Port PoE Switch in Bangladesh

Looking for the Jovision JVS-S10-8P-120W 8 Port PoE Switch Price in Bangladesh? Asiabiz Technology offers Jovision PoE switches and CCTV networking products for home, office, retail, institutional, and commercial surveillance projects.

Before purchasing, check the total PoE power requirement of your cameras and other powered devices. It is also important to consider Ethernet cable quality, transmission distance, uplink connectivity, and the number of cameras you plan to install.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many PoE ports does the Jovision JVS-S10-8P-120W have?

A: It has 8 PoE ports for connecting compatible PoE IP cameras and network devices.

Q: What is the total PoE power budget of this switch?

A: The total PoE power budget is 120W, with up to 30W available on an individual PoE port under the supported standard.

Q: Which PoE standards are supported by the JVS-S10-8P-120W?

A: It supports IEEE 802.3af and IEEE 802.3at PoE standards.

Q: Can I connect an NVR to the Jovision JVS-S10-8P-120W?

A: Yes. One of the RJ45 uplink ports can be used to connect the PoE switch with an NVR or other network equipment.

Q: Does this PoE switch support AI detection?

A: Yes. The switch provides an AI detection mode that can help identify abnormal network or connected-device conditions and restart a PoE device when required.

Q: Does the JVS-S10-8P-120W support VLAN isolation?

A: Yes. It provides VLAN/port-isolation functionality to help separate connected PoE devices within a surveillance network.

Q: Can this switch be used for long-distance IP camera installation?

A: Yes. It provides an Extend mode designed for longer-distance PoE transmission, subject to suitable Ethernet cabling and installation conditions.

Q: What network speed do the ports support?

A: The eight PoE ports and two uplink ports are 10/100Mbps adaptive RJ45 interfaces.

Q: What is the price of Jovision JVS-S10-8P-120W 8 Port PoE Switch?

A: The price Jovision JVS-S10-8P-120W 8 Port PoE Switch around BDT 4,200 to BDT 5,200.
