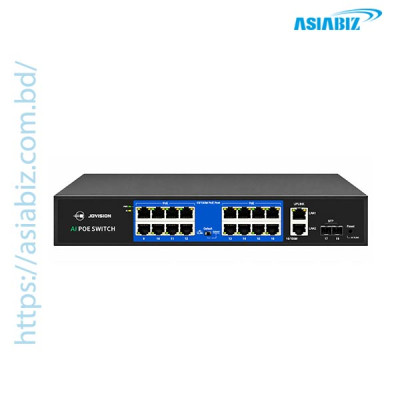

Jovision JVS-S19-16P-240W 16 Port PoE Switch

Description

Jovision JVS-S19-16P-240W 16 Port PoE Switch Price in BD

The Jovision JVS-S19-16P-240W 16 Port PoE Switch is a professional Ethernet switch designed for IP camera networks and other PoE installations. It features 16 × 10/100Mbps PoE ports, 2 × 1000Mbps RJ45 uplink ports, and 1 × 1.25G SFP port, providing flexible connectivity for CCTV and network equipment. With IEEE 802.3af/at support, up to 30W per PoE port, AI+ intelligent long-distance transmission, and 250-meter extended transmission capability under supported conditions, it is suitable for medium and large surveillance projects.

Key Features of Jovision JVS-S19-16P-240W 16 Port PoE Switch

16-Port PoE Connectivity: Provides 16 × 10/100Mbps PoE ports for connecting and powering compatible IP cameras and other PoE devices.

240W Power Supply: Uses a high-capacity 200W/240W power supply platform designed to support multiple connected PoE devices.

30W Per PoE Port: Supports up to 30W on an individual PoE port under IEEE 802.3af/at operation.

Gigabit RJ45 Uplinks: Includes 2 × 1000Mbps RJ45 cascade/uplink ports for high-speed connections to an NVR, router, or core network switch.

1.25G SFP Port: Provides a 1.25G standard SFP interface for compatible fiber-optic uplink connections.

AI+ Long-Distance Mode: The AI+ mode is designed to support intelligent long-distance data and PoE transmission for surveillance deployments.

Up to 250m Transmission: In extended transmission mode, compatible devices can be connected over distances of up to 250 meters when suitable cabling and installation conditions are used.

9.2Gbps Switching Capacity: Provides a listed switching capacity of 9.2Gbps with store-and-forward packet processing and a 2K MAC address table.

PoE Protection: Includes over-current, over-voltage, and short-circuit protection, along with high-power PD soft start and sequential boot features.

Plug-and-Play Operation: Automatic network functions simplify installation without requiring complicated manual configuration for standard deployments.

Where Can You Use Jovision JVS-S19-16P-240W?

Medium to Large CCTV Systems: Connect and power multiple PoE IP cameras through one centralized switch for organized surveillance networking.

Office Buildings: Deploy cameras across entrances, corridors, workspaces, reception areas, and parking zones.

Factories & Industrial Facilities: Support IP surveillance in production areas, warehouses, loading points, and facility perimeters.

Shopping Malls & Retail Centers: Connect cameras covering stores, walkways, entrances, storage rooms, and parking facilities.

Educational Institutions: Power cameras installed around gates, classrooms, corridors, administrative buildings, and campus areas.

Warehouses & Logistics Centers: Provide centralized PoE connectivity for cameras monitoring inventory, loading docks, dispatch areas, and restricted sections.

Long-Distance IP Camera Projects: Use the extended transmission mode for remote cameras where the network design and cabling support the required distance.

Buy Jovision JVS-S19-16P-240W PoE Switch in Bangladesh

Looking for the Jovision JVS-S19-16P-240W 16 Port PoE Switch Price in Bangladesh? Asiabiz Technology offers Jovision PoE switches and CCTV networking products for offices, factories, shops, institutions, warehouses, and professional surveillance projects in Bangladesh.

Before purchasing, check the total power requirements of all connected PoE devices, required uplink bandwidth, transmission distances, Ethernet cable quality, and whether an SFP fiber uplink is needed for your installation.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many PoE ports does the Jovision JVS-S19-16P-240W have?

A: It provides 16 × 10/100Mbps PoE ports for compatible IP cameras and other PoE devices.

Q: How much power can each PoE port provide?

A: Each PoE port supports up to 30W under the supported IEEE 802.3af/at standard.

Q: Which PoE standards does the JVS-S19-16P-240W support?

A: It supports IEEE 802.3af and IEEE 802.3at PoE standards.

Q: Does this switch have Gigabit uplink ports?

A: Yes. It has 2 × 1000Mbps RJ45 uplink ports and 1 × 1.25G SFP port.

Q: Can the switch be used for long-distance CCTV cameras?

A: Yes. Its AI+ long-distance mode can support transmission up to 250 meters under suitable cabling and supported installation conditions.

Q: Does the Jovision JVS-S19-16P-240W support fiber connectivity?

A: Yes. The built-in 1.25G SFP port can be used with a compatible fiber-optic transceiver.

Q: What is the switching capacity of this PoE switch?

A: The listed switching capacity is 9.2Gbps, with store-and-forward packet processing and a 2K MAC address table.

Q: Is this switch suitable for IP CCTV cameras?

A: Yes. Its 16 PoE ports, 30W per-port support, Gigabit uplinks, SFP interface, and long-distance mode make it suitable for medium and large IP surveillance systems.

Q: What is the price of Jovision JVS-S19-16P-240W 16 Port PoE Switch?

A: The price JVS-S19-16P-240W 16 Port PoE Switch around BDT 12,000 to BDT 14,000.
