| Hardware | ||
| PoE Ports | RJ45 Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 8 PoE Power Budget: 115 W |
|
| Interfaces | 8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX |
|
| Standards and Protocols | IEEE 802.3x Flow Control |
|
| Dimensions | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
|
| External Power Supply | External Power Adapter (Output: 54V/2.2A) |
|
| Switching Capacity | 5.6 Gbps |
|
| Max Power Consumption | 3.79W（220 V / 50 Hz, no PD connected） 130.49W（220 V / 50 Hz, with 115W PD connected |
|
| Performance | ||
| Packet Forwarding Rate | 10/100 Mbps at Half Duplex 20/200 Mbps at Full Duplex |
|
| Others | ||
| Package Contents | • 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP) • Power Adapter • Quick Installation Guide |
|
| Environment | Operating Temperature: -10℃~40℃ (14℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing |
|

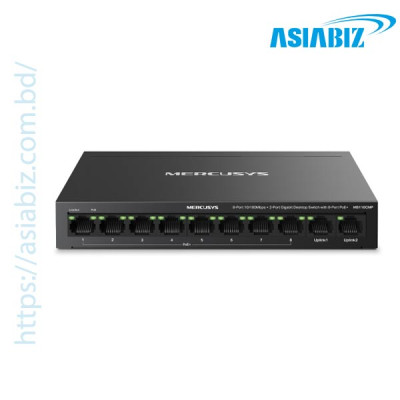

Looking for a powerful PoE switch for CCTV camera
in Bangladesh that can handle large surveillance setups? The Mercusys MS110CMP
8-Port PoE Gigabit + 2-Port Desktop Switch is a high-capacity networking
solution designed for offices, shops, and security systems. With 8 PoE+ ports,
2 Gigabit uplink ports, and a massive 115W power budget, this PoE switch
Bangladesh users prefer ensures stable performance for multiple IP cameras and
devices. If you are searching for the best PoE switch price in BD 2026, this
model is perfect for medium to large CCTV installations.
8 PoE+ Ports
for Large CCTV Systems: Connect and power up to 8 IP cameras or PoE devices
with a single cable—ideal for complete surveillance coverage.
High Power
Budget (115W Total Output): Supports up to 30W per port and 115W total,
ensuring reliable performance for multiple high-power devices.
2 Gigabit
Uplink Ports for Faster Data Transmission: Dedicated uplink ports provide
stable, high-speed connection to NVR and router without congestion.
Long Range
PoE up to 250m: Extend Mode allows long-distance camera installation—perfect
for factories, parking areas, and warehouses.
Isolation
Mode for Secure CCTV Network: Separates traffic between ports to enhance
security and prevent network interference.
PoE Auto
Recovery for 24/7 Monitoring: Automatically reboots disconnected devices,
ensuring uninterrupted surveillance.
Plug &
Play with Durable Metal Body: No configuration needed—just connect and use.
The metal casing ensures long-lasting performance and silent operation.
Mercusys is a trusted global networking brand known
for affordable and reliable products in Bangladesh. The MS110CMP is ideal for
users looking for a high-capacity PoE switch for IP camera Bangladesh with
strong power output and multiple ports. Whether for office, warehouse, or large
home security systems, it delivers excellent performance. Get the best price in
BD 2026 only at Asiabiz Technology, your trusted source for CCTV and networking
equipment.
Frequently
Asked Questions (FAQs)
Q: How many
CCTV cameras can this switch support?
A: It
supports up to 8 PoE cameras directly, making it ideal for medium to large CCTV
setups.
Q: What is
the power capacity of this PoE switch?
A: It
has a 115W total power budget, with up to 30W per port.
Q: What are
the 2 extra Gigabit ports used for?
A: They
are uplink ports used to connect your router and NVR for faster and stable data
transmission.
Q: Does it
support long-distance CCTV installation?
A: Yes,
Extend Mode supports up to 250 meters, perfect for large properties.
Q: Is this
switch easy to install?
A: Yes, it is completely plug-and-play, so no technical setup is required.
