| Hardware | ||
| PoE Ports | RJ45 Ports • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 111 W |
|
| Interfaces | • 8× 10/100/1000 Mbps PoE+ Ports • 2× 1000 Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|
| Dimensions | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
|
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
|
| External Power Supply | External Power Adapter (Output: 54VDC / 2.22A) |
|
| Physical Security Lock | Yes | |
| Switching Capacity | 20 Gbps |
|
| Max Power Consumption | • 7.37 W (220V / 50Hz with no PD connected) • 129.4 W (220V / 50Hz with 111 W PD connected) |
|
| Software | ||
| Transfer Method | Store-And-Forward | |
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • MAC Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
|
| Performance | ||
| Packet Forwarding Rate | 14.88 Mpps |
|
| Others | ||
| Certifications | CE, RoHS |
|
| Package Contents | • MS110GMP • Power Adapter • Installation Guide |
|
| Environment | • Operating Temperature: -10℃~40℃ (14℉~104℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
|
Looking for a high-performance PoE switch for CCTV
camera in Bangladesh that can handle large surveillance and networking setups?

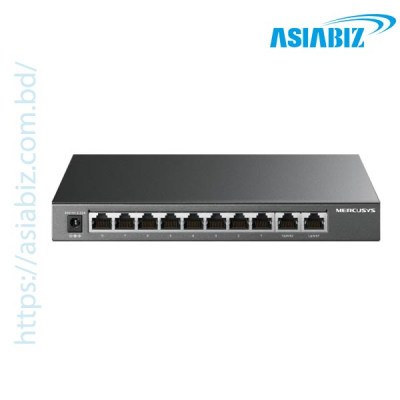

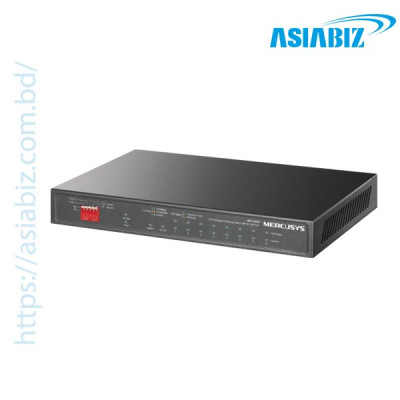

The Mercusys MS110GMP 10-Port PoE Gigabit + 8-Port Desktop Switch is a powerful
solution built for offices, warehouses, and commercial security systems. With 8
PoE+ ports, 2 Gigabit uplink ports, and a strong 111W power budget, this PoE
switch Bangladesh users trust ensures stable and efficient performance for
multiple IP cameras and devices. If you're searching for the best PoE switch
price in BD 2026, this model offers excellent value for medium to large
installations.
8 PoE+ Ports
for Complete CCTV Setup: Connect and power up to 8 IP cameras or PoE
devices with a single cable—perfect for full surveillance coverage.
High Power
Budget (111W Total Output): Supports up to 30W per port, ensuring reliable
power supply for multiple high-performance devices.
2 Gigabit
Uplink Ports for Stable Network: Dedicated uplink ports provide smooth data
transmission to NVR and router without congestion.
Long-Range
Transmission up to 250m: Extend Mode allows long-distance
installation—ideal for large buildings, parking areas, and factories.
Isolation
Mode for Secure Surveillance Network: Separates traffic between ports to
enhance network stability and prevent interference.
PoE Auto
Recovery for 24/7 Monitoring: Automatically reboots disconnected devices to
ensure uninterrupted security coverage.
Priority
Ports for Critical Devices: Ensures important cameras or devices get
priority bandwidth for smooth video streaming.
Plug &
Play with Durable Metal Design: No configuration needed—easy setup with
long-lasting, silent metal casing.
Mercusys is a reliable global networking brand
known for affordable yet powerful solutions in Bangladesh. The MS110GMP is
ideal for users who need a high-capacity PoE switch for IP camera Bangladesh,
offering more ports and stronger power output than standard switches. Whether
for office, shop, or industrial CCTV setups, it delivers stable and long-term
performance. Get the best price in BD 2026 only at Asiabiz Technology, your
trusted source for CCTV and networking products.
Frequently
Asked Questions (FAQs)
Q: How many
CCTV cameras can this switch support?
A: It
supports up to 8 PoE cameras directly, plus 2 uplink ports for NVR and router.
Q: What is
the power capacity of this switch?
A: It
has a 111W total PoE power budget, with up to 30W per port.
Q: What are
the 2 extra Gigabit ports used for?
A: They
are uplink ports used to connect your router and NVR for faster data
transmission.
Q: Does it
support long-distance CCTV installation?
A: Yes,
Extend Mode allows up to 250 meters transmission distance.
Q: Is this
switch easy to install?
A: Yes, it is completely plug-and-play, so no configuration is required.
Get specific details about this product from customers who own it.
| Hardware | ||
| PoE Ports | RJ45 Ports • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 111 W |
|
| Interfaces | • 8× 10/100/1000 Mbps PoE+ Ports • 2× 1000 Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|
| Dimensions | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
|
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
|
| External Power Supply | External Power Adapter (Output: 54VDC / 2.22A) |
|
| Physical Security Lock | Yes | |
| Switching Capacity | 20 Gbps |
|
| Max Power Consumption | • 7.37 W (220V / 50Hz with no PD connected) • 129.4 W (220V / 50Hz with 111 W PD connected) |
|
| Software | ||
| Transfer Method | Store-And-Forward | |
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • MAC Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
|
| Performance | ||
| Packet Forwarding Rate | 14.88 Mpps |
|
| Others | ||
| Certifications | CE, RoHS |
|
| Package Contents | • MS110GMP • Power Adapter • Installation Guide |
|
| Environment | • Operating Temperature: -10℃~40℃ (14℉~104℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
|
Looking for a high-performance PoE switch for CCTV
camera in Bangladesh that can handle large surveillance and networking setups?
The Mercusys MS110GMP 10-Port PoE Gigabit + 8-Port Desktop Switch is a powerful
solution built for offices, warehouses, and commercial security systems. With 8
PoE+ ports, 2 Gigabit uplink ports, and a strong 111W power budget, this PoE
switch Bangladesh users trust ensures stable and efficient performance for
multiple IP cameras and devices. If you're searching for the best PoE switch
price in BD 2026, this model offers excellent value for medium to large
installations.
8 PoE+ Ports
for Complete CCTV Setup: Connect and power up to 8 IP cameras or PoE
devices with a single cable—perfect for full surveillance coverage.
High Power
Budget (111W Total Output): Supports up to 30W per port, ensuring reliable
power supply for multiple high-performance devices.
2 Gigabit
Uplink Ports for Stable Network: Dedicated uplink ports provide smooth data
transmission to NVR and router without congestion.
Long-Range
Transmission up to 250m: Extend Mode allows long-distance
installation—ideal for large buildings, parking areas, and factories.
Isolation
Mode for Secure Surveillance Network: Separates traffic between ports to
enhance network stability and prevent interference.
PoE Auto
Recovery for 24/7 Monitoring: Automatically reboots disconnected devices to
ensure uninterrupted security coverage.
Priority
Ports for Critical Devices: Ensures important cameras or devices get
priority bandwidth for smooth video streaming.
Plug &
Play with Durable Metal Design: No configuration needed—easy setup with
long-lasting, silent metal casing.
Mercusys is a reliable global networking brand
known for affordable yet powerful solutions in Bangladesh. The MS110GMP is
ideal for users who need a high-capacity PoE switch for IP camera Bangladesh,
offering more ports and stronger power output than standard switches. Whether
for office, shop, or industrial CCTV setups, it delivers stable and long-term
performance. Get the best price in BD 2026 only at Asiabiz Technology, your
trusted source for CCTV and networking products.
Frequently
Asked Questions (FAQs)
Q: How many
CCTV cameras can this switch support?
A: It
supports up to 8 PoE cameras directly, plus 2 uplink ports for NVR and router.
Q: What is
the power capacity of this switch?
A: It
has a 111W total PoE power budget, with up to 30W per port.
Q: What are
the 2 extra Gigabit ports used for?
A: They
are uplink ports used to connect your router and NVR for faster data
transmission.
Q: Does it
support long-distance CCTV installation?
A: Yes,
Extend Mode allows up to 250 meters transmission distance.
Q: Is this
switch easy to install?
A: Yes, it is completely plug-and-play, so no configuration is required.
Get specific details about this product from customers who own it.
