| Camera | ||
| Image Sensor | 1/2.7"CMOS |
|
| Smart IR | Yes | |
| Min. Illumination | Color:0.001Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
| Shutter Time | 1s~1/100000s |
|
| Day&Night | IR-cut filter with auto Switch (ICR) |
|
| WDR | WDR |
|
| S/N | >52dB |
|
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
|
| Warranty | ||
| Warranty | 01 Year Official Warranty | |
| Lens | ||
| Lens Type | Fixed focal lens |
|
| Focal Length | 4mm | |
| Lens Mount | M12 |
|
| Aperture Type | Fixed | |
| Aperture Range | F1.6 |
|
| Field of View | 95.1°(H); 49.2°(V); 111.1°(D) |
|
| DORI Distance | Detect:80.0m Observe:31.8m Recognize:16.0m Identify:8.0m |
|
| Illuminator | ||
| IR LEDs | 2 | |
| IR Distance | Up to 30m |
|
| Wavelength | 850nm |
|
| White LEDs | 2 |
|
| Whitelight Distance | Up to 15m |
|
| Compression Standard | ||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
|
| Video Bit Rate | 32k~6Mbps |
|
| Audio Compression | G.711A/G.711U |
|
| Audio Sampling Rate | 8kHz | |
| Image | ||
| Max. Resolution | 6MP,3200×1800@30fps |
|
| Main Stream | PAL:25fps(3200x1800,2880x1620,2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:30fps(3200x1800,2880x1620,2560×1440, 2304×1296, 1920×1080, 1280×720) |
|
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
|
| Back Light Compensation(BLC) | Yes | |
| Automatic Gain Control(AGC) | Yes | |
| 3D DNR | Yes | |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
| On-Screen Display(OSD) | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters; 16*16/32*32/48*48/64*64/96*96; Lattice |
|
| Defog | Yes | |
| Feature | ||
| General Alarm | Smart Alarm(human and vehicle detection) |
|
| Exceptions Alarm | IP Address Conflict |
|
| Network | ||
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
|
| System Compatibility | P2P(Mutually exclusive with Onvif); ONVIF(Profile S/T) ; SDK; CGI; Milestone |
|
| Remote Connection | ≤2 |
|
| Client | Easy7 VMS |
|
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
| Interface | ||
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
|
| Built-in Mic | 1×Built-in Mic |
|
| General | ||
| Web Client Language | 12 languages English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese |
|
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
|
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
|
| Power Supply | PoE:IEEE 802.3af,Max. 5W |
|
| Protection | Surge4000V; ESD6000V; IP67 |
|
| Boundary Dimensions | 164(L)73(W)73(H)mm |
|
| Package Dimensions | 180(L)90(W)95(H)mm |
|
| GrossWeight | 0.3kg | |

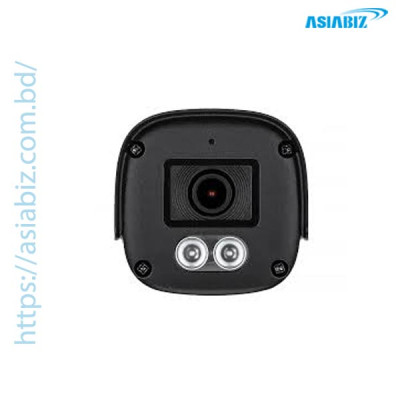

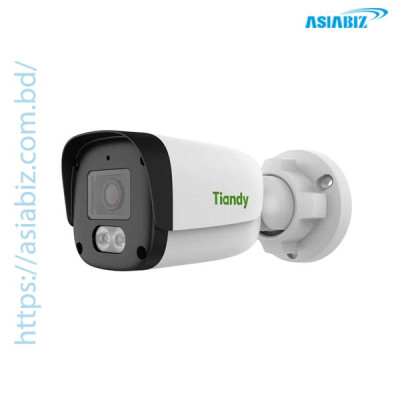

The Tiandy TC-C36QN 2ENA-4 6MP Color Maker Bullet
IP Camera delivers 3200 × 1800 video resolution for detailed security
monitoring. Its fixed bullet design makes it a practical choice for entrances,
shopfronts, warehouses and building perimeters in Bangladesh. Tiandy specifies
a maximum frame rate of 30fps for this model series.
Equipped with a 4mm lens, built-in microphone,
human and vehicle detection, and PoE support, it combines video, audio and
intelligent alerts in one camera. Infrared illumination up to 30 metres,
white-light illumination up to 15 metres and IP67 protection support outdoor
monitoring after dark.
6MP Video
Quality: Capture detailed footage for reviewing activity. For useful
identification, position the camera close enough to the priority area rather
than relying on digital enlargement of distant subjects.
4mm Fixed
Lens: Provides a consistent viewing angle. Set the direction during
installation to keep the entrance, counter or access route within view.
Color Maker
with Infrared and White Light: White LEDs support colour footage in dark
scenes, while infrared provides black-and-white night monitoring.
Built-in
Microphone: Captures audio alongside video.
Human and
Vehicle Detection: Smart alarms identify these target categories.
PoE
Installation: IEEE 802.3af support allows compatible equipment to supply
power and data through one Ethernet cable.
Efficient
Video Compression: Supports S+265, H.265 and H.264.
Adjustment and Outdoor Protection: Includes WDR, 3D noise reduction,
backlight compensation, highlight compensation, defog and IP67-rated housing.
Pros: Detailed
imaging for fixed-area monitoring. Audio capture without a separate microphone.
Single-cable installation with suitable PoE equipment. Human and vehicle alerts
Cons: Fixed
lens; no remote pan, tilt or optical zoom. Requires network cabling and compatible
power equipment. Colour footage in darkness may need visible illumination. Recording
retention depends on the storage system and settings.
This model suits installations that need a
consistent view of a defined area. At a warehouse, prioritise the loading
entrance or stock-access point. At a shop, choose an angle that captures people
approaching the doorway without a bright outdoor background dominating the
scene.
Plan the recorder alongside the camera. Check that
your NVR supports the required resolution, frame rate, video format and audio
recording. A camera may connect successfully while some smart-event functions
remain unavailable on a different recorder.
Before completing installation, review both daytime
and nighttime footage. Nearby walls, reflective signs and roof edges can affect
illumination. Protect the network connection from weather as part of the
installation.
Asiabiz Technology provides the best after sell
service to clients. You can get the best support almost anytime by contact in
our hotline at ‘09678221422’ or our sales and technical team’s number
at01404-466160-61-62-63-66. We believe that providing the best service helps
build strong relationships with our clients.
Q: Does it
support two-way talk?
A: The
specification lists a microphone, but does not list a built-in speaker. Treat
it as an audio-capture camera rather than a two-way intercom.
Q: Is this a
Wi-Fi camera?
A: It
uses wired Ethernet networking.
Q: Can I
connect it to another brand’s NVR?
A: ONVIF
Profiles S/T are listed. Confirm compatibility and available functions; the
specification also notes that P2P and ONVIF are mutually exclusive.
Q: Does
30-metre night vision guarantee face identification at that distance?
A: No.
Illumination range describes lighting reach. Recognisable detail depends on
subject size, distance, movement, exposure and viewing angle.
Q: Will it
work with a 5MP-only NVR at full resolution?
A: Full-resolution
recording requires an NVR that accepts the camera’s 6MP stream. A
lower-resolution stream may be usable if supported by both devices.
Q: What is
the price of Tiandy TC-C36QN 2ENA-4
IP Camera?
A: The price Tiandy TC-C36QN 2ENA-4 IP Camera around BDT 5,500 to BDT 6,500.
Get specific details about this product from customers who own it.
