| Wardware Features | ||
| PoE Ports (RJ45)I | Standard: 802.3 af/at compliant PoE Ports: Ports 1–8, up to 30 W PoE output per port Power Supply: 63 W |
|
| nterface | 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) AUTO Negotiation AUTO MDI/MDIX |
|
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) | |
| Max. Power Consumption | 3.67 W (220 V/50 Hz no PD connected) 73.24 W (220 V/50 Hz with 63 W PD connected) |
|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
|
| Fan Quantity | Fanless | |
| Dimensions ( W x D x H ) | 6.7×3.9×1.1 in (171×98×27 mm) | |
| Performance | ||
| Switching Capacity | 1.8 Gbps | |
| Packet Forwarding Rate | 1.3392 Mpps | |
| Software Features | ||
| Advanced Features | Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) Isolation Mode Button (Ports 1–8) PoE Auto Recovery Button (Ports 1–8) Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control Green Technology |
|
| Transmission Method | Store and Forward | |
| Others | ||
| Certification | CE, FCC, RoHS | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
| Warranty | ||
| Warranty | 01 Year warranty | |

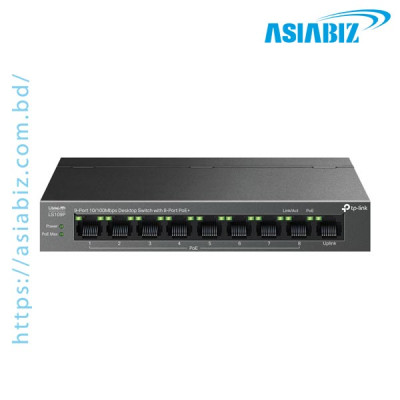

The TP-Link LS109P 8-Port PoE+ Switch is a powerful
and efficient PoE network switch designed for CCTV camera systems, IP camera
setups, and small-to-medium office networks in Bangladesh. It features 9× Fast
Ethernet ports including 8× PoE+ ports, allowing both power and data
transmission through a single Ethernet cable—making installation faster and
cleaner. With a 63W PoE budget, up to 250m extended transmission, and
intelligent PoE auto recovery, this switch is perfect for users searching for
the best PoE switch price in BD 2026 or a reliable CCTV PoE switch in
Bangladesh. It supports IEEE 802.3af/at standards with up to 30W per port,
ensuring stable performance for IP cameras and networking devices.
8 PoE+ Ports
for CCTV & Networking Devices: Power up to 8 IP cameras, access points,
or VoIP phones directly through Ethernet cables—no extra adapters needed.
63W Total
PoE Power Budget: Supports up to 30W per port, ensuring stable power
delivery for high-performance devices.
Long-Range
Transmission up to 250m: Extend Mode allows long-distance data and power
transmission—ideal for large buildings and outdoor CCTV installations.
PoE Auto
Recovery (Smart Reboot Feature): Automatically detects and restarts
unresponsive IP cameras, reducing downtime and maintenance hassle.
Isolation
Mode for Better Security: Separates traffic between ports to prevent
network congestion and enhance security.
Plug &
Play – No Configuration Required: Simple installation—just connect devices
and start using instantly without any technical setup.
Durable
Metal Body & Silent Operation: Fanless design ensures quiet performance
and long-lasting durability for continuous operation.
The TP-Link LS109P PoE+ switch is one of the most
reliable and affordable solutions in Bangladesh for CCTV networking and IP
camera installations. It simplifies deployment by combining power and data in a
single cable, saving both time and cost. If you are searching for the best PoE
switch price in BD 2026, the TP-Link LS109P 9-Port PoE+ Switch is available at
the best price in BD 2026 from Asiabiz Technology, your trusted source for CCTV
cameras, IP cameras, routers, switches, DVR, NVR, and networking accessories in
Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the TP-Link LS109P price in BD 2026?
A: The
TP-Link LS109P price in Bangladesh typically ranges from ৳4,200 – ৳4,500,
depending on stock and availability.
Q: Is this
switch good for CCTV camera systems?
A: Yes,
it is ideal for IP camera setups, especially medium-sized surveillance systems
with multiple cameras.
Q: How many
PoE devices can it support?
A: It
supports up to 8 PoE+ devices simultaneously via its dedicated PoE ports.
Q: Does it
support Gigabit speed?
A: No,
it supports 10/100Mbps Fast Ethernet, which is sufficient for most CCTV
applications.
Q: Which is
the best PoE switch for CCTV in BD 2026?
A: The TP-Link LS109P is one of the best budget PoE switches in Bangladesh for CCTV and security networking.
