| Technical Specification | ||
| Fingerprint Capacity | 3,000 (Optional: 5,000) | |
| Card Capacity | 10,000 (1: N) | |
| Transaction Capacity | 100,000 (Optional: 200,000) | |
| Sensor | N/A | |
| Algorithm Version | ZKFace V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional) |
|
| Communication | TCP/IP*1 Wi-Fi (IEEE802.11b/g/n/ax)) @ 2.4 GHz (Optional) Electric Lock*1, Door Sensor*1, Exit Button*1 |
|
| Access Control Interface | N/A | |
| Wiegand Signal | N/A | |
| Display | 2.8"@ TFT Color LCD Screen (240*320) | |
| Interface Styles | N/A | |
| Standard Function | ADMS, DST, Work Code, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Tamper Switch Alarm, Multiple Verification Methods, T9 Keyboard (Input), HTTPs / SSH Backend Access, Schedule Bell, Automatic Status Switch | |
| Optional Function | 125KHz ID Card (EM) / 13.56MHz IC Card / 125 kHz & 13.56 MHz Dual Frequency ID & IC Card, Wi-Fi | |
| Power Supply | DC 12V 1.5A | |
| Operating Temperature | 0°C to 45°C | |
| Operating Humidity | 20% to 80% RH (Non-condensing) | |
| Dimension (WxDxH) | 170mm*138mm*38.55mm (L*W*H) | |
| Aux. Input | N/A | |
| Functions | YES | |
| SDK and software | On-Premise Software: ZKBio Time / ZKBio CVAccess (TA Module) Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile APP) |
|
| Battery Backup | N/A | |

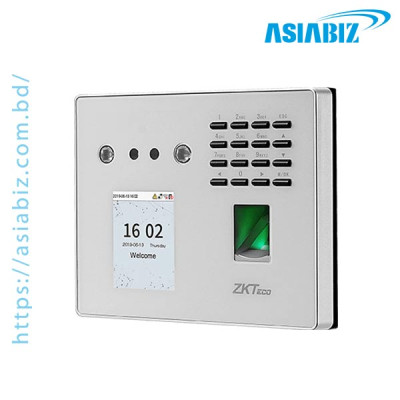

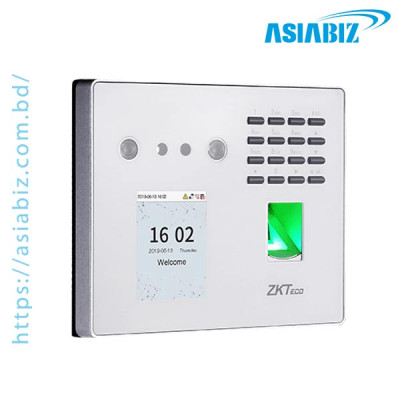

The ZKTeco MB560-VL
Multi-Biometric Identification Access Control Terminal is an advanced biometric
security and time attendance terminal designed for modern workplaces, offices,
factories, schools, hospitals, and commercial buildings across Bangladesh. It
combines high-speed visible-light facial recognition, 3D neuron fingerprint
authentication, and multi-mode access optione including face, fingerprint, RFID
card (optional), and password to deliver fast, secure, and touchless
verification. With scalable capacity and flexible connectivity (TCP/IP,
USB-Host, optional Wi-Fi), the MB560-VL is ideal for users searching for an
access control system price in BD 2025 and AI-powered multi-biometric security
solutions that support attendance tracking, secure door access, and
comprehensive workforce management.
Visible-Light
Facial Recognition (0.3 m–2 m): Equipped with ZKTeco’s visible light facial
recognition technology, the MB560-VL identifies users from 30 cm up to 2 m with
quick touchless authentication — ideal for secure, contactless entry in busy
environments.
Advanced
Deep-Learning & Anti-Spoofing: Built-in deep learning algorithms
significantly enhance pose angle tolerance and anti-spoofing protection,
reducing false identifications from photos, videos, or masks.
Multi-Biometric
Verification: Supports face, fingerprint, RFID card (optional), and
password verification modes — giving you flexible security policies tailored to
your facility’s needs.
Large
Storage & Log Capacity: Stores up to 3,000 face templates, 3,000
fingerprints, and 10,000 optional cards, with support for up to 100,000 log
records — scalable for medium to large organizations.
High-Performance
Hardware: Powered by a 900 MHz dual-core CPU, 512 MB RAM, and 8 GB ROM,
plus a 2 MP WDR low-light camera with adjustable LED lighting, the MB560-VL
delivers stable performance even in challenging lighting conditions.
User-Friendly
Display & Interface: Includes a 2.8″ TFT color screen and intuitive
navigation for easy on-device configuration, user enrollment, and status
monitoring.
Flexible
Communication & Integration: Supports TCP/IP, optional Wi-Fi, and
USB-Host interfaces for easy data transfer and integration with networked
access systems or attendance software like ZKBio Time.
Full Access
Control Support: Integrates with electric locks, door sensors, exit
buttons, and alarms, enabling full access control deployment alongside
attendance tracking.
Standard
Intelligent Functions: Includes ADMS, Work Code, DST support, automatic
status switch, photo ID, schedule bell, T9 input, and multiple user IDs,
helping streamline HR workflows and attendance reporting.
The ZKTeco MB560-VL is a cutting-edge
multi-biometric Access control and time attendance terminal that delivers high
accuracy, rapid identification, and enhanced security — all at a competitive
access control system price in BD 2025. Its combination of visible-light facial
recognition, powerful fingerprint algorithm, and flexible authentication makes
it a fitting choice for medium to large enterprises, educational campuses, and
high-traffic facilities requiring precise security and workforce tracking solutions.
Available at Asiabiz Technology with authentic products, official warranty,
nationwide delivery, and dedicated local support in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the price of ZKTeco MB560-VL in BD 2025?
A: Pricing
varies by retailer and configuration. Typical retail prices are around ৳17,500 – ৳19,500
depending on stock and optional features.
Q: How many
users does the MB560-VL support?
A: It
supports up to 3,000 face templates, 3,000 fingerprints, and up to 10,000 RFID card
records (optional).
Q: Can it
integrate with access control hardware?
A: Yes.
It supports interfaces for electric locks, door sensors, exit buttons, and
alarms for complete access control deployment.
Q: Does it
require network connectivity?
A: No the
terminal works standalone but also supports TCP/IP, USB-Host, and optional
Wi-Fi for real-time integration with software systems.
Q: Is the
facial recognition secure against spoofing?
A: Yes. Built-in deep learning and anti-spoofing algorithms protect against attacks using photos, videos, and masks.
