| Camera | ||
| Image Sensor | 1/2.9" CMOS | |
| Resolution | 2304 (H) × 1296 (V) | |
| Illumination Distance | Up to 20 m (65.62 ft) (Warm light) | |
| Illuminator Number | 4 (Warm light) | |
| Angle Adjustment | Pan: 0° to 350° Tilt: 0° to 90° |
|
| Lens | ||
| Lens Type | Fixed-focal | |
| Focal Length | 3.6 mm | |
| Max. Aperture | F1.0 | |
| Field of View | H: 81°; V: 44°; D: 95° | |
| Video | ||
| Video Compression | H.265 | |
| Video Frame Rate | Main stream: 2304 × 1296@(1–15 fps) | |
| Video Bit Rate | H.265: 32 kbps–4096 kbps | |
| Audio | ||
| Built-in MIC | Yes, built-in Mic | |
| Network | ||
| Network Port | RJ-45 (10/100 Base-T) | |
| Storage | Micro SD card (support max 512 GB) | |
| Management Software | DMSS | |
| Mobile Client | iOS;Android | |
| Power | ||
| Power Supply | USB (5 VDC±5%, 2 A) | |
| Power Consumption | Performance Mode: 1.22 W AOV Mode: 0.08 W Ultra Power Saving Mode: 0.008 W |
|
| Environment | ||
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) | |
| Operating Humidity | ≤95% (RH), non-condensing | |
| Protection | IP66 | |
| Structure | ||
| Casing Material | Plastic | |
| Product Dimensions | 179.3 mm × 144.6 mm × 268.8 mm (7.06" × 5.69" × 10.58") (L × W × H) | |
| Weight | 0.76 kg (1.68 lb) | |
| Warranty | ||
| Warranty | 01 Year Warranty | |

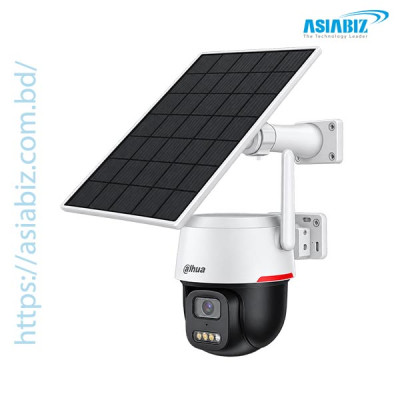

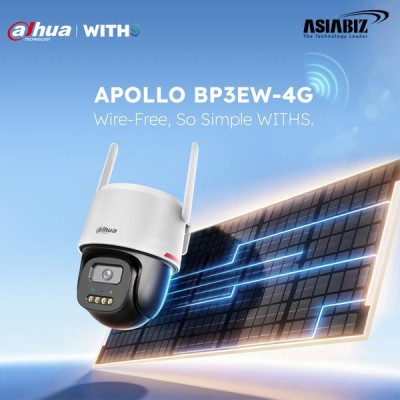

The Dahua APOLLO BP3EW-4G combines 3MP 2K imaging,
4G connectivity, a 10000mAh rechargeable battery and an 8W solar panel for
outdoor security monitoring. Its 350° pan and 90° tilt let you adjust the
viewing direction, while 512GB microSD support provides local recording
storage.
Designed for locations with limited access to
electricity and broadband, this camera brings together WizColor night imaging,
AOV recording, and AI human and vehicle detection. It is particularly relevant
to farm entrances, construction sites and remote properties where running power
and network cables would be difficult.
3MP 2K
Video: Records at 2304 × 1296, with a 3.6mm F1.0 lens and H.265
compression.
Solar
Charging and Battery Storage: An 8W solar module works with the
10000mAh/36Wh battery. USB charging is also supported.
4G and
Ethernet Connectivity: Supports mobile-network access and includes a
10/100Mbps RJ45 port.
Motorised
Pan and Tilt: Adjust the camera horizontally and vertically to inspect
different areas.
Audio and
Local Storage: Includes a built-in microphone and speaker, microSD support
up to 512GB, and DMSS management for Android and iOS.
Outdoor
Protection: IP66-rated housing, with warm-light illumination reaching up to
20 metres.
AOV
Recording with Adaptive Frame Rate: Always-on Video mode records quiet
scenes at a reduced frame rate to conserve energy, then increases the frame
rate when movement is detected. This is different from recording every moment
at a constant high frame rate.
WizColor
Low-Light Imaging: WizColor helps retain colour detail under low ambient
lighting, reducing dependence on additional illumination.
AI Human and
Vehicle Detection: Distinguishes human and vehicle targets to help
prioritise relevant activity.
Secured SIM
and Memory Cards: The SIM and SD cards sit inside the camera with dedicated
screw protection.
Pros: Suitable
for locations without convenient mains power. Mobile connectivity reduces
dependence on broadband.
AOV recording provides context between detected
events. Human and vehicle detection supports more focused monitoring.
Cons: Remote
access requires suitable mobile coverage and data. Solar charging varies with
installation conditions. Battery runtime depends on settings and usage. One
moving lens cannot observe every direction simultaneously.
The APOLLO BP3EW-4G suits an installation where
access to power and internet is the main challenge. Before choosing a mounting
position, check mobile signal strength and the solar panel’s exposure to
sunlight throughout the day.
For a farm or construction site, prioritise the
entrance, access road or equipment area. Avoid mounting too far from the
subject simply to capture a wider overview. Pan-and-tilt movement helps you
inspect different directions, but the camera records only the direction its
lens currently faces.
Solar performance depends on sunlight, shading,
weather and camera activity. Review the battery level during the first few
days, especially if the scene has frequent movement or you regularly use live
viewing.
Asiabiz Technology provides the best after sell
service to clients. You can get the best support almost anytime by contact in
our hotline at ‘09678221422’ or our sales and technical team’s number
at01404-466160-61-62-63-66. We believe that providing the best service helps
build strong relationships with our clients.
Q: Does the
camera need a Wi-Fi router?
A: It
can connect through a compatible 4G SIM with an active data plan. Confirm
carrier compatibility and coverage at the installation site.
Q: Does AOV
mean continuous full-frame-rate recording?
A: No.
It uses a lower frame rate during quiet periods and increases it when motion is
detected.
Q: Will it
operate at night without sunlight?
A: The
battery supplies power when solar energy is unavailable. Actual endurance
depends on its charge level, recording mode and activity.
Q: How much
mobile data will it consume?
A: Usage
varies with live-viewing time, video quality, remote playback and other network
activity. Monitor initial consumption before choosing a long-term data package.
Q: Is it
suitable for reading vehicle number plates?
A: Vehicle
detection does not mean automatic number-plate recognition. Readability depends
on distance, lighting, movement and camera angle.
Q: What is
the price of Dahua APOLLO BP3EW-4G
PT IP Camera?
A: The price Dahua APOLLO BP3EW-4G PT IP Camera around BDT 11,500 to BDT 12,500.
Get specific details about this product from customers who own it.
