| General Information | ||
| Power Supply | 12 VDC, 1.5 A |
|
| Power Consumption | ≤ 10 W |
|
| Working Temperature | -10 to +55º C (+14 to +131º F) |
|
| Working Humidity | 10% to 90% |
|
| Dimension | 265 × 223 × 48 mm (10.4" × 8.8" × 1.9") |
|
| Video and Audio | ||
| Video Input | 4-ch Up to 6 MP resolution | |
| Bandwidth | 40 Mbps |
|
| HDMI Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| Video Output Mode | HDMI/VGA simultaneous output |
|
| Decoding | ||
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
|
| Recording Resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
| Decoding Capability | 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps) |
|
| Synchronous Playback | 4-ch |
|
| Network | ||
| Remote Connection | 16 |
|
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
|
| Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
|
| Auxiliary Interface | ||
| SATA | 1 SATA interface |
|
| Capacity | Up to 6TB capacity for each disk |
|
| Alarm In/Out | N/A |
|
| USB Interface | Rear panel: 2 × USB 2.0 |
|

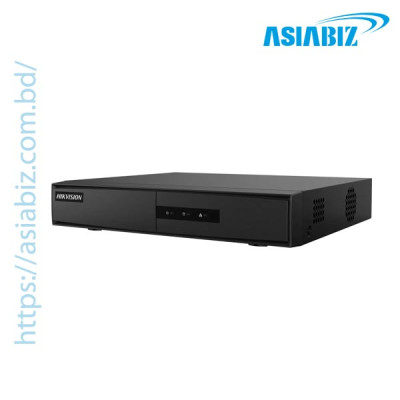

The Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR
is a practical recorder for users who want a simple and reliable way to manage
a small IP camera system at home, in a shop, office, or small business.
Hikvision officially positions this model as a 4-channel Mini 1U NVR in its
value series, built for users who need stable network video recording, HDMI and
VGA output, and support for modern H.265 video compression. If you are looking
for a 4 channel NVR in Bangladesh, a Hikvision NVR for IP camera, or a mini NVR
for home and office CCTV, the DS-7104NI-Q1/M is a strong option. Hikvision
lists support for up to 4 network camera inputs, up to 6 MP recording
resolution, 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth, which
makes it suitable for small to medium IP surveillance setups. One of the
biggest advantages of this model is its practical balance of size and
performance. Hikvision states that it supports H.265+/H.265/H.264+/H.264 video
compression, which helps reduce storage use compared with older compression
methods. It also supports 4-channel 1080p decoding, or 2-channel 4 MP, or
1-channel 6 MP decoding, which gives users enough playback performance for
typical small CCTV systems. The DS-7104NI-Q1/M is also useful for users who
want a compact recorder that still covers the basics well. Hikvision lists HDMI
and VGA simultaneous output, 1 SATA interface with up to 6TB capacity, 2 rear
USB 2.0 ports, and Hik-Connect support for easier remote management. That makes
it a good fit for users who want a simple, modern NVR without needing a larger
multi-bay recorder. The price of Hikvision DS-7104NI-Q1/M NVR is around BDT 5,000
to BDT 5,900.
Supports up
to 4 IP cameras: Hikvision lists 4-channel IP video input support with
camera resolution up to 6 MP.
H.265+/H.265
video compression: Helps reduce storage and bandwidth usage for everyday
surveillance recording.
40 Mbps
incoming bandwidth: Suitable for small IP camera systems that need stable
network recording performance.
HDMI and VGA
simultaneous output: Lets users connect the recorder to common monitors and
displays more easily.
4-ch 1080p
decoding capability: Supports smooth playback for small surveillance
systems.
1 SATA bay
supports up to 6TB HDD: A practical choice for small to medium recording storage
needs.
Hik-Connect
remote access support: Useful for users who want easier remote monitoring
and system management.
The Hikvision DS-7104NI-Q1/M is a smart choice for
users who need a compact and dependable 4 channel NVR for IP cameras. Its
combination of H.265+ compression, 6 MP support, 40 Mbps incoming bandwidth,
HDMI/VGA output, and up to 6TB storage support makes it suitable for homes,
offices, shops, and small business CCTV projects. It is available at Asiabiz Technology, where customers can get genuine security products, competitive
pricing, and trusted support.
Use Cases: This
NVR is ideal for home IP camera systems, where users want to record a few
cameras covering entrances, garages, or boundary areas. It is also a good fit
for shops, offices, and small commercial spaces, where a 4-channel recorder is
enough for counters, entry points, work areas, and customer-facing zones.
Pros: Supports
4 IP cameras; Up to 6 MP recording support; H.265+/H.265 compression; 40 Mbps
incoming bandwidth; HDMI and VGA simultaneous output; Up to 6TB HDD support; Hik-Connect
remote management.
Cons: Only
1 SATA bay, so storage expansion is limited compared with larger NVR models. Network
interface is 10/100 Mbps, not gigabit. Best suited for small camera systems
rather than larger commercial surveillance deployments. This is an inference
based on the official 4-channel and single-HDD design.
Asiabiz Technology provides the best after sell
service to clients. You can get the best support almost anytime by contact in
our hotline at ‘09678221422’ or our sales and technical team’s number
at01404-466160-61-62-63-66. We believe that providing the best service helps
build strong relationships with our clients.
Q. How many cameras does Hikvision DS-7104NI-Q1/M support?
A: It supports up to 4 IP cameras.
Q. What is the maximum supported camera resolution?
A: Hikvision lists support for up to 6 MP
resolution.
Q. Does it support H.265?
A: Yes. Hikvision lists
H.265+/H.265/H.264+/H.264 video compression support.
Q. How much hard disk capacity does it support?
A: It has 1 SATA interface and supports up
to 6TB capacity for the hard disk.
Q. Does it have HDMI and VGA output?
A: Yes. Hikvision lists HDMI and VGA
simultaneous output.
Q. Does it support remote viewing?
A: Yes. Hikvision lists Hik-Connect among
the supported network protocols and management features.
Q: What is
the price of Hikvision DS-7104NI-Q1/M
NVR?
A: The price of Hikvision DS-7104NI-Q1/M NVR is around BDT 2,850 to BDT 3,250.
