| General Information | ||
| Power Supply | 12 VDC, 1.5 A |
|
| Power Consumption | ≤ 10 W (without HDD) |
|
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
|
| Working Humidity | 10 to 90 % |
|
| Chassis | N/A | |
| Dimension | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
|
| AI Detection | ||
| Face Detection | N/A | |
| Human Detection | N/A | |
| Vehicle Detection | N/A | |
| Motion Detection | N/A | |
| Video and Audio | ||
| Video Input | 4-ch |
|
| Bandwidth | Incoming: 40 Mbps Outgoing: 80 Mbps |
|
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K(4096x2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K(4096x2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz; HDMI/VGA simultaneous output ;1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 9 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz | |
| VGA Output | 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz; HDMI/VGA simultaneous output | |
| Video Output Mode | HDMI/VGA simultaneous output |
|
| CVBS Output | N/A | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
|
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
| Decoding | ||
| Decoding Format | H.265+,H.265,H.264+,H.264 |
|
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
| Decoding Capability | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
|
| Synchronous Playback | 4-ch |
|
| Dual-Stream Recording | N/A | |
| Stream Type | N/A | |
| Audio Compression | N/A | |
| Network | ||
| Remote Connection | 32 | |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS | |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
| API | N/A | |
| Compatible Browser | N/A | |
| Auxiliary Interface | ||
| SATA | 1 SATA interface |
|
| Capacity | Up to 8 TB capacity for each disk |
|
| Serial Interface | N/A | |
| Alarm In/Out | N/A | |
| USB Interface | 2 × USB 2.0 |
|

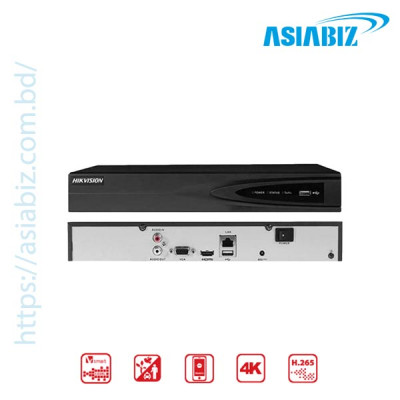

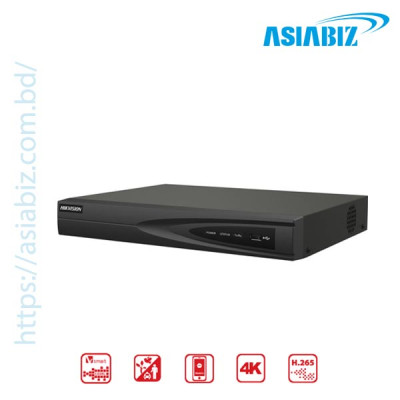

The Hikvision DS-7604NI-Q1
4-Channel 1U 4K Network Video Recorder (NVR) is a practical recording solution
for users who want a compact and reliable NVR for small CCTV setups at home, in
shops, or in offices. On Hikvision’s official product page, this model is
listed with support for up to 4 IP camera inputs, H.265+/H.265/H.264+/H.264
video formats, up to 40 Mbps incoming bandwidth, 4K HDMI output, simultaneous
HDMI and VGA output, 1 SATA interface with up to 8TB HDD support, and Motion
Detection 2.0 with human/vehicle analysis on 1 channel. That makes it a strong
choice for users in Bangladesh who want stable recording, efficient storage
use, and simple management for a 4-camera IP surveillance system. If you are
searching for NVR price in BD 2026, Hikvision NVR price in Bangladesh, or a
dependable 4 channel NVR for IP cameras, this model is a smart fit for smaller
security installations.
Supports up
to 4 IP cameras for small security setups: This makes it a practical choice
for homes, small shops, reception areas, and offices that do not need a larger
multi-channel recorder.
4K HDMI
output gives clearer local display quality: Hikvision lists HDMI output up
to 4K (3840 × 2160 / 30Hz), which is useful when you want sharper playback or
monitoring on a compatible display.
H.265+
compression helps save hard drive space: This is useful for users who want
longer recording retention without filling storage too quickly.
40 Mbps
incoming bandwidth supports smooth small-system recording: The official
specs list up to 40 Mbps incoming bandwidth, which is suitable for a 4-camera
IP setup in everyday use.
Motion
Detection 2.0 adds smarter human and vehicle analysis: Hikvision lists
human/vehicle analysis on 1 channel, which can make event review more useful
than basic motion-only recording.
1 SATA bay
supports up to 8TB HDD storage: This gives users a practical local storage
option for continuous recording and playback.
HDMI and VGA
simultaneous output adds display flexibility: You can connect it to
different monitor types more easily, which is helpful for office desks, shops,
and guard rooms.
If you want a dependable Hikvision 4 channel NVR
for a small IP camera setup in Bangladesh, the DS-7604NI-Q1 is a sensible
choice because it combines 4K display output, efficient compression, good
recording support, and practical storage capacity in a compact 1U body. It is
ideal for users who want a straightforward recorder for a home, retail shop,
office, or small business security system. For the best price in BD 2026, this
NVR is available at Asiabiz Technology.
Pros and
Cons of Hikvision DS-7604NI-Q1
Pros: Supports
4 IP camera inputs; 4K HDMI output; H.265+ compression Up to 8TB HDD support; Motion
Detection 2.0
Compact 1U design.
Cons: This
is a 4-channel NVR, so it is not the right choice for users planning larger
8-channel or 16-channel systems. It has 1 SATA bay, so storage expansion is
more limited than on higher-end NVRs. This base model is not the PoE version,
so users should not confuse it with the DS-7604NI-Q1/4P variant.
Frequently
Asked Questions (FAQs)
Q: Is
Hikvision DS-7604NI-Q1 a 4 channel NVR?
A: Yes.
Hikvision officially lists it with up to 4 IP camera inputs.
Q: Does this
NVR support 4K output?
A: Yes.
It supports 4K HDMI output, including 3840 × 2160 at 30Hz.
Q: How much
hard drive does Hikvision DS-7604NI-Q1 support?
A: It
supports 1 SATA HDD up to 8TB.
Q: Is this
NVR good for home or shop CCTV in Bangladesh?
A: Yes.
It is a good fit for smaller IP camera setups in homes, retail shops, offices,
and apartments where 4 channels are enough.
Q: Does this
model have built-in PoE ports?
A: No. The built-in PoE version is a different model, DS-7604NI-Q1/4P.
Get specific details about this product from customers who own it.
