| System | ||
| Main Processor | Embedded SoC-based | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| Analog Camera Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| IP Camera Input | 1-ch (up to 5-ch)Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
|
| Encoding Capacity | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
| Audio Sampling & Bit Rate | 32 Kbps to 6 Mbps | |
| Video Output | HDMI/VGA simultaneous output | |
| Multi-screen Display | YES | |
| Recording & Playback | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Record Mode | Continuous, Scheduled, Event/Motion Based Recording | |
| Recording Playback | 1/4 | |
| Backup Method | USB device | |
| Playback Mode | motion/AI | |
| Detection & Alarm | ||
| General Alarm | Motion Detection 2.0 | |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline | |
| Intelligent Alarm | YES | |
| Alarm Linkage | N/A | |
| Network | ||
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Smart Phone | iOS; Android | |
| Interoperability | N/A | |
| Ports | ||
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way Talk | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Storage | Up to 10 TB capacity for each disk | |
| USB Ports | Real panel: 2 × USB 2.0 | |
| HDMI & VGA | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| Network Port | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| General Information | ||
| Power Supply | 12 VDC, 1.5 A | |
| Power Consumption | ≤ 8 W (without HDD) | |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) | |
| Dimensions | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) | |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Storage Temperature | N/A | |
| Warranty | ||
| Warranty | 1 Year official warranty | |

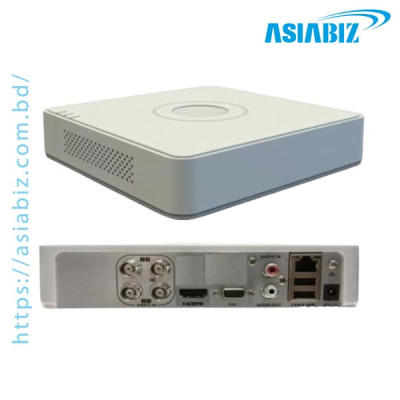

The Hikvision iDS-7104HQHI-M1/S 4-channel Mini AcuSense DVR is an
intelligent 4-ch digital video recorder designed to elevate your security
system with smart video analytics and reliable recording. With AcuSense deep
learning-based human and vehicle detection, H.265 Pro+/H.265 video compression,
and support for both analog and IP cameras, this compact DVR delivers
efficient, accurate surveillance for homes, shops, offices, and small-to-medium
business setups in Bangladesh. It’s ideal for customers searching for CCTV
system price in BD 2025, a 4-channel DVR Bangladesh, or an AcuSense-enabled
video recorder that enhances motion detection precision and reduces false
alarms.
Smart AcuSense AI Motion
Detection: Deep learning-based human and vehicle classification improves
detection accuracy and reduces false alarms from leaves, shadows, and
irrelevant motion.
H.265 Pro+ Video Compression: Supports
H.265 Pro+/H.265/H.264+ codecs to efficiently reduce storage and bandwidth
usage without sacrificing video quality, letting you store more footage longer.
Hybrid Camera Compatibility: Works
with HD-TVI, AHD, CVI, CVBS, and IP cameras, supporting mixed analog + IP
systems. It accepts up to 6 IP inputs (up to 6 MP) for flexible expansion.
Full HD Recording: Records
up to 1080p resolution to ensure clear, detailed surveillance footage that
helps with better identification and evidence collection.
Audio Support Over Coaxial Cable:
Supports audio via coaxial cable, allowing you to capture synchronized
sound along with video from compatible cameras.
Large Storage Capacity: Includes
1 SATA interface supporting up to 10 TB HDD, so you can retain more footage
without frequent overwrites.
HDMI & VGA Outputs: Simultaneous
HDMI and VGA video outputs enable clear local playback on monitors at up to
1080p resolution.
Network & Remote Access: Supports
remote viewing and playback via the Hik-Connect app, DDNS, and other network
protocols for convenient mobile and PC monitoring.
Compact,
Efficient Design: Mini 1U chassis with low power consumption (≤ 8 W without
HDD) makes installation easy in tight security cabinets.
The iDS-7104HQHI-M1/S is a smart and robust DVR that combines
AI-powered detection, hybrid compatibility, and efficient storage management at
a competitive CCTV system price in BD 2025. It’s perfect for solo homes, shops,
offices, and small business security systems where accurate motion detection
and reliable footage archiving matter.
Buy with confidence from Asiabiz Technology, offering authentic
Hikvision products, official warranty, and fast nationwide delivery.
Frequently Asked Questions (FAQs)
Q: What is the price of the
Hikvision iDS-7104HQHI-M1/S DVR in BD 2025?
A: Prices vary with stock
and market conditions. Visit AsiaBiz Technology for the latest CCTV system
price in BD 2025.
Q: How many cameras can this DVR
support?
A: It supports 4 analog
channels and up to 6 IP camera inputs (up to 6 MP), giving flexible expansion.
Q: What is AcuSense technology?
A: AcuSense uses deep
learning to accurately classify humans and vehicles during motion detection,
reducing false alerts.
Q: Can I access this DVR
remotely?
A: Yes. You can view live
feeds and playback remotely via Hik-Connect app and supported network
protocols.
Q: How much storage does it
support?
A: It includes 1 SATA interface that supports up to 10 TB HDD for extended recording.
Get specific details about this product from customers who own it.
