| System | ||
| Main Processor | Embedded SoC-based | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| Analog Camera Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| IP Camera Input | 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Encoding Capacity | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF |
|
| Audio Sampling & Bit Rate | 32 Kbps to 4 Mbps | |
| Video Output | HDMI/VGA simultaneous output | |
| Multi-screen Display | YES | |
| Recording & Playback | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Record Mode | motion/AI | |
| Recording Playback | 16-ch | |
| Backup Method | YES | |
| Playback Mode | YES | |
| Detection & Alarm | ||
| General Alarm | Motion Detection 2.0 | |
| Anomaly Alarm | YES | |
| Intelligent Alarm | YES | |
| Alarm Linkage | YES | |
| Network | ||
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF | |
| Smart Phone | iOS; Android | |
| Interoperability | N/A | |
| Ports | ||
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way Talk | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Storage | Up to 6 TB capacity for each disk | |
| USB Ports | 2 × USB 2.0 | |
| HDMI & VGA | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| Network Port | 1, RJ45 10M/100M self-adaptive Ethernet interface | |
| General Information | ||
| Power Supply | 12 VDC, 2 A | |
| Power Consumption | ≤ 7 W (without HDD) | |
| Weight | ≤ 1.8 kg (without HDD, 4.0 lb.) | |
| Dimensions | 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch) | |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Storage Temperature | N/A | |
| Warranty | ||
| Warranty | 1 Year official warranty | |

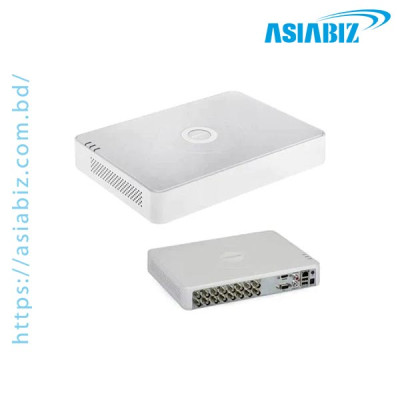

The Hikvision DS-7116HGHI-M1 16-Channel Mini DVR is a powerful and reliable 16-channel digital video recorder designed for hybrid CCTV systems used in homes, offices, shops, and commercial properties throughout Bangladesh. This compact Mini 1U DVR supports analog and IP camera inputs (up to 18 total) and delivers efficient H.265/H.265 Pro+ video compression to save storage while preserving clear footage. With smart Motion Detection 2.0 (human/vehicle classification), flexible output options, and remote access support, it’s perfect for users searching CCTV system price in BD 2025, a 16-ch DVR Bangladesh, or a hybrid recorder for CCTV security.
Key Features of Hikvision DS-7116HGHI-M1 16 channel DVR
Supports 16 Channels + 18 IP
Cameras: Connect up to 16 analog cameras and additional IP cameras (total
up to ~18) for flexible expansion without extra hardware changes.
Efficient H.265/H.265 Pro+
Compression: Advanced video codecs significantly reduce storage usage and
bandwidth without compromising video quality, letting you save more footage on
the same HDD.
Smart Motion Detection (Motion
Detection 2.0): Deep learning-based motion classification distinguishes
humans and vehicles from irrelevant motion such as leaves or shadows, reducing
false alerts and improving monitoring accuracy.
Full HD Recording & Flexible
Playback: Records in up to 1080p (1080p Lite) formats for clear
surveillance video and supports synchronous playback across all 16 channels.
Dual Video Outputs (HDMI + VGA):
Simultaneous HDMI and VGA outputs let you view live feeds and playback
footage on local monitors with crisp clarity.
Built-In Audio Support: Uses
coaxial and RCA audio inputs/outputs for synchronized sound recording and
optional two-way audio with compatible cameras.
Large Storage Support (Up to 10
TB): Includes a single SATA interface supporting up to 10 TB of HDD
storage—ideal for long-term recording needs.
Remote Access & Network
Options: Supports remote monitoring through Hik-Connect, iVMS-4200, DDNS,
and web access for real-time viewing and playback on PCs and smartphones.
Compact & Energy-Efficient: The
Mini 1U DVR design fits into small security cabinets while consuming low power
(≈ ≤ 7 W without HDD), making it efficient for daily operation.
The Hikvision DS-7116HGHI-M1 is a dependable DVR solution that blends
multi-format camera support, efficient video compression, smart motion
analytics, and large storage capacity at a competitive CCTV system price in BD
2025. Whether you’re securing a small business, storefront, or residential compound,
it delivers reliable performance and future-ready surveillance features.Get the
genuine product at the best price in BD 2025 from Asiabiz Technology, with
official warranty and nationwide delivery.
Frequently Asked Questions
(FAQs)
Q: What is the price of the
Hikvision DS-7116HGHI-M1 DVR in BD 2025?
A: Prices vary with stock
and demand. Visit AsiaBiz Technology for the latest CCTV system price in BD
2025.
Q: How many cameras can this DVR
support?
A: It supports 16 analog
channels and up to 18 total camera inputs with additional IP cameras.
Q: What compression formats does
it use?
A: It features H.265 Pro+,
H.265, H.264+ and H.264 compression to maximize storage efficiency.
Q: Can I view the DVR remotely?
A: Yes. It supports
Hik-Connect, iVMS-4200, DDNS and web access for remote live view and playback.
Q: Is this DVR suitable for
outdoor CCTV systems?
A: Yes. Designed for hybrid analog/IP systems, it works with both indoor and outdoor cameras as part of a larger security setup.
Get specific details about this product from customers who own it.
