| System | ||
| Main Processor | Embedded SoC-based | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| Analog Camera Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| IP Camera Input | 2-ch (up to 18-ch)Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Encoding Capacity | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
| Audio Sampling & Bit Rate | 32 Kbps to 6 Mbps | |
| Video Output | HDMI/VGA simultaneous output | |
| Multi-screen Display | YES | |
| Recording & Playback | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Record Mode | Video, Video & Audio | |
| Recording Playback | 16-ch | |
| Backup Method | USB device | |
| Playback Mode | motion/AI | |
| Detection & Alarm | ||
| General Alarm | Motion Detection 2.0 | |
| Anomaly Alarm | YES | |
| Intelligent Alarm | YES | |
| Alarm Linkage | YES | |
| Network | ||
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Smart Phone | iOS; Android | |
| Interoperability | N/A | |
| Ports | ||
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way Talk | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Storage | Up to 10 TB capacity for each disk | |
| USB Ports | Real panel: 2 × USB 2.0 | |
| HDMI & VGA | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| Network Port | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| General Information | ||
| Power Supply | 12 VDC, 2A | |
| Power Consumption | ≤ 24W | |
| Weight | ≤ 1 kg (2.2 lb) | |
| Dimensions | 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch) | |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Storage Temperature | N/A | |
| Warranty | ||
| Warranty | 1 Year official warranty | |

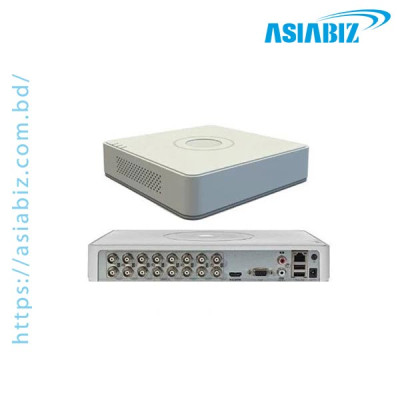

The Hikvision iDS-7116HQHI-M1/S 16-Channel Mini AcuSense DVR is a
powerful Full HD digital video recorder engineered for modern CCTV systems in
homes, shops, offices, and medium-scale commercial properties in Bangladesh.
Leveraging AcuSense deep learning technology, this DVR intelligently classifies
human and vehicle motion, significantly reducing false alarms and enhancing
monitoring accuracy. It supports multiple camera formats (HD-TVI, AHD, CVI,
CVBS, IP) and can connect up to 24 IP cameras (up to 6 MP) for flexible,
future-ready surveillance. With efficient H.265 Pro+/H.265 video compression,
wide-ranging inputs, and smart analytics like Motion Detection 2.0 and
perimeter protection, this DVR offers smart security with efficient
storage—ideal for customers searching for CCTV system price in BD 2025 or a
16-ch hybrid AcuSense DVR Bangladesh.
AcuSense Human & Vehicle
Classification: Powered by deep learning, Motion Detection 2.0 accurately
identifies humans and vehicles to reduce false alarms and focus on real
security events.
Hybrid & IP Camera
Compatibility: Supports analog cameras via coax and up to 24 IP cameras (up
to 6 MP), allowing flexible expansion and hybrid CCTV setups without complex
rewiring.
H.265 Pro+/H.265 Video
Compression: Advanced compression significantly reduces storage and
bandwidth use, enabling you to keep longer recordings on the same hard drive.
Multi-Format Video Inputs: Compatible
with HD-TVI, AHD, CVI, CVBS, and IP camera signals, so it integrates easily
with existing camera collections.
Smart Search & Perimeter
Protection: Smart search by object or event type accelerates playback
review, and perimeter protection analytics help detect line crossing or
intrusion.
HDMI & VGA Outputs for Local
Monitoring: Supports both HDMI and VGA outputs for clear live viewing and
playback on local monitors.
High Storage Capacity (Up to 10
TB): Single SATA interface supports up to 10 TB HDD, providing plenty of
space for long-term high-resolution recordings.
Remote Access & Networking: Remote
monitoring and playback via Hik-Connect, DDNS, TCP/IP and other network
protocols let you keep an eye on your property from anywhere.
Hikvision is a globally respected CCTV brand known for durability,
intelligent analytics, and dependable performance. The iDS-7116HQHI-M1/S
16-Channel Mini AcuSense DVR combines smart motion analytics, hybrid
compatibility, efficient compression, and scalable IP support at a competitive
CCTV system price in BD 2025—making it an excellent choice for residential and
commercial CCTV setups. Whether you’re installing a new monitoring system or
upgrading an existing one, this DVR delivers smart security with reliable
recording and flexible expandability. Buy with confidence from AsiabizTechnology, offering authentic hustler products, official warranty, and fast
nationwide delivery.
Frequently Asked Questions
(FAQs)
Q: What is the price of the
Hikvision iDS-7116HQHI-M1/S DVR in BD 2025?
A: Prices vary with stock
and demand. Visit AsiaBiz Technology for the latest CCTV system price in BD
2025.
Q: How many cameras can this DVR
support?
A: It supports 16 analog
channels and can accept up to 24 IP cameras (up to 6 MP) for hybrid
surveillance.
Q: How does AcuSense technology
improve security?
A: AcuSense uses deep
learning to distinguish humans and vehicles from irrelevant motion, reducing
false alarms and improving event accuracy.
Q: Can this DVR be accessed
remotely?
A: Yes via Hik-Connect,
DDNS, TCP/IP and other protocols for live view, playback, and notifications.
Q: How much storage can this DVR
handle?
A: It supports up to 10 TB HDD via a single SATA interface for long-term recordings.
