| System | ||
| Main Processor | Embedded SoC-based | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| Analog Camera Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| IP Camera Input | 1-ch (up to 5-ch) Up to 2MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
|
| Encoding Capacity | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
|
| Audio Sampling & Bit Rate | 64 Kbps | |
| Video Output | HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| Multi-screen Display | YES | |
| Recording & Playback | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Record Mode | Continuous, Scheduled, Event/Motion Based Recording | |
| Recording Playback | 1/4 | |
| Backup Method | USB device | |
| Playback Mode | N/A | |
| Detection & Alarm | ||
| General Alarm | Motion detection; | |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline | |
| Intelligent Alarm | SMD Plus | |
| Alarm Linkage | N/A | |
| Network | ||
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS | |
| Smart Phone | iOS; Android | |
| Interoperability | N/A | |
| Ports | ||
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
|
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way Talk | Reuse the first audio input | |
| Storage | Up to 4 TB capacity for each disk | |
| USB Ports | Rear panel: 2 × USB 2.0 | |
| HDMI & VGA | YES | |
| Network Port | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| General Information | ||
| Power Supply | 12 VDC, 1.5 A | |
| Power Consumption | ≤ 10 W (without HDD) | |
| Weight | ≤ 0.8 kg (without HDD, 1.8 lb.) | |
| Dimensions | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) | |
| Operating Temperature | -10 °C to 55 °C (14 °F to +131 °F) | |
| Storage Temperature | N/A | |
| Warranty | ||
| Warranty | 1 Year official warranty | |

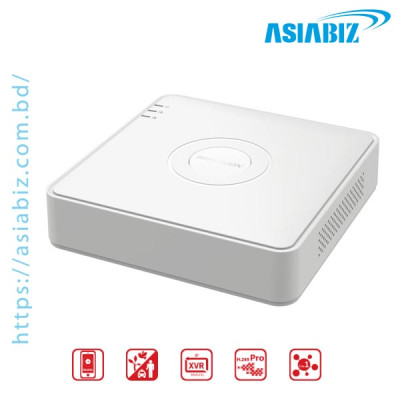

The Hikvision DS-7104HQHI-M1/T 04 Channel 1U DVR is a compact and
powerful digital video recorder engineered for reliable CCTV storage and
playback in small to medium-scale security systems. Designed to work with analog
and hybrid camera setups, this DVR supports multiple video formats including
HDTVI, CVI, AHD, CVBS and IP, delivering flexible installation options for
homes, shops, offices, and commercial premises in Bangladesh. With advanced
H.265 Pro+ compression, Smart Motion Detection 2.0 with human/vehicle analysis,
and two-way audio, it’s ideal for anyone searching for CCTV system price in BD
2025, 4-channel DVR Bangladesh, or efficient video recording solution.
Hybrid Video Input (Analog + IP):
Supports 4 analog channels and up to 5 IP camera inputs (up to 2 MP),
making upgrades or mixed systems easy to implement.
H.265 Pro+/H.265 Video
Compression: Efficient encoding reduces video storage and bandwidth usage
by up to ~80% compared to older codecs letting you save more footage without
sacrificing quality.
Smart Motion Detection 2.0: Deep
learning-based motion detection automatically distinguishes humans and vehicles
from irrelevant motion (e.g., leaves or shadows), reducing false alarms and
improving alert accuracy.
Two-Way Audio Over Coaxial Cable:
Supports audio over the same coaxial cable and dedicated RCA audio
input/output, enabling synchronized sound recording and two-way communication
for enhanced security monitoring.
Multi-Format Compatibility: Works with HDTVI, HDCVI, AHD, CVBS, and IP cameras to ensure broad compatibility with existing CCTV infrastructures.
HDMI & VGA Outputs: Simultaneous
HDMI and VGA outputs support up to 1080p resolution, providing crisp video on
local monitors.
Synchronous Playback & Smart
Search: Play back all 4 channels simultaneously and quickly find relevant
footage with smart search by event type, saving investigation time.
Flexible Storage (Up to 4 TB): Includes
1 SATA interface that supports hard drives up to 4 TB for extended recording
without frequent overwrites.
Network & Remote Access: Supports
Hik-Connect, TCP/IP, DDNS, and other network protocols for remote live view and
playback on smartphones and PCs.
The Hikvision DS-7104HQHI-M1/T is a cost-effective DVR solution that
combines efficient video compression, hybrid camera support, intelligent motion
detection, and two-way audio at an attractive CCTV system price in BD 2025.
It’s ideal for residential and small business security setups looking for
reliable recording, flexible camera integration, and smart monitoring
capabilities. Get genuine Hikvision products at the best price in BD 2025 from
Asiabiz Technology, backed by official warranty and fast nationwide delivery.
Frequently Asked Questions
(FAQs)
Q: What is the price of the
Hikvision DS-7104HQHI-M1/T DVR in BD 2025?
A: Prices vary by stock and
retailer. Visit Asiabiz Technology to check the latest CCTV system price in BD
2025.
Q: How many cameras can this DVR
support?
A: It supports 4 analog
channels and up to 5 IP camera inputs, offering hybrid system flexibility.
Q: Does this DVR have audio
support?
A: Yes. It provides two-way
audio support through coaxial and dedicated RCA audio connections.
Q: What is H.265 Pro+
compression?
A: H.265 Pro+ is an advanced
video codec that significantly reduces storage and bandwidth usage while
maintaining video quality.
Q: How much storage can this DVR handle?
A: It includes 1 SATA port supporting up to 4 TB of hard drive capacity.
