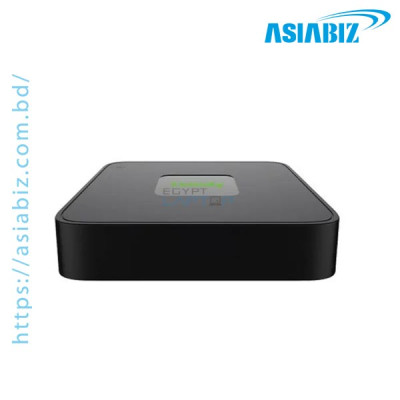

-400x400.jpg "Tiandy TC-R3104 4 Channel PoE Network Video Recorder (NVR)")
Cash Discount Price
Online / Cash Payment
| Video and Audio | ||
| Access Channel | 4 | |
| Incoming Bandwidth | 60Mbps | |
| Outgoing Bandwidth | 40Mbps | |
| Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Preview Decoding Capability | 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
|
| Playback Decoding Capability | 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4 |
|
| HDMI Output | HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
| HDMI Output | HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
| VGA Output | VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
| Multi-screen Display | Simultaneous Output: VGA: 1/2/3/4 HDMI: 1/2/3/4 |
|
| Compression Standard | ||
| Video Compression | S+265; H.265; S+264; H.264 | |
| Audio Compression | G.711A; G.711U; ADPCM_D | |
| Stream Type | Video; Video & Audio | |
| Recording Playback | ||
| Multi-channel Playback | 4 | |
| Record Mode | Alarm Recording; Schedule Recording | |
| Storage Method | Local HDD | |
| Backup | USB storage device | |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/ Digital Zoom/Instant Replay |
|
| Network | ||
| Network Protocol | ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SMTP; SSH; TCP; UDP; Unicast; UPnP |
|
| Mobile Client | EasyLive Plus (Android, iOS) | |
| System Compatibility | CGI; SDK; P2P | |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ | |
| Alarm | ||
| General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC) | |
| Exceptions Alarm | Video Loss; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload |
|
| Intelligent Analytics | ||
| Intelligent Analytics | Smart Alarm; Human/Vehicle Classification | |
| Storage | ||
| HDD Capacity | Up to 8 TB capacity for each HDD | |
| Disk Group | N/A | |
| PoE | ||
| PoE Interface | 4×RJ45, 10/100 Mbps self-adaptive Ethernet port | |
| PoE Budget | 32W | |
| Power per PoE Port | 30W | |
| Standard | IEEE 802.3 af/at | |
| External Port | ||
| USB | 2×USB2.0 | |
| HDMI | 1×HDMI | |
| VGA | 1×VGA | |
| Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port | |
| General | ||
| UI Language | English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese | |
| Power Supply | DC48V | |
| Power Consumption | <10W(without HDD&without PoE) | |
| NetWeight | 0.44kg | |
| GrossWeight | 0.81kg | |
| Operating Temperature | -10°C~+55°C (+14°F~+131°F) | |
| Storage Temperature | -20°C~+60°C (-4°F~+140°F) | |
| Package Kit | Network Video Recorder*1; Screw Pack*1; Mouse*1; European Standard Power Adapter(DC48V 1A)*1; Instructions*1; Parts List*1 |
|
The Tiandy TC-R3104 4 Channel PoE
Network Video Recorder (NVR) is a compact and powerful PoE NVR designed for
efficient and reliable IP CCTV surveillance in Bangladesh. This 4-channel PoE
NVR integrates 4 PoE ports to power and record from up to four IP cameras
directly — eliminating the need for a separate PoE switch — making it ideal for
homes, shops, offices, and small business security systems. If you’re asking
*“Which is the best *4-channel PoE NVR for CCTV in BD 2026?” or “What is a good
NVR price in BD 2026?”, the TC-R3104 blends high-resolution recording, easy
setup, and smart compression in a cost-effective package. This NVR supports up
to 5MP camera resolution, advanced video compression (S+265/H.265/H.264) to
save storage space, and 4-channel synchronous playback — all wrapped in a
user-friendly interface with remote access via mobile apps (Android/iOS). With
support for up to 6 TB HDD storage and HDMI output for local monitoring, it’s a
complete surveillance solution for everyday security needs in Bangladesh.
4-Channel
PoE Ports for Plug-and-Play Setup: Connect and power up to four IP cameras
directly without needing a separate PoE switch — simplifies wiring and lowers
installation costs.
Support for
Up to 5MP High-Resolution Cameras: Records and manages footage from
high-definition cameras, giving clear and detailed surveillance coverage.
Advanced
Video Compression (S+265/H.265): Efficient compression reduces storage
space by up to 75%, helping you keep more video without needing frequent HDD
upgrades.
Up to 6 TB
Storage Capacity: Supports a single SATA HDD (up to 6 TB) — ideal for
long-term recording and large video archives.
HDMI Output
up to 1080p for Live Monitoring: Connects to monitors for crisp, real-time
viewing and playback of recorded footage.
4-Channel
Synchronous Playback: Watch recordings from multiple cameras at once to
quickly review events and incidents.
Remote
Access via Mobile & Web: Monitor your security system from anywhere
using mobile apps like EasyLive Plus or a web interface perfect for remote
management.
The Tiandy TC-R3104 4 Channel PoE Network Video
Recorder is a practical, budget-friendly choice for CCTV security in
Bangladesh, offering integrated PoE ports, support for high-resolution cameras,
and smart compression technology. Its plug-and-play design and remote access
capabilities make it well suited for home security, small shops, offices, and
residential buildings. Get the best price in BD 2026 for this Tiandy PoE NVR —
available at Asiabiz Technology, your reliable destination for IP camera
systems, NVRs, PoE network hardware, and security accessories.
Frequently
Asked Questions (FAQs)
Q: How many
IP cameras can I connect to this NVR?
A: You
can connect up to 4 PoE IP cameras directly using the built-in PoE ports.
Q: What is
the maximum camera resolution supported?
A: It
supports recording from IP cameras up to 5 MP resolution per channel.
Q: How much
storage does it support?
A: This
NVR supports one SATA HDD up to 6 TB, providing ample room for recordings.
Q: Can I
view recordings remotely?
A: Yes —
you can access live feeds and playback remotely using compatible mobile apps
(Android/iOS).
Q: Does it
require a separate PoE switch?
A: No its built-in PoE ports power connected IP cameras directly, so no external PoE switch is necessary.
