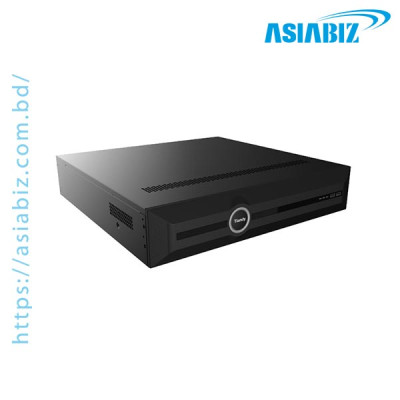

-400x400.jpg "Tiandy TC-R3240 2HDD 40 Channel Network Video Recorder (NVR)")
Cash Discount Price
Online / Cash Payment
| Video and Audio | ||
| Access Channel | 40 | |
| Incoming Bandwidth | 400Mbps | |
| Outgoing Bandwidth | 400Mbps | |
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Preview Decoding Capability | 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps)×20, 720P(30fps)×40, 4CIF(30fps)×40 |
|
| Playback Decoding Capability | 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps)×20, 720P(30fps)×40, 4CIF(30fps)×40 |
|
| HDMI Output | HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz) |
|
| HDMI Output | HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz) |
|
| VGA Output | VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
|
| Multi-screen Display | Independent Output: HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 |
|
| Compression Standard | ||
| Video Compression | S+265; H.265; S+264; H.264 | |
| Audio Compression | G.711A; G.711U; AAC; ADPCM_D | |
| Stream Type | Video; Video & Audio | |
| Recording Playback | ||
| Multi-channel Playback | 16 | |
| Record Mode | Manual Recording; Alarm Recording; Schedule Recording | |
| Storage Method | Local HDD | |
| Backup | USB storage device, Network | |
| Playback Function | Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay |
|
| Network | ||
| Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP |
|
| Mobile Client | EasyLive Plus (Android, iOS) | |
| System Compatibility | ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P | |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ | |
| Alarm | ||
| General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR) | |
| Exceptions Alarm | Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot- spare Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload |
|
| Intelligent Analytics | ||
| Intelligent Analytics | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Alarm; Face Recognition; Human/Vehicle Classification |
|
| Storage | ||
| HDD Capacity | Up to 10 TB capacity for each HDD | |
| Disk Group | 2 Disk Group | |
| PoE | ||
| PoE Interface | N/A | |
| PoE Budget | N/A | |
| Power per PoE Port | N/A | |
| Standard | N/A | |
| External Port | ||
| USB | 1×USB2.0; 1×USB3.0 | |
| HDMI | 1×HDMI(supports up to 4K resolution output) | |
| VGA | 1×VGA | |
| Network Interface | 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port | |
| General | ||
| UI Language | Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek |
|
| Power Supply | DC12V | |
| Power Consumption | <15W(HDD not included, idling) | |
| NetWeight | 2.25Kg | |
| GrossWeight | 3.85Kg | |
| Operating Temperature | -10°C~+55°C (+14°F~+131°F) | |
| Storage Temperature | -20°C~+60°C (-4°F~+140°F) | |
| Package Kit | Network Video Recorder*1; Screw Pack*2; Mouse*1; Power Adapter(DC12V 3.33A)*1; European Standard Power Cord*1; Ear Plate*2; SATA Hard Disk Data Cable*2; SATA Power Cord*1; Instructions*1; Parts List*1 |
|
The Tiandy TC-R3240 2HDD 40
Channel Network Video Recorder (NVR) is a high-capacity and professional NVR
solution designed for expansive IP CCTV surveillance systems in Bangladesh —
perfect for commercial complexes, large homes, offices, shops, warehouses, and
residential communities. This 40-channel NVR supports up to 40 IP camera inputs
with high-resolution recording and efficient compression, making it a reliable
choice when you’re asking *“Which is the best *40 channel NVR for CCTV in BD
2026?” or “Where can I find a robust NVR price in BD 2026?” It supports leading
video codecs like S+265, H.265, and H.264 to reduce storage requirements, and
comes with dual 2 SATA HDD bays for up to 10 TB storage each (up to 20 TB
total) to archive long-term footage. With simultaneous HDMI and VGA outputs, 4K
video display support, and wide compatibility with third-party ONVIF cameras,
the TC-R3240 delivers comprehensive performance for larger CCTV systems.
Up to 40 IP
Camera Support: Handles up to 40 channels (live view and recording) — ideal
for monitoring wide areas in businesses and residential complexes.
Dual HDD
Storage with Large Capacity: Supports 2 SATA HDDs, each up to 10 TB
capacity, giving up to 20 TB total storage — excellent for long-term footage
retention.
Efficient
S+265/H.265/H.264 Compression: Advanced video compression reduces storage
space by up to 75% compared to older formats, saving on HDD costs.
High-Resolution
Camera Recording: Works with IP cameras up to 16 MP / 12 MP / 8 MP / 6 MP /
5 MP / 4 MP / 3 MP / 1080P resolution — ensuring clear and detailed footage.
4K HDMI
& VGA Outputs: Independent HDMI and VGA outputs support up to 4K
resolution for crisp local viewing and playback.
Smart Search
& Playback Tools: Smart search features make it easy to find key events
quickly across large datasets.
ONVIF &
Third-Party Camera Support: Compatible with standard ONVIF cameras and
popular brands, giving you flexibility in selecting cameras.
The Tiandy TC-R3240 2HDD 40 Channel Network Video
Recorder is a scalable and powerful surveillance hub, ideal for large CCTV deployments in Bangladesh. Its impressive channel support, flexible storage
options, smart compression features, and wide compatibility make it a strong
choice for professionals, businesses, and residential customers seeking
dependable video management. Get the best price in BD 2026 for this advanced 40
channel NVR — available at Asiabiz Technology, your trusted supplier of CCTV
cameras, NVRs, PoE switches, and complete security solutions.
Frequently
Asked Questions (FAQs)
Q: How many
cameras can the TC-R3240 support?
A: It
supports up to 40 IP camera channels for real-time monitoring and recording.
Q: Can I use
cameras from other brands with this NVR?
A: Yes —
it supports ONVIF protocols, making it compatible with many third-party IP
cameras.
Q: What
video compression formats are supported?
A: It
supports S+265, H.265, and H.264 video compression to reduce storage usage
while maintaining quality.
Q: How much
storage can this NVR handle?
A: This
NVR has 2 SATA HDD bays, each supporting up to 10 TB of storage (up to 20 TB
total).
Q: Does this
NVR support high-resolution output?
A: Yes — it supports HDMI output up to 4K resolution for detailed live view and playback.
