| Video/Audio Input | ||
| IP Video Input | 16-ch | |
| RCA Audio Input | 1-ch | |
| Video/Audio Output | ||
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| RCA Audio Output | 1-ch | |
| Liveview Display | 1/4/6/8/9/16 | |
| Decoding | ||
| Decoding Format | Ultra 265,H.265,H.264 | |
| Decoding Capability | Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
|
| Audio Compression | G.711A, G.711U | |
| Network | ||
| Incoming Bandwidth | 160 Mbps | |
| Outgoing Bandwidth | 128Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP | |
| Two-way Audio | ||
| Two-way Audio | 1-ch,RCA(Using the audio input and output) | |
| Recording | ||
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |
| Synchronous Playback in Local | 16-ch | |
| Hard Disk | ||
| SATA | 2 SATA Interfaces | |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C) | |
| Smart | ||
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring | |
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) | |
| Alarm | ||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface | |
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0 | |
| Alarm In | 8-ch | |
| Alarm Out | 2-ch | |
| PoE | ||
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface | |
| Max Power | Max 30 W for single port, Max 240 W in total | |
| General | ||
| Power Supply | AC 100~240V | |
| Certification | ||
| Certification | CE; FCC; UL; RoHS; WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |

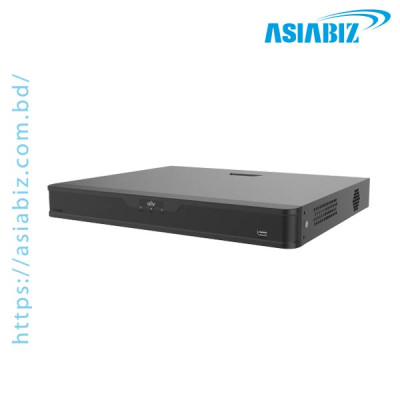

The Uniview NVR302-16B-IQ 16 Channel PoE Network
Video Recorder (NVR) is a powerful all-in-one CCTV NVR designed for homes,
shops, offices, warehouses, and commercial security setups in Bangladesh. With
16 built-in PoE ports for easy camera connection and support for
Ultra265/H.265/H.264 video compression, this recorder delivers high-quality 4K
monitoring and reliable recording — perfect when asking *“Which *16 channel PoE
NVR is best for CCTV in BD 2026?” or “Where can I find the best NVR price in BD
2026?” It enables plug & play camera setup, supports ONVIF and RTSP
cameras, and includes HDMI 4K + VGA outputs for flexible live viewing and
playback.
16 Channel
PoE Support (Plug & Play): Built-in 16 independent PoE ports (IEEE
802.3af/at) let you power and connect cameras with a single cable, reducing
wiring cost and simplifying installation.
Ultra 265 /
H.265 / H.264 Compression: Modern video codecs reduce storage and bandwidth
needs while keeping video quality high — ideal for long-term recording.
High-Resolution
Recording Up to 12 MP: Supports camera recording up to 12 MP for sharper
footage and better detail (including 4K cameras).
4K Ultra HD
Monitor Output: Supports HDMI output up to 4K (3840×2160) and VGA output —
both can be used simultaneously for flexible viewing.
Wide Camera
Compatibility (ONVIF / RTSP): Works with ONVIF Profile S/G/T and RTSP
cameras from many brands, giving you flexibility in camera choice.
Automatic
Network Replenishment (ANR): When the network disconnects, ANR ensures
cameras with microSD continue storing footage and sync back to the NVR when the
network returns.
Remote
Access & Cloud Upgrade: Supports cloud firmware updates and remote
access — so you can view cameras and playback footage via mobile or PC.
The Uniview NVR302-16B-IQ 16 Channel PoE NVR is a
reliable and feature-rich choice for CCTV systems in Bangladesh, offering
simple PoE camera connections, 4K output, efficient storage, and broad device
compatibility. It’s ideal for residential and commercial applications where you
want plug-and-play setup and dependable recording for 24/7 security. Best price
in BD 2026 is available at Asiabiz Technology, your trusted partner for NVRs,
IP cameras, PoE networking gear, and complete CCTV security solutions.
Frequently
Asked Questions (FAQs)
Q: How many
cameras can this NVR handle?
A: It
supports up to 16 IP camera channels with built-in PoE ports for direct
connection.
Q: What is
the maximum resolution this NVR supports?
A: This
NVR records up to 12 MP per camera, including 4K UHD cameras.
Q: Can I
view the footage on a 4K monitor?
A: Yes —
it supports HDMI output up to 4K and simultaneous VGA output.
Q: Does it
work with cameras from multiple brands?
A: Yes —
it’s ONVIF-compliant and supports RTSP, so many third-party IP cameras can
integrate.
Q: Is
recording continuous if the network drops?
A: Yes — ANR technology ensures recording continues on camera microSD when the network disconnects, then syncs later.
