| Video/Audio Input | ||
| IP Video Input | NVR301-04S3-P4:4-ch NVR301-08S3-P8:8-ch |
|
| RCA Audio Input | 1-ch | |
| Video/Audio Output | ||
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| RCA Audio Output | 1-ch | |
| Liveview Display | NVR301-04S3-P4:1/4 NVR301-08S3-P8:1/4/6/8/9 |
|
| Decoding | ||
| Decoding Format | Ultra 265, H.265, H.264 | |
| Decoding Capability | NVR301-04S3-P4:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 NVR301-08S3-P8:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 |
|
| Audio Compression | G.711A, G.711U | |
| Network | ||
| Incoming Bandwidth | 64Mbps | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP | |
| Recording | ||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF | |
| Synchronous Playback in Local | NVR301-04S3-P4:4-ch NVR301-08S3-P8:8-ch |
|
| Hard Disk | ||
| SATA | 1 SATA Interface | |
| Capacity | Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size) |
|
| Smart | ||
| Smart by IPC | Total 4-ch(Face Detection, SIP, UMD) | |
| Alarm | ||
| General Alarm | Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
|
| Alert Alarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
|
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB | Rear panel: 2 x USB2.0 | |
| Alarm In | N/A | |
| Alarm Out | N/A | |
| PoE | ||
| PoE Interface | 10M/100M self-adaptive Ethernet Interface | |
| Max Power | NVR301-04S3-P4:Max 30W for single port, Max 54W in total NVR301-08S3-P8:Max 30W for single port, Max 75W in total |
|
| General | ||
| Power Supply | NVR301-04S3-P4:DC 48V/1.35A NVR301-08S3-P8:DC 52V/1.8A |
|
| Certification | ||
| Certification | CE;FCC;UL;RoHS;WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |

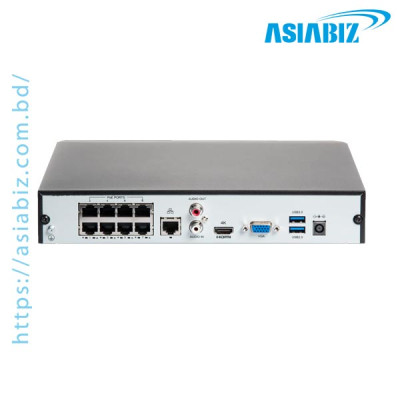

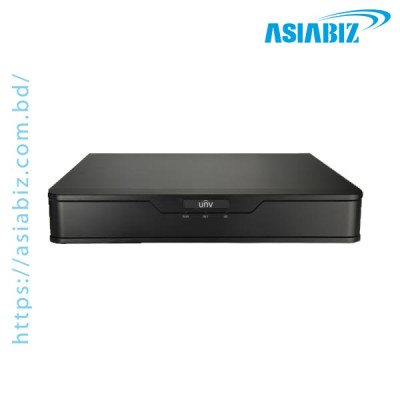

The Uniview NVR301-08S3-P8 8 Channel 4K PoE Network
Video Recorder (NVR) is a feature-rich PoE CCTV recorder designed for homes,
shops, offices, and small-to-medium surveillance systems in Bangladesh. This
8-channel NVR supports built-in PoE ports, letting you connect and power up to
8 IP cameras directly — no external PoE switch required — which makes setup
faster and cleaner. It supports Ultra 265/H.265/H.264 video compression, 4K
Ultra HD monitoring and recording, and integrates with ONVIF-compliant cameras
while providing remote access via network or smartphone apps — making it a top
choice if you’re asking *“Which *PoE NVR is best for CCTV in BD 2026?” or
“Where can I find the best NVR price in BD 2026?”
8 Channel
PoE Support (Plug & Play): Built-in 8 IEEE 802.3at/af PoE ports power
and connect cameras with a single cable — simplifying installation and cutting
downtime and wiring clutter.
4K Ultra HD
Output: Supports HDMI output up to 4K (3840×2160) @30Hz for crisp live
viewing and playback on modern displays.
Advanced
Video Compression: Compatible with Ultra 265, H.265, and H.264 formats to
save storage space and reduce bandwidth without sacrificing video quality.
Wide
Recording Resolution Range: Records from 8MP/5MP down to 720p/D1 —
supporting mixed-resolution camera systems and flexible recording setups.
Remote
Access & Smart Networking: Supports remote monitoring via mobile app,
web browser, and CMS, with standard network protocols (P2P, UPnP, DHCP, DDNS).
Up to 128 remote users can connect simultaneously.
Smart Search
& Playback Tools: Offers synchronous playback for all 8 cameras, search
by time or events (motion, intrusion, tampering), and VCA face detection in
compatible setups.
Expandable
Storage (Up to ~8 TB): Single SATA HDD slot supports large drives
(typically up to 8 TB) for extended video retention without frequent overwrite.
Dual Monitor
Support (HDMI + VGA): Simultaneous HDMI and VGA outputs allow local viewing
on both modern 4K screens and standard monitors.
The Uniview NVR301-08S3-P8 8 Channel 4K PoE NVR
delivers easy plug-and-play PoE installation, 4K output, smart compression, and
strong remote monitoring support — giving you a powerful, scalable surveillance
backbone for Bangladesh CCTV systems in 2026. Its built-in PoE, extensive codec
support, and ONVIF compatibility make it flexible for a variety of camera
setups, from small homes to offices and shops. Best price in BD 2026 is
available at Asiabiz Technology, your trusted source for NVR recorders, IP cameras,
PoE switches, and complete CCTV security solutions.
Frequently
Asked Questions (FAQs)
Q: How many
cameras can this NVR support?
A: It
supports up to 8 IP camera channels with direct PoE connection.
Q: What
video resolutions can be recorded?
A: It
records up to 4K Ultra HD, and supports 5MP, 4MP, 3MP, 1080p, 960p, 720p, and
lower formats.
Q: Can I
view the cameras remotely?
A: Yes —
remote monitoring is available via mobile apps, CMS software, and web browsers
with support for common network protocols.
Q: Does it
have smart search tools?
A: Yes —
it supports smart search and playback by time or event (including motion and
intrusion).
Q: How much
storage can it hold?
A: The NVR has one SATA HDD slot supporting large drives (commonly up to ~8 TB).
