| Basic | ||
| Layer | Layer 2 | |
| Packet Forwarding Rate | 8.93 Mpps | |
| Description of Function Slots | Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) | |
| PoE Power | Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W | |
| Power Consumption | Idling: ≤2.5 W ; Full load: 65 W | |
| Power Supply | External power supply: 53 VDC, 1.226 A | |
| Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV | |
| Net Weight | 0.29 kg (0.64 lb) | |
| Casing Material | Sheet metal | |
| Hardware | ||
| Long Distance PoE Transmission | Yes | |
| PoE | Yes | |
| Reset Button | 1 | |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | |
| Performance | ||
| MTBF | 222.36 years | |
| Packet Buffer Size | 4 Mbit | |
| VLAN Number | 32 | |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab | |
| Feature | ||
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE | |
| PoE Power Consumption Management | Yes | |
| VLAN Function | Port-based VLAN | |
| DHCP Function | DHCP Client | |
| General | ||
| Installation | Desktop mount; wall mount | |
| Certifications | N/A | |

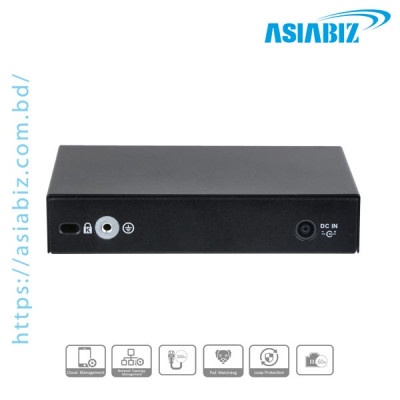

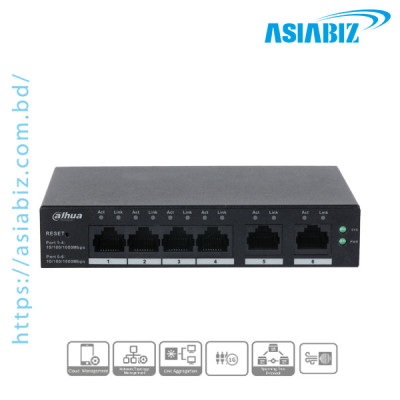

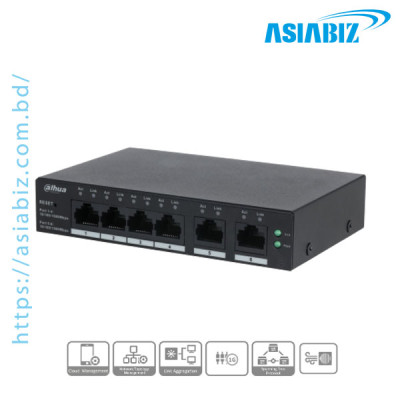

The Dahua DH-CS4006-4GT-60 4-Port
with 6-Port Cloud Managed PoE Switch is a powerful and flexible cloud-managed
PoE network switch designed to support modern IP surveillance systems in
Bangladesh. Ideal for powering and managing Dahua IP cameras, this switch
offers 4 PoE ports for direct camera power and 2 uplink Gigabit ports for
network expansion, delivering seamless connectivity for homes, shops, offices,
and small business environments. If you’re asking, “Which is the best PoE
switch for CCTV cameras in BD 2026?” or “Where can I find a reliable PoE switch
price in BD 2026?”, the DH-CS4006-4GT-60 combines intelligent power delivery,
cloud management, and durable design to enhance your CCTV network performance. Built
with IEEE802.3af/at and Hi-PoE standards, cloud-managed control via DoLynk
Care, and advanced network features such as loop protection and VLAN support,
this network switch simplifies setup and maintenance — so your security system
stays reliable and scalable.
Cloud
Managed PoE for Easy Remote Control: Manage and monitor your network via
Dahua’s DoLynk Care app or through web interface for real-time status, alerts,
and topology views — ideal for multi-site setups.
4 PoE Ports
with 2 Gigabit Uplink Ports: Supports four PoE cameras directly, plus two
uplink ports for connecting routers or additional switches — enabling flexible
CCTV system expansion.
IEEE802.3af/at
& Hi-PoE Support (60 W Budget): Provides power to standard and
high-power IP cameras (including IR or PTZ units) with a maximum total PoE
budget of 60 W for reliable power delivery.
Smart PoE
Watchdog & Long Distance PoE: PoE Watchdog monitors port status and
auto-recovers ports if a camera connection fails, reducing manual resets;
long-distance PoE extends cabling up to 250 m under specific conditions.
Loop
Protection and VLAN Support: Network safety features like loop protection
and VLAN management help prevent broadcast storms and segment traffic for
better performance.
Sturdy
Full-Metal Build & Wide Operating Temperature: Durable metal casing
withstands Bangladesh’s varied conditions and operates reliably from -10 °C to
+55 °C.
Gigabit
Speed with 12 Gbps Switching Capacity: Ensures high-speed connectivity
across all ports for smooth video transmission and NVR integration.
The Dahua DH-CS4006-4GT-60 Cloud Managed PoE Switch
is built for robust CCTV camera networks in Bangladesh, offering smart PoE
management, cloud control, and high-speed Gigabit ports at a competitive PoE
switch price in BD 2026. Its combination of smart functions and reliable
hardware makes it an excellent choice for both residential and professional
surveillance systems. Get the best price in BD 2026 for this high-performance
PoE switch — available at Asiabiz Technology, your trusted source for CCTV
networking hardware and security solutions.
Frequently Asked Questions
(FAQs)
Q: How many cameras can I
connect directly to this switch?
A: You can connect up to 4
PoE IP cameras directly using the PoE ports.
Q: What is “Cloud Managed” PoE?
A: Cloud management means
you can monitor and control the switch remotely via Dahua’s DoLynk Care app or
web portal, receiving real-time updates and alarms.
Q: Can this switch work with
non-Dahua IP cameras?
A: Yes. It supports standard
IEEE802.3af/at PoE protocols, making it compatible with most branded IP
cameras.
Q: Does this switch support long
PoE cable runs?
A: Yes. Long distance PoE
mode supports cabling up to 250 m with reduced bandwidth (10 Mbps).
Q: Is this switch suitable for
outdoor CCTV installations?
A: It is designed for indoor or sheltered network setups (e.g., equipment rooms), but its rugged metal build and operational range handle varied environments.
Get specific details about this product from customers who own it.
