| Basic | ||
| Layer | Layer 2 | |
| Packet Forwarding Rate | 6.55 Mpps | |
| Description of Function Slots | Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo) | |
| PoE Power | Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W | |
| Power Consumption | Idling: ≤8.5 W ; Full load: 265 W | |
| Power Supply | Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A | |
| Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV | |
| Net Weight | 2.47 kg (5.43 lb) | |
| Casing Material | Sheet metal | |
| Hardware | ||
| Long Distance PoE Transmission | Yes | |
| PoE | Yes | |
| Reset Button | 1 | |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | |
| Performance | ||
| MTBF | 64.20 years | |
| VLAN Number | Port-based VLAN | |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z | |
| Feature | ||
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt | |
| PoE Power Consumption Management | Yes | |
| VLAN Function | Port-based VLAN | |
| DHCP Function | DHCP Client | |
| General | ||
| Installation | Desktop mount; rack mount | |
| Certifications | N/A | |

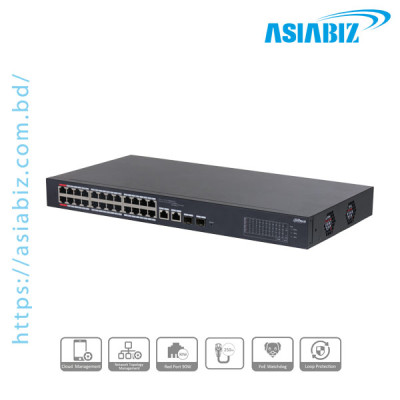

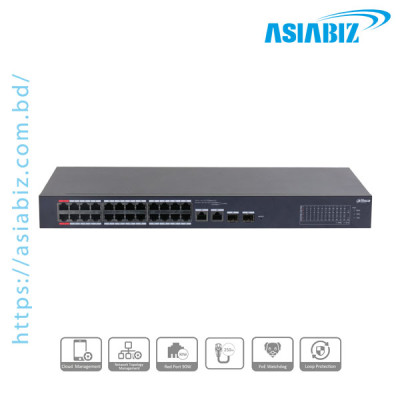

The Dahua DH-CS4226-24ET-240
26-Port with 24-Port Cloud Managed PoE Switch is a professional-grade
cloud-managed PoE network switch designed to support large CCTV camera systems
and PoE devices for residential, office, shop, or commercial security setups in
Bangladesh. This cloud managed PoE switch delivers 24 PoE ports for powering IP
cameras and 2 uplink ports (RJ-45 + SFP combo) for network expansion, offering
both data and power over a single cable for efficient deployment. If you’re
asking *“Which is the best *PoE switch for CCTV cameras in BD 2026?” or “Where to
find a competitive PoE switch price in BD 2026?”, this Dahua model combines
robust performance, intelligent PoE management, and remote cloud control to
streamline network operations. Built to meet industry IEEE networking and PoE
standards, the DH-CS4226-24ET-240 supports IEEE802.3af/at, Hi-PoE and
IEEE802.3bt, with strong total power budget and advanced features like
intelligent PoE, VLAN, long-distance PoE, and PoE Watchdog — all housed in a
dust-proof metal casing for long-lasting reliability in Bangladesh conditions.
Cloud
Managed PoE for Easy Remote Control: Manage your switch and connected PoE
devices anytime via Dahua’s cloud platform or web interface for real-time
status and alerts.
24 PoE Ports
with 2 Gigabit Uplink Ports: Support up to 24 PoE cameras, with uplink
flexibility through gigabit RJ-45 and SFP combo ports for linking to routers or
NVRs.
High PoE
Output Standards (Af/At/Bt/Hi-PoE): Two high-power PoE ports can deliver up
to 90 W each and the rest up to 30 W with a total PoE budget of 240 W,
supporting cameras with PTZ, IR lighting, or audio functions.
Intelligent
PoE with PoE Watchdog & Extend: Smart PoE monitors device status and
automatically resets unresponsive cameras; PoE Extend supports power/data
transmission up to 250 m for flexible deployment.
VLAN &
Network Safety Features: Port-based VLAN, loop protection, LLDP, and DHCP
client improve network stability and segmentation for larger surveillance
systems.
Durable
Build with Wide Temperature Range: Metal housing and wide operating range
(-10 °C to +55 °C) ensure consistent performance in varied environments.
High
Switching Performance: Layer 2 switch with 8.8 Gbps switching capacity and
6.55 Mpps packet forwarding reduces latency across multiple devices.
The Dahua DH-CS4226-24ET-240 Cloud Managed PoE
Switch is ideal for powering and expanding IP camera networks in Bangladesh,
from homes and offices to larger commercial projects. Its cloud-managed PoE
capabilities, high total power budget, and intelligent features like PoE
Watchdog and VLAN make it a strong choice for reliable surveillance system
performance. Get the best price in BD 2026 for this switch at AsiabizTechnology, your trusted supplier for networking hardware, CCTV cameras, NVRs,
and security accessories.
Frequently Asked Questions
(FAQs)
Q: How many cameras can this
switch power?
A: This switch can power up
to 24 PoE IP cameras directly using the PoE ports.
Q: What does “cloud managed”
mean?
A: Cloud-managed means you
can remotely control and monitor the switch and its devices via an app or web
interface, ideal for multi-site management.
Q: Can it support high-power
devices like PTZ cameras?
A: Yes — two ports support
Hi-PoE (90 W) for high-power devices like PTZ cameras, and the rest support
standard PoE.
Q: How far can PoE be extended?
A: With PoE Extend, the
power and data can be delivered up to 250 m (with reduced data speed for long
runs).
Q: Is this switch suitable for
Bangladesh climate conditions?
A: Yes — its metal build and wide operating temperature range make it suitable for local environmental conditions.
