| Ports | ||
| Ports | 4*10/100/1000Base-T PoE ports (Data/ Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
| Transmission Rate | ||
| Transmission Rate | 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
| Networking Standard | ||
| Networking Standard | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x | |
| Power Support | ||
| Power Support | Built-in power supply, AC100~240V 50-60Hz, 1A | |
| Protection Level | ||
| Protection Level | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Physical Specifications | ||
| Physical Specifications | Operation Temp/ Humidity: -20°C~+55°C, 5%~90% RH non condensing Storage Temp/ Humidity: -40°C~+75°C, 5%~95% RH non condensing Dimension (L*W*H): 142.5*115*40mm Net /Gross Weight: 0.55kg/ 0.8kg Installation: Desktop, Wall mounted |
|
| Certification | ||
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS | |
| Warranty | ||
| Warranty | 01 Year warranty | |

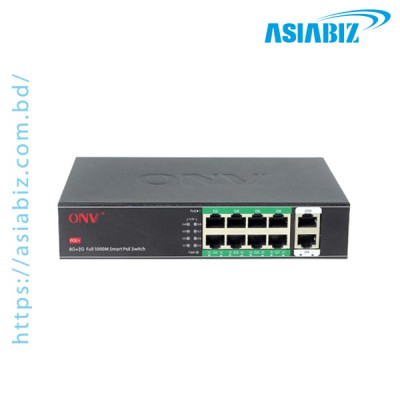

The ONV H3108PS 10-Port Gigabit PoE Switch is a
powerful networking solution designed for CCTV surveillance systems, IP camera
installations, and office networks in Bangladesh. This full Gigabit PoE switch
comes with 8 PoE ports and 2 Gigabit uplink ports, enabling both data
transmission and power supply through a single Ethernet cable. Supporting IEEE
802.3af/at PoE+ with up to 30W power per port and around 96–100W total PoE
budget, it can easily power multiple IP cameras, wireless access points, and
VoIP devices. With 20Gbps switching capacity, long-distance PoE transmission up
to 250 meters, and plug-and-play installation, the ONV-H3108PS is an excellent
choice for homes, shops, offices, warehouses, and enterprise security networks
in Bangladesh.
8 Gigabit
PoE Ports for IP Cameras: The switch includes 8 × 10/100/1000Mbps PoE
ports, allowing you to power and connect multiple IP cameras or PoE devices
using a single Ethernet cable.
2 Dedicated
Gigabit Uplink Ports: Two 10/100/1000Mbps uplink ports connect directly to
NVRs, routers, or other switches without affecting camera bandwidth.
PoE+ Power
up to 30W per Port: Supports IEEE 802.3af/at PoE standards, delivering up
to 30W power per port to run IP cameras, wireless APs, or VoIP devices.
20Gbps
High-Speed Switching Capacity: With 20Gbps switching capacity and 14.88Mpps
forwarding rate, the switch ensures smooth video streaming and stable network
performance.
Long-Distance
Transmission up to 250m: Supports up to 250 meters PoE transmission
distance, ideal for large buildings, warehouses, or outdoor CCTV installations.
Strong Surge
Protection & Metal Body: Equipped with 6KV lightning protection and a
durable metal enclosure, ensuring reliable operation in different environments.
Plug-and-Play
Easy Installation: The ONV-H3108PS works as an unmanaged PoE switch,
meaning no configuration is required—just connect devices and the network
starts instantly.
The ONV H3108PS 10-Port Gigabit PoE Switch is
widely used in CCTV surveillance systems across Bangladesh because it delivers
stable power, fast Gigabit networking, and reliable performance for multiple IP
cameras. Its plug-and-play design, long-distance support, and strong switching
capacity make it a great choice for homes, offices, retail shops, schools, and
warehouse security networks. If you are looking for the best PoE switch price
in BD 2026, you can purchase the ONV H3108PS 10-Port Gigabit PoE Switch at the
best price in BD 2026 from Asiabiz Technology, a trusted supplier of CCTV
cameras, IP cameras, NVR, DVR, PoE switches, and security accessories in
Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the ONV H3108PS price in BD 2026?
A: The
ONV H3108PS price in Bangladesh usually ranges around ৳7,500 – ৳8,200,
depending on supplier and availability.
Q: How many
IP cameras can this PoE switch support?
A: This
switch has 8 PoE ports, so it can directly power up to 8 IP cameras or PoE
devices.
Q: Does ONV
H3108PS support Gigabit speed?
A: Yes.
All 10 ports support 10/100/1000Mbps Gigabit Ethernet, ensuring high-speed
network performance.
Q: Does the
switch support long-distance CCTV transmission?
A: Yes.
The ONV-H3108PS supports up to 250 meters PoE transmission distance using Cat5e
or Cat6 cables.
Q: Is ONV
H3108PS compatible with Dahua or Hikvision cameras?
A: Yes. Because it supports IEEE 802.3af/at PoE standards, it works with most IP camera brands including Dahua, Hikvision, Uniview, and other PoE cameras.
Get specific details about this product from customers who own it.
