| Ports | ||
| Ports | 4*10/100/1000Base-T PoE ports (Data/ Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
| Transmission Rate | ||
| Transmission Rate | 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
| Networking Standard | ||
| Networking Standard | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x | |
| Power Support | ||
| Power Support | Built-in power supply, AC100~240V 50-60Hz, 1A | |
| Protection Level | ||
| Protection Level | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Physical Specifications | ||
| Physical Specifications | Operation Temp/ Humidity: -20°C~+55°C, 5%~90% RH non condensing Storage Temp/ Humidity: -40°C~+75°C, 5%~95% RH non condensing Dimension (L*W*H): 142.5*115*40mm Net /Gross Weight: 0.55kg/ 0.8kg Installation: Desktop, Wall mounted |
|
| Certification | ||
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS | |
| Warranty | ||
| Warranty | 01 Year warranty | |

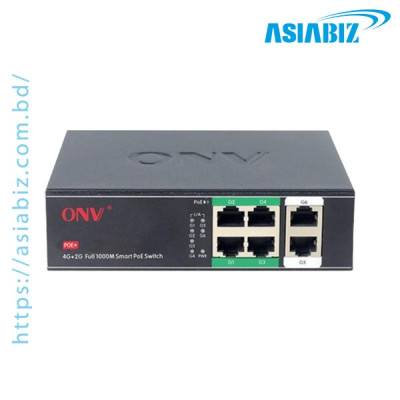

The ONV H3064PS 6-Port Full Gigabit PoE Switch is a
compact and powerful networking device designed for CCTV surveillance systems,
IP camera installations, and small office networks in Bangladesh. This switch
includes 4 Gigabit PoE ports and 2 Gigabit uplink ports, enabling both data and
power transmission through a single Ethernet cable. It supports IEEE 802.3af/at
PoE technology with up to 30W power per port and a total PoE power budget of
around 65W, making it ideal for powering IP cameras, wireless access points,
VoIP phones, and other PoE devices. With 16Gbps switching capacity and
plug-and-play installation, the ONV-H3064PS ensures stable and high-speed
network performance for modern security systems.
4 Gigabit
PoE Ports for CCTV Cameras: Power and connect up to 4 IP cameras or PoE
devices using a single Ethernet cable for both power and data.
2 Dedicated
Gigabit Uplink Ports: The 2×10/100/1000Mbps uplink RJ45 ports allow smooth
connection to NVR systems, routers, or main network switches.
30W Power
per Port (PoE+): Supports IEEE 802.3af/at PoE standard with up to 30W power
output per port and a total PoE budget of around 65W.
High-Speed
16Gbps Switching Capacity: Provides non-blocking 16Gbps switching capacity
for stable HD video streaming from IP cameras.
Plug &
Play Unmanaged Switch: No configuration required—simply connect cameras,
NVR, and router to start your surveillance system instantly.
Durable
Metal Housing with Fanless Design: The switch features a compact metal
casing and fanless cooling, ensuring quiet operation and long-term reliability.
Automatic
PoE Device Detection: The switch can automatically detect compatible PoE
devices such as IP cameras or access points and supply the required power
safely.
The ONV-H3064PS Full Gigabit PoE switch is widely
used in CCTV camera networks, shops, offices, warehouses, and small enterprise
installations because of its reliable power delivery and stable Gigabit networking
performance. It simplifies installation by sending power and data through a
single cable, reducing wiring complexity and cost. If you are looking for the
best PoE switch price in BD 2026, you can purchase this model at the best price
in BD 2026 from Asiabiz Technology, a trusted supplier of CCTV cameras, IP cameras, NVR, DVR, PoE switches, and security accessories in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the ONV H3064PS price in BD 2026?
A: The
ONV-H3064PS price in Bangladesh is typically around ৳4,800 – ৳5,000,
depending on supplier and stock availability.
Q: How many
IP cameras can this PoE switch support?
A: This
switch has 4 PoE ports, so it can directly power up to 4 IP cameras or PoE
devices.
Q: Does the
ONV H3064PS support Gigabit speed?
A: Yes.
All 6 ports support 10/100/1000 Mbps Gigabit Ethernet, ensuring fast and stable
network performance.
Q: Is the
ONV-H3064PS managed or unmanaged?
A: It is
an unmanaged PoE switch, meaning it works in plug-and-play mode without
configuration.
Q: Which is
the best PoE switch for 4 IP cameras in BD 2026?
A: For small CCTV installations, the ONV-H3064PS Gigabit PoE switch is considered a reliable option due to its stable PoE power output, Gigabit uplink ports, and easy installation.
Get specific details about this product from customers who own it.
