| Ports | ||
| Ports | 24*10/100/1000Base-T PoE ports (Data/ Power) 2*1000Base-X uplink SFP fiber ports (Data) |
|
| Transmission Rate | ||
| Transmission Rate | 10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
| Networking Standard | ||
| Networking Standard | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
| Power Support | ||
| Power Support | Built-in power supply, AC100~240V 50-60Hz, 4.1A | |
| Protection Level | ||
| Protection Level | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | ||
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS | |
| Warranty | ||
| Warranty | 01 Year warranty | |

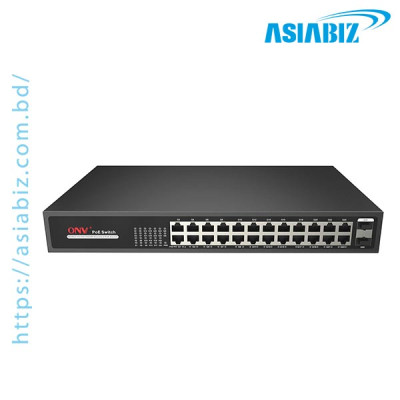

The ONV ONV-H3024PF 24 Port All Gigabit PoE Fiber
Switch is a professional networking solution designed for large IP camera and
CCTV surveillance systems in Bangladesh. This powerful switch features 24
Gigabit PoE ports and 2 Gigabit SFP fiber uplink ports, enabling high-speed
data transmission and stable power supply for multiple devices such as IP
cameras, wireless access points, VoIP phones, and NVR systems. With IEEE
802.3af/at PoE support and up to 30W power per port, it can efficiently power
multiple security devices using a single Ethernet cable. If you are looking for
a reliable PoE switch price in BD 2026 for large surveillance networks, the
ONV-H3024PF offers high performance, durability, and easy deployment.
24 Gigabit
PoE Ports for Large CCTV Systems: Supports up to 24 PoE devices such as IP
cameras or wireless APs, making it ideal for large surveillance installations.
2 Gigabit
SFP Fiber Uplink Ports: Provides high-speed fiber connectivity for
connecting to core networks, NVR systems, or long-distance backbone networks.
High PoE
Power Output (30W per Port): Each port delivers up to 30W PoE power, with a
total PoE power budget of around 250W, ensuring stable power supply to multiple
devices.
Non-Blocking
52Gbps Switching Capacity: Ensures smooth video transmission without lag,
which is important for high-definition CCTV monitoring systems.
Plug &
Play Unmanaged Operation: No complex configuration required. Simply connect
your devices and start your network or CCTV system instantly.
Long
Distance Fiber Networking Support: The SFP fiber ports support single-mode
or multi-mode modules, enabling long-distance network connections up to several
kilometers depending on the module used.
Industrial-Grade
Build and Lightning Protection: Designed with metal housing, 4KV lightning
protection, and wide operating temperature, ensuring reliable performance in
demanding environments.
The ONV-H3024PF PoE fiber switch is widely used in
professional CCTV surveillance systems, enterprise networks, factories, hotels,
and campus environments because it offers reliable power delivery and
high-speed data transmission. It can power many IP cameras while maintaining
stable network performance. If you are searching for the best PoE switch for
CCTV cameras in BD 2026, this model provides excellent performance and
scalability. You can purchase it at the best price in BD 2026 from Asiabiz Technology, a trusted supplier of CCTV cameras, IP cameras, PoE switches, NVR,
DVR, and security accessories in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is the ONV-H3024PF price in BD 2026?
A: The
ONV-H3024PF price in Bangladesh may vary depending on supply and distributor
pricing. Contact Asiabiz Technology for the latest price and availability.
Q: How many
IP cameras can this PoE switch support?
A: This
switch supports up to 24 PoE devices, making it suitable for medium to large
CCTV surveillance systems.
Q: Does this
switch support fiber connection?
A: Yes.
It includes 2 Gigabit SFP fiber ports that allow high-speed fiber networking
for long-distance connections.
Q: What is
the maximum PoE power per port?
A: Each
PoE port can provide up to 30W power, while the total PoE budget is
approximately 250W.
Q: Which is
the best PoE switch for large CCTV systems in BD 2026?
A: For large installations, 24-port PoE switches like the ONV-H3024PF are ideal because they provide high power output, fiber uplink connectivity, and stable network performance.
