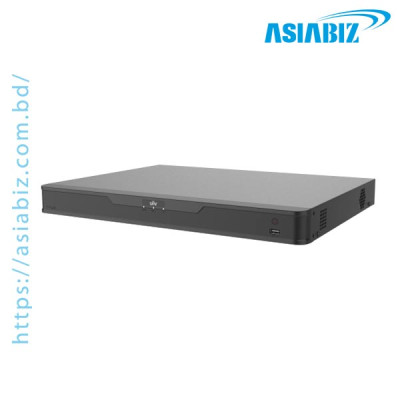

-400x400.jpg "Uniview NVR304-16B-IQ 16 Channel 4K Network Video Recoder (NVR)")
Cash Discount Price
Online / Cash Payment
| Video/Audio Input | ||
| IP Video Input | 16-ch | |
| RCA Audio Input | 1-ch | |
| Video/Audio Output | ||
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| RCA Audio Output | 1-ch | |
| Liveview Display | 1/4/6/8/9/16 | |
| Decoding | ||
| Decoding Format | Ultra 265,H.265,H.264 | |
| Decoding Capability | Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
|
| Audio Compression | G.711A, G.711U | |
| Network | ||
| Incoming Bandwidth | 160 Mbps | |
| Outgoing Bandwidth | 128Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP | |
| Two-way Audio | ||
| Two-way Audio | 1-ch,RCA(Using the audio input and output) | |
| Recording | ||
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |
| Synchronous Playback in Local | 16-ch | |
| Hard Disk | ||
| SATA | 4 SATA Interfaces | |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C) | |
| Smart | ||
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring | |
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) | |
| Alarm | ||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface | |
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 | |
| Alarm In | N/A | |
| Alarm Out | N/A | |
| General | ||
| Power Supply | DC 12 V/5 A | |
| Certification | ||
| Certification | CE; FCC; UL; RoHS; WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
The Uniview NVR304-16B-IQ 16 Channel 4K Network
Video Recorder (NVR) is a professional-grade CCTV recording system designed for
homes, shops, offices, warehouses, and commercial surveillance setups in
Bangladesh. This 16-channel NVR supports Ultra 265/H.265/H.264 video
compression, 4K Ultra HD HDMI output, and up to 12 MP resolution recording,
giving you high-quality footage and efficient storage management — ideal when
asking *“Which *16-channel NVR is best for CCTV in BD 2026?” or “Where to find
a reliable NVR price in BD 2026?” Its 16-channel input support, ONVIF + RTSP
compatibility, ANR technology for recording reliability, and cloud-upgrade
support make it a robust choice for scalable CCTV systems.
16-Channel
IP Camera Support: Connect up to 16 cameras simultaneously — giving you
full coverage for entrances, perimeters, and interior zones.
4K Ultra HD
HDMI Output: Supports HDMI output up to 4K (3840×2160) for crisp live
viewing and playback on modern displays.
Efficient
Video Compression (Ultra 265/H.265/H.264): Advanced compression reduces
storage space and bandwidth while maintaining sharp video quality.
Up to 12 MP
Recording Resolution: Records video streams up to 12 megapixels, delivering
detailed footage that helps identify faces, vehicles, and events more
accurately.
Built-In PoE
Support (Plug & Play): The recorder includes 16 independent PoE network
interfaces (on the “P16” variant), enabling plug-and-play camera connection
with power and data over one cable — great for tidy installations (note: verify
your exact model’s PoE setup).
ANR
Technology for Storage Reliability: Automatic Network Replenishment (ANR)
ensures cameras continue to save footage locally if the network drops, syncing
back to the NVR when connectivity returns.
Simultaneous
HDMI + VGA Outputs: Supports both HDMI and VGA outputs at once, so you can
use modern 4K screens and standard monitors for live viewing or playback.
ONVIF + RTSP
Compatibility: Integrates with ONVIF-compliant and RTSP-supported IP
cameras from multiple brands for flexible CCTV system design.
The Uniview NVR304-16B-IQ 16 Channel 4K Network
Video Recorder delivers high-resolution recording, 4K output, smart
compression, and flexible connectivity — making it a dependable backbone for
modern CCTV systems in Bangladesh. Its support for multiple camera brands
(ONVIF), ANR reliability, and large storage options (up to four HDDs) help you
build scalable, long-term surveillance solutions for homes, businesses, or
offices. Best price in BD 2026 is available at Asiabiz Technology, your trusted
ecommerce partner for NVRs, IP cameras, PoE networking gear, and complete CCTV
security solutions.
Frequently
Asked Questions (FAQs)
Q: How many
cameras can this NVR record?
A: It
supports up to 16 IP camera channels for simultaneous recording and live
monitoring.
Q: What’s
the maximum video quality it handles?
A: The
NVR supports recording up to 12 MP resolution and outputs up to 4K Ultra HD on
HDMI.
Q: Is remote
monitoring supported?
A: Yes —
it supports remote access via network, app, or browser.
Q: Will it
work with cameras from different brands?
A: Yes —
it’s compatible with ONVIF and RTSP-supported cameras, allowing flexible camera
choices.
Q: Can this
recorder continue recording if the network fails?
A: Yes — ANR technology helps maintain recording on camera microSD cards when the network disconnects and syncs later.
Get specific details about this product from customers who own it.
