| Video/Audio Input | ||
| IP Video Input | 16-ch |
|
| RCA Audio Input | 1-ch, 3.5mm | |
| Video/Audio Output | ||
| HDMI Output | 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| RCA Audio Output | 1-ch, 3.5mm | |
| Liveview Display | 1/4/6/8/9/16 | |
| Decoding | ||
| Decoding Format | Ultra 265/H.265/H.264 | |
| Decoding Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25 |
|
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Compression | G.711A, G.711U | |
| Network | ||
| Incoming Bandwidth | 64Mbps | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP | |
| Recording | ||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Synchronous Playback in Local | 16-ch | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
|
| Smart | ||
| Smart by IPC | Total 4-ch | |
| Alarm | ||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB | Rear panel: 2 x USB2.0 | |
| Alarm In | NA | |
| Alarm Out | NA | |
| General | ||
| Power Supply | 12V DC | |
| Certification | ||
| Certification | CE, FCC, UL, RoHS, WEEE | |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |

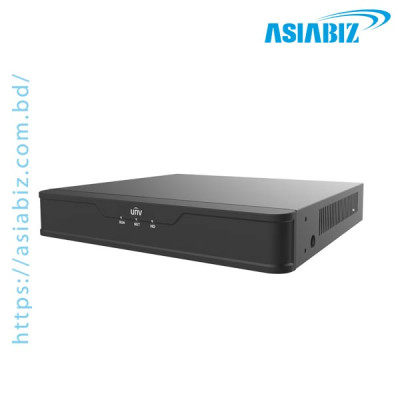

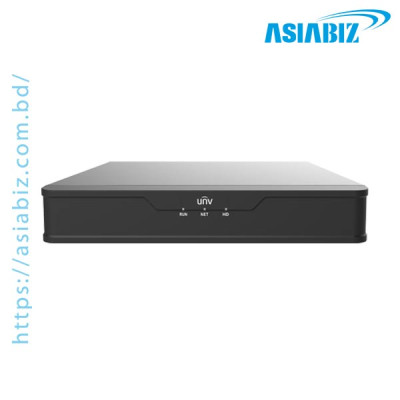

The Uniview NVR301-16S3 16 Channel 4K Network Video
Recorder (NVR) is a powerful, multi-camera CCTV recorder designed for homes,
shops, offices, warehouses, and commercial security systems in Bangladesh. This
16-channel NVR supports Ultra 265/H.265/H.264 video compression, lets you
record and manage up to 16 IP cameras simultaneously, and provides 4K Ultra HD
output for high-clarity live viewing and playback — perfect if you’re asking
*“Which *16-channel NVR is best for CCTV in BD 2026?” or “Where can I find a
reliable NVR price in BD 2026?” It supports remote access, ONVIF-enabled camera
integration, smart analytics features, and flexible monitor output options,
giving you a complete recording and monitoring solution.
16-Channel
IP Camera Support: Supports up to 16 IP cameras for simultaneous real-time
recording and live monitoring — ideal for large homes, offices, and business
premises.
4K Ultra HD
Output & Playback: Delivers crisp 4K resolution (3840×2160) via HDMI
output for detailed live view and playback on modern displays.
Efficient
Video Compression (Ultra 265/H.265/H.264): Advanced compression formats
reduce storage space and network bandwidth usage while preserving high-quality
recordings.
Wide
Recording Resolution Support: Compatible with various camera resolutions
including 4K, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, and more — letting you mix
and match camera types based on security needs.
Smart
Detection & Analytics: Includes face detection, intrusion detection,
cross-line detection, people counting, and other smart features to reduce false
alarms and enhance security responses.
Multiple
Display Modes: Live-view supports 1/4/6/8/9/16 split screens, so you can
monitor all camera feeds efficiently.
Dual Output
(HDMI + VGA): Connect both HDMI and VGA monitors simultaneously for
flexible surveillance setups.
Remote
Monitoring & Network Access: Supports remote viewing and playback via
smartphone apps or PC software using standard protocols like P2P, UPnP, DHCP,
DDNS, HTTP/HTTPS, and RTSP.
The Uniview NVR301-16S3 16 Channel 4K Network Video
Recorder is ideal for Bangladesh CCTV systems that require multi-camera
coverage, high resolution recording, efficient compression, and smart
monitoring features. Its support for ONVIF cameras lets you choose from brands,
while network protocols and remote access help you monitor from anywhere.
Whether securing a large home, retail store, or office, this NVR gives you
dependable performance with modern convenience. Best price in BD 2026 is
available at Asiabiz Technology, your trusted provider of NVRs, IP cameras, PoE
switches, and full CCTV security solutions.
Frequently
Asked Questions (FAQs)
Q: How many
cameras can this NVR support?
A: It
supports up to 16 IP camera channels for live view and recording.
Q: Can it
display 4K resolution on a monitor?
A: Yes —
it supports 4K HDMI output (3840×2160) @ 30 Hz for ultra-clear monitoring.
Q: Does it
support remote access?
A: Yes —
you can view live feeds and playback via mobile apps or PC using standard
network protocols.
Q: What
video formats are supported?
A: It
supports Ultra 265, H.265, and H.264, helping reduce storage and bandwidth
usage.
Q: Can I use
cameras from other brands?
A: Yes — it’s ONVIF-compatible, so it integrates with most IP cameras.
Get specific details about this product from customers who own it.
