| Video/Audio Input | ||
| IP Video Input | 16-ch | |
| RCA Audio Input | 1-ch | |
| Video/Audio Output | ||
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |
| RCA Audio Output | 1-ch | |
| Liveview Display | 1/4/6/8/9/16 | |
| Decoding | ||
| Decoding Format | Ultra 265, H.265, H.264 | |
| Decoding Capability | 2 x 4K@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 | |
| Audio Compression | G.711A, G.711U | |
| Network | ||
| Incoming Bandwidth | 160 Mbps | |
| Outgoing Bandwidth | 64 Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv4 | |
| Two-way Audio | ||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | |
| Recording | ||
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |
| Synchronous Playback in Local | 16-ch | |
| Hard Disk | ||
| SATA | 4 SATA Interfaces | |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) | |
| Smart | ||
| Smart by IPC | Total 8-ch(Face Detection, SIP, UMD) | |
| Alarm | ||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface | |
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0, Front panel: 1 × USB2.0 | |
| Alarm In | N/A | |
| Alarm Out | N/A | |
| General | ||
| Power Supply | DC 12 V/5 A | |
| Certification | ||
| Certification | CE; FCC; UL; RoHS; WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |

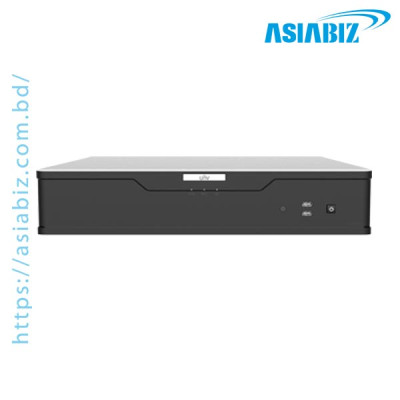

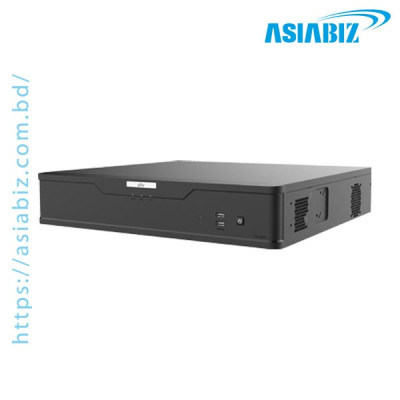

The Uniview NVR304-16S 16 Channel 4K Network Video
Recorder (NVR) is a high-capacity professional CCTV recorder made for homes,
shops, offices, warehouses, and medium to large security systems in Bangladesh.
This 16-channel NVR supports Ultra 265/H.265/H.264 video compression, 4K Ultra
HD output, and ONVIF-compatible IP cameras, giving you crisp recording and
flexible monitoring options — ideal when asking *“Which *16-ch NVR is best for
CCTV in BD 2026?” or “Where to find a reliable NVR price in BD 2026?” Its
support for up to four SATA HDDs and advanced smart analytics features make it
robust enough for 24/7 surveillance and long-term footage storage.
16-Channel
IP Camera Input: Supports up to 16 IP cameras simultaneously — perfect for
extensive coverage across larger properties and multiple vantage points.
4K Ultra HD
Output: Supports HDMI output up to 4K (3840×2160) @30 Hz and VGA,
delivering exceptionally clear live views and playback on high-resolution
screens.
Efficient
Video Compression (Ultra 265/H.265/H.264): Advanced codecs reduce storage
use and bandwidth while keeping footage clear and detailed for long-term
recording.
Support for
High-Resolution Recording: Records streams up to 8 MP and 4K camera input,
giving detailed video suitable for identifying faces and events.
Multi-Screen
Display & Playback: Live view supports 1/4/6/8/9/16 splits and up to 36
screens, helping you monitor all cameras at once.
Smart
Analytics & Detection: Works with camera-based smart features like
intrusion detection, cross-line detection, people counting, scene change
detection, and more — helping you focus on relevant events.
Large
Storage Capacity: Supports up to four SATA HDDs (each up to several
terabytes, depending on setup), letting you keep longer retention periods
without frequent overwrite.
Remote
Access & Connectivity: Supports P2P, UPnP, DHCP, DDNS, HTTP/S network
protocols with up to 128 remote users, enabling mobile or PC remote viewing for
peace of mind.
The Uniview NVR304-16S 16 Channel 4K Network Video
Recorder is ideal for CCTV systems in Bangladesh that need multi-camera
recording, high-resolution video, efficient compression, and advanced smart
analytics. Its support for 4K output, ONVIF camera integration, broad codec
compatibility, and scalable storage makes it suitable for residential
properties and commercial setups like offices and retail stores. Best price in
BD 2026 is available at Asiabiz Technology, your trusted ecommerce provider for
NVRs, IP cameras, PoE switches, and complete CCTV security solutions.
Frequently
Asked Questions (FAQs)
Q: How many
cameras can this NVR support?
A: It
supports up to 16 IP camera channels for recording and monitoring.
Q: What
video resolutions does it handle?
A: It
can record and playback up to 8 MP and receive 4K camera streams, providing
clear and detailed footage.
Q: Can I
view footage remotely?
A: Yes —
remote access is supported via standard protocols and apps, allowing monitoring
on smartphones or PC.
Q: What
storage capacity is supported?
A: It
supports four SATA HDD interfaces, typically accommodating multiple terabytes
per drive for extended footage retention.
Q: Will this
work with cameras from different brands?
A: Yes — it’s ONVIF-compatible, so it can integrate with many third-party IP cameras.
Get specific details about this product from customers who own it.
