| Ports | ||
| Ports | PoE (1~3):10/100Mbps PoE ports (RJ45) PoE (4):10/100Mbps PoE port (RJ45),Support bt 60W High Power LAN (5~6):10/100Mbps uplink ports (RJ45) |
|
| Transmission Rate | ||
| Transmission Rate | 10/100Mbps: Full Duplex / Half Duplex | |
| Performance Specification | ||
| Performance Specification | Bandwidth:1.2Gbps Network Latency (10 to 100Mbps): ≦16μs (use the 64byte package size) MAC address table: 2K Packet Forwarding Rate: 0.9Mpps |
|
| Networking Standard | ||
| Networking Standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
|
| Power Support | ||
| Power Support | Power Input: AC 90~240V Total≤65W AI Watchdog: Port 1~4 Power Output: PoE1~3 Port:1/2(+52V),3/6(GND)≤30W PoE 4 Port:1245(+52V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
|
| Protection Level | ||
| Protection Level | Lightning Protection:6KV ESD Protection:8KV |
|
| Physical Specifications | ||
| Physical Specifications | Size(L*W*H): 190mm*80mm*36mm, Weight: 0.5KG | |
| Working Environment | ||
| Working Environment | Operating Temperature: -30°C~60°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
|
| Certification | ||
| Certification | CE FCC RoHS 2.0 |
|
| Package Content | ||
| Package Content | AC Power Cable, User Manual |
|
| Warranty | ||
| Warranty | 01 Year warranty | |

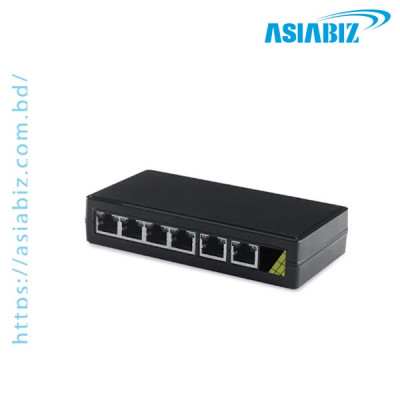

The Geneta GNT‑ES06ED‑P 4 Port AI
PoE Switch is a reliable networking device designed for IP camera and CCTV
surveillance systems in Bangladesh. This 4-port AI PoE switch allows you to
connect and power multiple IP cameras, wireless access points, and network
devices using a single Ethernet cable. With 4 PoE ports and 2 uplink ports, the
switch delivers stable data transmission and power supply simultaneously. It
supports IEEE 802.3af/at/bt PoE standards, making it compatible with most
modern surveillance cameras and network devices. Equipped with AI Watchdog
function, 65W power supply, and lightning protection, this switch ensures
continuous and secure operation for home, office, or commercial security
networks. If you are searching for a PoE switch for CCTV cameras in Bangladesh,
this model is a powerful and affordable option for expanding your surveillance
system.
4 PoE Ports
for IP Cameras: The switch includes 4 × 10/100Mbps PoE ports, allowing you
to connect and power multiple IP cameras or network devices through a single
cable.
2 Uplink
Ports for Network Expansion: It also provides 2 × 10/100Mbps uplink ports
to connect the switch to a router, NVR, or another network switch easily.
Total 65W
PoE Power Budget: The device delivers up to 65W total power, with up to 30W
per port and 60W high-power support on one port, ensuring stable power for
surveillance cameras.
AI Watchdog
Auto Recovery: The built-in AI Watchdog function automatically detects and
restarts unresponsive IP cameras, helping maintain uninterrupted security
monitoring.
Stable
Transmission Distance: Supports up to 130 meters transmission distance,
making it suitable for CCTV installations across offices, shops, and buildings.
Strong
Lightning & ESD Protection: With 6KV lightning protection and 8KV
electrostatic protection, the switch protects your network equipment from
electrical surges.
Durable
Industrial Design: Built with a sturdy metal body and capable of operating
in −30°C to 60°C environments, making it reliable for different installation
conditions.
The Geneta GNT-ES06ED-P 4 Port AI PoE Switch is
widely used for CCTV camera installations, IP surveillance systems, and small
office networks in Bangladesh. Its plug-and-play design, strong PoE power
output, and AI watchdog technology make it ideal for stable surveillance
networking. Whether you are installing cameras in a shop, office, warehouse, or
home, this switch ensures reliable connectivity and power delivery. You can get
the best price in BD 2026 with genuine warranty and professional support from
Asiabiz Technology, a trusted supplier of CCTV cameras, IP cameras, NVR, DVR,
and networking accessories in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the Geneta GNT-ES06ED-P used for?
A: It is
used to power and connect IP cameras, wireless access points, and network
devices through Ethernet cables using PoE technology.
Q: How many
cameras can this PoE switch support?
A: The
switch has 4 PoE ports, so it can support up to 4 IP cameras directly.
Q: Does the
switch support PoE standards?
A: Yes.
It supports IEEE 802.3af, 802.3at, and 802.3bt PoE standards, making it
compatible with most IP cameras.
Q: What is
the maximum transmission distance?
A: The
switch supports up to 130 meters network transmission distance depending on
cable quality.
Q: Which PoE
switch is best for CCTV cameras in BD 2026?
A: For small CCTV installations, the Geneta GNT-ES06ED-P 4 Port AI PoE Switch is a great option due to its AI watchdog feature, reliable power output, and affordable price.
