| Ports | ||
| Ports | PoE (1~6):10/100Mbps PoE ports (RJ45) PoE (7~8):10/100Mbps PoE ports (RJ45),Support bt 60W High Power LAN(9~10):10/100Mbps uplink ports (RJ45) |
|
| Transmission Rate | ||
| Transmission Rate | 10/100Mbps: Full Duplex / Half Duplex | |
| Performance Specification | ||
| Performance Specification | Bandwidth:2.0Gbps Network Latency (10 to 100Mbps): ≦16μs (use the 64byte package size) MAC address table: 2K Packet Forwarding Rate: 1.5Mpps |
|
| Networking Standard | ||
| Networking Standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
|
| Power Support | ||
| Power Support | Power Input: AC 90~240V Total≤120W AI Watchdog: Port 1~8 Power Output: PoE 1~6 Port:1/2(+52V),3/6(GND)≤30W PoE 7~8 Port:1245(+52V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
|
| Protection Level | ||
| Protection Level | Lightning Protection: 6KV ESD Protection: 8KV |
|
| Physical Specifications | ||
| Physical Specifications | Size(L*W*H): 190mm*140mm*43mm, Weight: 1.0KG | |
| Working Environment | ||
| Working Environment | Operating Temperature: -30°C~60°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
|
| Certification | ||
| Certification | CE FCC RoHS 2.0 |
|
| Package Content | ||
| Package Content | AC cable intergrated with main body, User Manual |
|
| Warranty | ||
| Warranty | 01 Year warranty | |

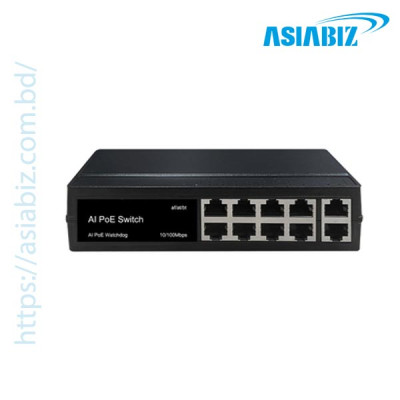

The Geneta GNT‑P9210EB 8 Port AI PoE Switch is a
powerful networking device designed for IP camera surveillance systems,
offices, and commercial security networks in Bangladesh. This 8-port AI PoE
switch allows you to power and connect multiple IP cameras, wireless access
points, and network devices using a single Ethernet cable. With 8 PoE ports and
2 uplink ports, the switch delivers reliable data transmission and stable power
supply for CCTV installations. It supports IEEE 802.3af/at/bt PoE standards and
provides a total power budget of up to 120W, making it suitable for
medium-scale surveillance systems. Equipped with AI Watchdog technology,
lightning protection, and durable metal housing, the switch ensures continuous
monitoring performance for homes, shops, offices, and warehouses.
8 PoE Ports
for IP Cameras and Network Devices: The switch features 8 × 10/100Mbps PoE
ports, allowing you to connect and power multiple IP cameras, VoIP phones, or
wireless access points through a single cable.
2 Uplink
Ports for Network Connectivity: It includes 2 × 10/100Mbps uplink ports
that connect the switch to an NVR, router, or core network switch, ensuring
stable communication within your network.
High 120W
Total PoE Power Budget: The switch delivers up to 120W total power output,
supporting multiple surveillance cameras with stable PoE supply for long-term
operation.
60W
High-Power Ports for Advanced Devices: Ports 7 and 8 support IEEE 802.3bt
up to 60W, allowing connection to high-power devices like PTZ cameras or
high-performance access points.
AI Watchdog
Automatic Recovery: The built-in AI Watchdog function automatically detects
and restarts unresponsive IP cameras, ensuring uninterrupted surveillance
operation.
Strong
Lightning and Surge Protection: With 6KV lightning protection and 8KV
electrostatic protection, the switch protects your devices from electrical
damage and voltage spikes.
Long
Transmission Distance up to 130m: Supports stable network transmission up
to 130 meters, ideal for connecting cameras across buildings, offices, or
warehouses.
The Geneta GNT-P9210EB 8 Port AI PoE Switch is
widely used for CCTV camera installations, office networking, and security
surveillance systems in Bangladesh. Its plug-and-play setup, powerful PoE
output, AI watchdog system, and surge protection make it a dependable solution
for professional surveillance networks. Whether you are installing cameras in a
shop, office, factory, or home, this switch ensures reliable connectivity and
stable power delivery. You can get the best price in BD 2026 with genuine
warranty and professional support from Asiabiz Technology, a trusted supplier
of CCTV cameras, IP cameras, DVR, NVR, PoE switches, and security accessories
in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the Geneta GNT-P9210EB used for?
A: This
device is used to power and connect IP cameras or network devices using PoE
technology, commonly used in CCTV surveillance systems.
Q: How many
IP cameras can this PoE switch support?
A: It
can support up to 8 IP cameras through its PoE ports, depending on the total
power consumption.
Q: Does the
switch support high-power PoE devices?
A: Yes.
Ports 7 and 8 support up to 60W PoE output, making it suitable for PTZ cameras
and high-power devices.
Q: What is
the maximum transmission distance?
A: The
switch supports up to 130 meters transmission distance using standard Ethernet
cables.
Q: Which PoE
switch is best for CCTV cameras in BD 2026?
A: For medium-size CCTV systems, the Geneta GNT-P9210EB 8 Port AI PoE Switch is a great choice due to its 120W power budget, AI watchdog feature, and reliable network performance.
Get specific details about this product from customers who own it.
