| Ports | ||
| Ports | PoE (1~6):10/100Mbps PoE ports (RJ45) PoE (7~8):10/100Mbps PoE ports (RJ45),Support bt 60W High Power LAN(1~2):10/100Mbps uplink ports (RJ45) |
|
| Transmission Rate | ||
| Transmission Rate | 10/100Mbps: Full Duplex / Half Duplex | |
| Performance Specification | ||
| Performance Specification | Bandwidth:2.0Gbps Network Latency (10 to 100Mbps): ≦16μs (use the 64byte package size) MAC address table: 2K Packet Forwarding Rate: 1.5Mpps |
|
| Networking Standard | ||
| Networking Standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
|
| Power Support | ||
| Power Support | Power Input: AC 90~240V Total≤120W AI Watchdog: Port 1~8 Power Output: PoE 1~6 Port:1/2(+52V),3/6(GND)≤30W PoE 7~8 Port:1245(+52V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
|
| Protection Level | ||
| Protection Level | Lightning Protection: 6KV ESD Protection: 8KV |
|
| Physical Specifications | ||
| Physical Specifications | Size(L*W*H): 190mm*140mm*43mm, Weight: 1.0KG | |
| Working Environment | ||
| Working Environment | Operating Temperature: -30°C~60°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
|
| Certification | ||
| Certification | CE FCC RoHS 2.0 |
|
| Package Content | ||
| Package Content | AC Power Cable,User Manual |
|
| Warranty | ||
| Warranty | 01 Year warranty | |

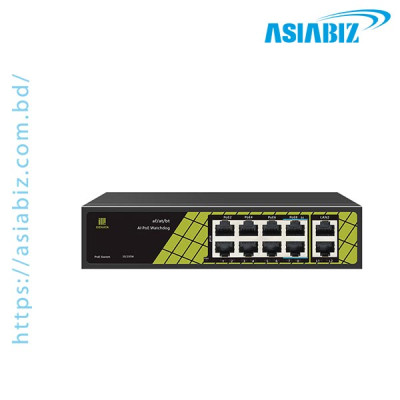

The Geneta GNT-P9828V6 8 Port AI PoE Switch is a
powerful networking solution designed for IP camera surveillance systems,
offices, and commercial security installations in Bangladesh. This advanced
8-port AI PoE switch allows you to connect and power multiple IP cameras,
wireless access points, and network devices through a single Ethernet cable. It
features 8 PoE ports and 2 uplink ports, delivering reliable data transmission
and stable power for CCTV systems. With a 120W total PoE power budget, AI
Watchdog technology, and strong lightning protection, the switch ensures
uninterrupted security monitoring for homes, shops, offices, warehouses, and
factories. If you are looking for a high-performance PoE switch for CCTV
cameras in Bangladesh, this model is a reliable and affordable choice for
expanding your surveillance network.
8 PoE Ports
for IP Cameras: The switch provides 8 × 10/100Mbps PoE ports, allowing you
to connect and power multiple IP cameras or network devices using a single
Ethernet cable.
2 Uplink
Ports for Network Expansion: It includes 2 × 100Mbps uplink ports for
connecting the switch to a router, NVR, or another network switch, ensuring
smooth communication across your network.
120W Total
PoE Power Budget: With up to 120W power output, the switch can support
several surveillance cameras simultaneously without performance issues.
60W
High-Power Ports for PTZ Cameras: Ports 7 and 8 support up to 60W PoE (IEEE
802.3bt), making them ideal for PTZ cameras or high-power devices.
AI Watchdog
Auto-Recovery: The built-in AI Watchdog feature automatically detects and
restarts unresponsive cameras, ensuring continuous surveillance operation.
Long
Distance Transmission up to 130m: Supports up to 130 meters network
transmission, making it suitable for larger CCTV installations across offices
or buildings.
Strong
Lightning and Surge Protection: Equipped with 6KV lightning protection and
8KV ESD protection, safeguarding your devices from electrical surges and static
discharge.
The Geneta GNT-P9828V6 8 Port AI PoE Switch is
widely used in CCTV surveillance systems, office networking, and commercial
security installations across Bangladesh. Its AI watchdog system, powerful PoE
output, and strong surge protection make it a dependable choice for
professional installers and security integrators. Whether you are setting up
cameras in a home, shop, warehouse, or office, this switch ensures stable
connectivity and efficient power delivery. You can get the best price in BD
2026 with genuine warranty and technical support from Asiabiz Technology, a
trusted supplier of CCTV cameras, IP cameras, DVR, NVR, PoE switches, and
security accessories in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the Geneta GNT-P9828V6 used for?
A: This
device is used to power and connect IP cameras or other network devices through
PoE technology, commonly used in CCTV surveillance systems.
Q: How many
cameras can this PoE switch support?
A: It
supports up to 8 IP cameras through its PoE ports, depending on each camera’s
power consumption.
Q: Does this
switch support high-power PoE devices?
A: Yes.
Ports 7 and 8 support up to 60W PoE, making them suitable for PTZ cameras and
high-power devices.
Q: What is
the maximum transmission distance?
A: The
switch supports up to 130 meters transmission distance with standard Ethernet
cables.
Q: Which PoE
switch is best for CCTV cameras in BD 2026?
A: For medium-size surveillance setups, the Geneta GNT-P9828V6 8 Port AI PoE Switch is one of the best options due to its 120W power budget, AI watchdog function, and reliable networking performance.
