| Ports | ||
| Ports | PoE (1~3):10/100/1000Mbps PoE ports (RJ45) PoE (4):10/100/1000Mbps PoE port (RJ45), Support bt 60W High Power LAN:10/100/1000Mbps uplink port (RJ45) |
|
| Transmission Rate | ||
| Transmission Rate | 1000Mbps: Full Duplex Only 10/100Mbps: Full Duplex / Half Duplex |
|
| Performance Specification | ||
| Performance Specification | Bandwidth: 10Gbps Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size) MAC address table: 8K Packet Forwarding Rate: 7.4Mpps |
|
| Networking Standard | ||
| Networking Standard | IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
|
| Power Support | ||
| Power Support | Power Input: PoE ≤ 60W AI Watchdog: Port 1~4 Power Output: PoE1~3 Port:1/2(+52V),3/6(GND)≤30W PoE 4 Port:1245(+52V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
|
| Protection Level | ||
| Protection Level | Lightning Protection:6KV, ESD Protection:8KV, |
|
| Physical Specifications | ||
| Physical Specifications | Size(L*W*H): 130*67*26mm, Weight: 0.45KG Indoor 228*168*68mm, Weight: 1.0KG Outdoor |
|
| Working Environment | ||
| Working Environment | Operating Temperature: -30°C~60°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
|
| Certification | ||
| Certification | CE FCC RoHS 2.0 |
|
| Package Content | ||
| Package Content | User Manual |
|
| Warranty | ||
| Warranty | 01 Year warranty | |

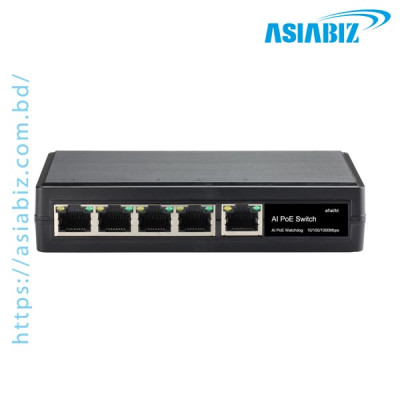

The Geneta GNT‑69P51G6 4 Port Extend PoE Switch
is a compact and powerful networking device designed for IP camera surveillance
systems and network expansion in Bangladesh. This 4-port extend PoE switch
allows you to power and connect multiple IP cameras, wireless access points, or
network devices using a single Ethernet cable. It features 4 Gigabit PoE ports
and 1 Gigabit uplink port, delivering stable data transmission and reliable
power distribution for CCTV installations. With support for IEEE 802.3af/at/bt
PoE standards, 60W power budget, AI Watchdog technology, and lightning
protection, the switch ensures smooth and uninterrupted surveillance
performance. If you are searching for a PoE switch for CCTV cameras or network
extension in Bangladesh, this device is an efficient and affordable solution
for homes, shops, offices, and security systems.
4 Gigabit
PoE Ports for IP Cameras: The switch provides 4 × 10/100/1000Mbps PoE
ports, enabling you to connect and power multiple IP cameras or network devices
simultaneously.
1 Gigabit
Uplink Port for Network Connection: It includes 1 × Gigabit uplink port
that connects directly to an NVR, router, or core network switch for stable
data communication.
60W Total
PoE Power Budget: The switch supports a total PoE output of up to 60W, with
ports 1–3 delivering up to 30W and port 4 supporting high-power 60W PoE for
demanding devices.
AI Watchdog
Automatic Recovery: The AI Watchdog function automatically detects and
restarts unresponsive IP cameras, ensuring continuous monitoring without manual
intervention.
Long
Transmission Distance up to 130m: Supports up to 130 meters network
transmission distance, and cascading multiple devices can extend the coverage
even further.
Advanced
Lightning and Surge Protection: Built with 6KV lightning protection and 8KV
electrostatic discharge protection, safeguarding connected devices from
electrical damage.
Compact and
Fanless Design: The switch features a compact, fanless desktop design that
operates silently and is suitable for indoor CCTV installations.
The Geneta GNT-69P51G6 4 Port Extend PoE Switch is
widely used in CCTV surveillance networks and small business security systems
across Bangladesh. Its Gigabit speed, PoE extension capability, AI watchdog
feature, and durable protection system make it an excellent choice for
professional installers and home users. Whether you are installing cameras in a
shop, office, warehouse, or residential building, this switch ensures stable
connectivity and efficient power distribution. You can get the best price in BD
2026 with genuine warranty and technical support from Asiabiz Technology, a
trusted supplier of CCTV cameras, IP cameras, DVR, NVR, PoE switches, and
networking accessories in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the Geneta GNT-69P51G6 used for?
A: It is
used to power and connect IP cameras or network devices using PoE technology,
commonly used in CCTV surveillance systems.
Q: How many
IP cameras can this switch support?
A: This
switch supports up to 4 IP cameras through its PoE ports.
Q: Does the
switch support high-power PoE devices?
A: Yes.
Port 4 supports up to 60W PoE (IEEE 802.3bt), making it suitable for PTZ
cameras or high-power devices.
Q: What is
the maximum transmission distance?
A: The
switch supports up to 130 meters transmission distance, and cascading multiple
switches can extend the network range further.
Q: Which PoE
switch is best for small CCTV systems in BD 2026?
A: For small surveillance installations, the Geneta GNT-69P51G6 4 Port Extend PoE Switch is a reliable option due to its Gigabit ports, AI watchdog, and 60W power output.
