| Ports | ||
| Ports | PoE (1~6):10/100/1000Mbps PoE ports (RJ45) PoE (7~8):10/100/1000Mbps PoE ports (RJ45),Support bt 60W High Power LAN(1~2):10/100/1000Mbps uplink ports (RJ45) SFP(1~2):10/100/1000Mbps SFP ports |
|
| Transmission Rate | ||
| Transmission Rate | 1000Mbps: Full Duplex Only 10/100Mbps: Full Duplex / Half Duplex |
|
| Performance Specification | ||
| Performance Specification | Bandwidth:24Gbps Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size) MAC address table: 8K Packet Forwarding Rate: 17.9Mpps |
|
| Networking Standard | ||
| Networking Standard | IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
|
| Power Support | ||
| Power Support | Power Input: AC 90~240V Total≤120W AI Watchdog: Port 1~8 Power Output: PoE1~6 Port:1/2(+52V),3/6(GND)≤30W PoE7~8 Port:1245(+52V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
|
| Protection Level | ||
| Protection Level | Lightning Protection:6KV ESD Protection:8KV |
|
| Physical Specifications | ||
| Physical Specifications | Size(L*W*H): 190mm*140mm*43mm, Weight: 1.0KG | |
| Working Environment | ||
| Working Environment | Operating Temperature: -30°C~60°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
|
| Certification | ||
| Certification | CE FCC RoHS 2.0 |
|
| Package Content | ||
| Package Content | AC Power Cable,User Manual |
|
| Warranty | ||
| Warranty | 01 Year warranty | |

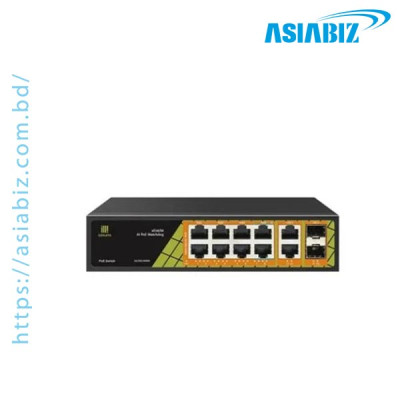

The Geneta GNT‑P1012G6 8 Port AI PoE Switch is a
high-performance Gigabit PoE network switch designed for professional IP camera
surveillance systems, offices, and enterprise networks in Bangladesh. This
advanced switch features 8 Gigabit PoE ports, 2 uplink ports, and 2 SFP ports,
providing fast and stable connectivity for large CCTV networks and high-speed
data transfer. With a 120W total PoE power budget, AI Watchdog technology, and
powerful surge protection, it ensures reliable power delivery and uninterrupted
network operation. The switch supports IEEE 802.3af/at/bt PoE standards, making
it compatible with modern IP cameras, wireless access points, and VoIP devices.
If you are looking for a professional PoE switch for CCTV cameras or business
networks in Bangladesh, this model offers strong performance and reliability at
an affordable price.
8 Gigabit
PoE Ports for High-Speed Devices: The switch includes 8 × 10/100/1000Mbps
PoE ports, allowing you to connect and power IP cameras, access points, and
network devices with high-speed connectivity.
2 Gigabit
Uplink Ports + 2 SFP Ports: Equipped with 2 RJ45 uplink ports and 2 SFP
fiber ports, enabling flexible network expansion and long-distance connections
to routers, NVR systems, or core switches.
120W Total
PoE Power Budget: Provides up to 120W total PoE output, ensuring stable
power supply for multiple surveillance cameras and network devices
simultaneously.
60W
High-Power PoE Support: Ports 7 and 8 support IEEE 802.3bt with up to 60W
output, making them suitable for PTZ cameras and high-power wireless devices.
AI Watchdog
Auto Recovery: The built-in AI Watchdog function automatically detects and
restarts unresponsive IP cameras, keeping your CCTV system running smoothly
without manual maintenance.
High
Performance 24Gbps Switching Capacity: With 24Gbps bandwidth and low
network latency, the switch delivers fast and stable network performance for
surveillance and office networks.
Strong
Lightning and Surge Protection: Each port includes 6KV lightning protection
and 8KV electrostatic discharge protection, protecting devices from power
surges and electrical damage.
Long
Transmission Distance up to 130m: Supports network transmission up to 130
meters, ideal for large CCTV installations in buildings, warehouses, or
commercial spaces.
The Geneta GNT-P1012G6 8 Port AI PoE Switch is
widely used in CCTV surveillance systems, business networks, and enterprise
installations in Bangladesh. Its Gigabit speed, high PoE power output, AI
watchdog system, and strong surge protection make it a reliable choice for
professional installers. Whether you are setting up IP cameras in a shop,
office, factory, or warehouse, this switch ensures stable connectivity and
efficient power delivery. You can get the best price in BD 2026 with genuine
warranty and technical support from Asiabiz Technology, a trusted supplier of
CCTV cameras, IP cameras, DVR, NVR, PoE switches, and security accessories in
Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the Geneta GNT-P1012G6 used for?
A: It is
used to power and connect IP cameras, wireless access points, and network
devices through PoE technology, commonly used in CCTV surveillance systems.
Q: How many
IP cameras can this PoE switch support?
A: It
can support up to 8 IP cameras through its PoE ports depending on the power consumption
of each device.
Q: Does this
switch support fiber connection?
A: Yes.
It includes 2 SFP fiber ports, allowing connection to fiber networks or
long-distance network links.
Q: What is
the maximum transmission distance?
A: The
switch supports up to 130 meters transmission distance using standard Ethernet
cables.
Q: What is
the price of Geneta GNT-P1012G6 in Bangladesh?
A: The average Geneta GNT-P1012G6 price in BD is around ৳6,500, depending on supplier and stock availability.
