| Ports | ||
| Ports | PoE (1~14):10/100Mbps PoE ports (RJ45) PoE (15):10/100Mbps PoE port,Support bt 60W High Power PoE (16):10/100/1000Mbps PoE port (RJ45), Support bt 60W High Power LAN(1~2):10/100/1000Mbps uplink ports (RJ45) SFP:10/100/1000Mbps SFP port |
|
| Transmission Rate | ||
| Transmission Rate | 1000Mbps: Full Duplex Only 10/100Mbps: Full Duplex / Half Duplex |
|
| Performance Specification | ||
| Performance Specification | Bandwidth:11.0Gbps Network Latency (1000Mbps): ≦16μs (use the 64byte package size) MAC address table: 8K Packet Forwarding Rate: 8.2Mpps |
|
| Networking Standard | ||
| Networking Standard | IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
|
| Power Support | ||
| Power Support | Power Input: AC 100~240V Total≤300W PoE Watchdog: Port 1~16 Power Output: PoE1~14 Port:1/2(+52V),3/6(GND)≤30W PoE15~16 Port:1245(+52V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
|
| Protection Level | ||
| Protection Level | Lightning Protection:6KV ESD Protection:8KV |
|
| Physical Specifications | ||
| Physical Specifications | Size(L*W*H): 440mm*180mm*45mm, Weight: 2.65KG | |
| Working Environment | ||
| Working Environment | Operating Temperature: -30°C~60°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
|
| Certification | ||
| Certification | CE FCC RoHS 2.0 |
|
| Package Content | ||
| Package Content | AC Power Cable,User Manual,19inch Rack Earring 1 Pair | |
| Warranty | ||
| Warranty | 01 Year warranty | |

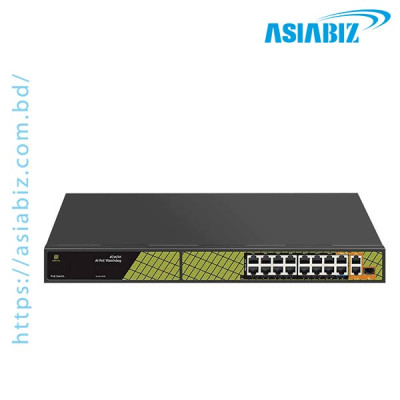

The Geneta GNT-P4813V6 16 Port AI PoE Switch is a
professional-grade networking device designed for large CCTV surveillance
systems, offices, and enterprise networks in Bangladesh. This powerful 16-port
AI PoE switch allows you to connect and power multiple IP cameras, wireless
access points, and network devices through a single Ethernet cable. It comes
with 16 PoE ports, 2 Gigabit uplink ports, and 1 SFP fiber port, ensuring
stable network connectivity and flexible expansion. With a total power budget
of up to 300W, AI Watchdog auto-recovery technology, and strong lightning
protection, this switch is ideal for medium to large security installations
such as offices, shopping malls, warehouses, factories, and commercial
buildings. If you are searching for a high-capacity PoE switch for CCTV cameras
in Bangladesh, this model provides reliable performance and long-distance
transmission.
16 PoE Ports
for Large CCTV Systems: The switch includes 16 PoE ports, enabling you to
connect and power multiple IP cameras or network devices from a single switch.
This makes it ideal for large surveillance installations.
2 Gigabit
Uplink Ports + 1 SFP Fiber Port: It features two Gigabit uplink ports and
one SFP fiber port, allowing easy connection to routers, NVR systems, or core
network infrastructure.
High 300W
Total PoE Power Budget: With a 300W power supply, the switch can power many
cameras simultaneously without affecting network performance.
60W
High-Power PoE Support: Ports 15 and 16 support up to 60W PoE output,
making them suitable for PTZ cameras or high-power devices that require
additional power.
AI Watchdog
Automatic Recovery: The built-in AI Watchdog system automatically detects
and restarts unresponsive IP cameras, helping maintain uninterrupted security
monitoring.
Long
Distance Transmission up to 250m: The switch supports auto-adapt
transmission up to 250 meters, making it suitable for large buildings or
outdoor CCTV installations.
Advanced
Lightning & Surge Protection: Equipped with 6KV lightning protection
and 8KV electrostatic discharge protection, safeguarding connected devices from
electrical damage.
The Geneta GNT-P4813V6 16 Port AI PoE Switch is
widely used in large CCTV surveillance systems and enterprise networks across
Bangladesh. Its high PoE power capacity, AI watchdog system, and flexible
uplink options make it a reliable solution for professional installers and
system integrators. Whether you are installing cameras in offices, shopping
malls, warehouses, or industrial sites, this switch ensures stable connectivity
and efficient power delivery. You can get the best price in BD 2026 with
genuine warranty and technical support from Asiabiz Technology, a trusted
supplier of CCTV cameras, IP cameras, DVR, NVR, PoE switches, and security
accessories in Bangladesh.
Frequently
Asked Questions (FAQs)
Q: What is
the Geneta GNT-P4813V6 used for?
A: It is
used to power and connect IP cameras or network devices using PoE technology,
commonly used in CCTV surveillance systems.
Q: How many
IP cameras can this PoE switch support?
A: The
switch supports up to 16 IP cameras, depending on the power consumption of each
device.
Q: Does the
switch support fiber connection?
A: Yes.
It includes 1 SFP fiber port, allowing connection to fiber networks or
long-distance backbone links.
Q: What is
the maximum transmission distance?
A: This
PoE switch supports up to 250 meters transmission distance depending on cable
quality and network conditions.
Q: Which PoE
switch is best for large CCTV systems in BD 2026?
A: For large installations with many cameras, the Geneta GNT-P4813V6 16 Port AI PoE Switch is a great option due to its 300W power budget, AI watchdog feature, and stable networking performance.
Get specific details about this product from customers who own it.
