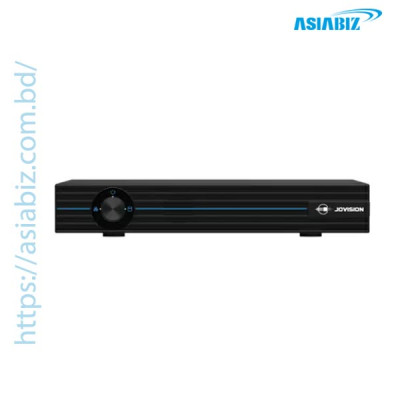

Jovision JVS-ND7608-HP 8 Channel 4K NVR

Description

Jovision JVS-ND7608-HP 8 Channel 4K NVR Price in BD

The Jovision JVS-ND7608-HP 8 Channel 4K NVR is designed for IP CCTV systems that require centralized recording for multiple network cameras. It can manage up to 8 IP camera channels and supports high-resolution network video, including 4K, along with H.265/H.264 compression, intelligent video functions, local hard-drive recording, and remote monitoring.

With its 8-channel capacity, the JVS-ND7608-HP gives users more room to cover different areas of a property from a single recorder. It is suitable for homes, shops, offices, warehouses, factories, schools, commercial buildings, and other surveillance installations where several IP cameras need to be managed and recorded through one NVR.

Key Features of Jovision JVS-ND7608-HP 8 Channel 4K NVR

8-Channel IP Camera Support: The JVS-ND7608-HP provides 8 IP camera channels, allowing up to eight compatible network cameras to be managed through one central NVR. This makes it suitable for surveillance systems that need coverage across multiple entrances, rooms, gates, parking areas, storage sections, or other important locations.

4K Network Video Support: The recorder supports 4K high-definition network video for preview, storage, and playback. It can record one 4K channel while supporting up to eight channels at compatible lower resolutions, allowing the recording setup to be matched with the capabilities of the connected cameras.

Up to 5MP Recording on Multiple Channels: The JVS-ND7608-HP supports recording for up to 8 channels at 5MP, 4MP, 1080P, 960P, or 720P, subject to the supported recording configuration. This makes it suitable for systems using several higher-resolution IP cameras.

80Mbps Network Bandwidth: The NVR supports up to 80Mbps input and 80Mbps output bandwidth, providing the network capacity required to handle multiple IP camera streams within the recorder's supported limits.

H.265 & H.264 Video Compression: Support for H.265 and H.264 allows the recorder to process compatible camera streams using widely used video compression formats. Efficient compression can help control the amount of storage and network bandwidth required for surveillance footage.

VSmart Intelligent Coding: Jovision's VSmart intelligent coding is designed to make surveillance storage more efficient by reducing unnecessary video data while preserving useful image information. This can be helpful when a system needs to retain recordings for longer periods.

Up to 10TB HDD Storage: The NVR includes one SATA interface and supports up to 10TB of hard-drive storage. The actual recording period will depend on the installed HDD, camera resolution, frame rate, compression settings, and recording schedule.

Flexible Recording Modes: The recorder supports manual, scheduled, and motion-detection recording, allowing users to decide when and how their cameras should record. This flexibility can be useful for both continuous-monitoring systems and event-focused installations.

Intelligent Video Analysis: The JVS-ND7608-HP supports several intelligent monitoring functions, including motion detection, regional intrusion detection, tripwire detection, passenger-flow statistics, scene-change detection, and occlusion alarms. The availability of individual functions can depend on the connected camera and system configuration.

Event-Triggered Actions: Supported events can be linked to actions such as recording, snapshots, PTZ control, voice alerts, email notifications, client notifications, and buzzer alerts, depending on the connected equipment and selected settings.

4K HDMI Output: The recorder provides an HDMI output supporting up to 3840 × 2160 at 30Hz, allowing surveillance footage and the NVR interface to be viewed on a compatible high-resolution display.

HDMI & VGA Display Support: In addition to HDMI, the JVS-ND7608-HP includes a VGA output, providing another option for connecting a surveillance monitor or compatible display.

Multi-Channel Decoding: The NVR can decode one 4K channel at 15fps or up to 8 channels at 5MP, 4MP, 1080P, 960P, or 720P at 25fps, according to the supported configuration. This helps accommodate different camera resolutions within the same surveillance system.

Synchronized Playback: The JVS-ND7608-HP supports synchronized playback configurations including one channel at 4K, 5MP, 4MP, or 3MP and two channels at 1080P, helping users review recorded footage from selected cameras.

ONVIF 2.4 Compatibility: The NVR supports ONVIF 2.4, allowing connection with compatible ONVIF IP cameras and other supported surveillance equipment. When using cameras from different manufacturers, compatibility should be confirmed for the required functions before installation.

Built-in Speaker & Voice Alarm: A built-in speaker allows the recorder to provide supported voice alarms and other audio functions directly through the NVR. This can add an audible notification layer to configured security events.

USB & Network Backup: The recorder supports backup through a FAT32 USB device or network, allowing important surveillance footage to be exported and stored separately from the main HDD.

Time and Event Search: Recorded footage can be searched by channel, recording type, and date, making it easier to locate a particular recording instead of manually reviewing all available footage.

Remote Monitoring on Mobile Devices: The JVS-ND7608-HP supports remote access through compatible iPhone and Android applications, allowing users to view and manage their surveillance system from supported mobile devices when the required network connection is available.

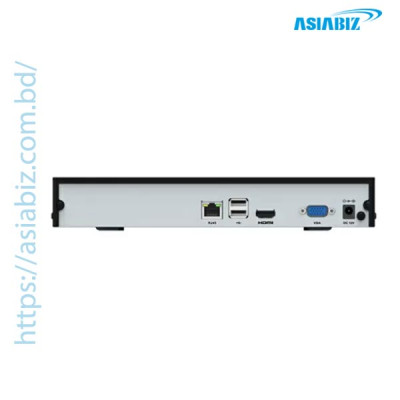

10/100Mbps Ethernet Connection: The NVR includes a 10/100Mbps RJ45 network interface for communication with IP cameras and other network equipment within the surveillance system.

Compact Recorder Design: Measuring approximately 260 × 47.5 × 225mm, the JVS-ND7608-HP is designed for installations where a relatively compact NVR is preferred. Its lightweight chassis is also suitable for organized CCTV equipment setups.

DC12V Power Supply: The recorder operates from DC12V power and has a specified power consumption of up to 10W without an HDD.

Where Can You Use Jovision JVS-ND7608-HP 8 Channel 4K NVR

Home CCTV Recording: The eight channels can be used for cameras covering entrances, gates, driveways, yards, parking spaces, stairways, and other areas around a larger home or residential property.

Shop & Retail Security: A retail store can use the NVR to manage cameras covering the entrance, sales floor, cash counter, storage area, customer section, and surrounding spaces.

Office Surveillance: The JVS-ND7608-HP can centralize video recording from cameras installed at office entrances, reception areas, corridors, workspaces, meeting areas, and other important sections.

Warehouse Monitoring: The eight-channel design can be useful for warehouses that need cameras around entrances, loading areas, storage sections, inventory zones, and other operational areas.

Factory & Industrial CCTV: The recorder can be used as the central recording unit for compatible IP cameras installed around factory entrances, production-area approaches, warehouses, equipment sections, and other monitored locations.

Parking & Gate Security: Cameras connected to the NVR can monitor vehicle entrances, parking areas, gates, driveways, and access points, with recorded footage available for later review.

School & Institutional Surveillance: Schools, clinics, training centers, and other institutions can use the available channels to monitor gates, entrances, corridors, reception areas, offices, and other important locations.

Commercial Building Security: The NVR can bring multiple cameras together for centralized recording in commercial buildings, helping monitor entrances, common areas, parking zones, corridors, and other surveillance points.

Small & Medium Business CCTV System: Businesses that need more than four camera channels but do not require a very large NVR can use the JVS-ND7608-HP as a centralized eight-camera recording platform.

Buy Jovision JVS-ND7608-HP 8 Channel 4K NVR in Bangladesh

Looking for a Jovision JVS-ND7608-HP 8 Channel 4K NVR in Bangladesh for your home, shop, office, warehouse, factory, school, or business CCTV system? This recorder supports 8 IP camera channels, 4K network video, up to 5MP multi-channel recording, H.265/H.264 compression, VSmart intelligent coding, up to 10TB HDD storage, intelligent video analysis, HDMI/VGA output, ONVIF 2.4, USB/network backup, and mobile remote monitoring.

For the current Jovision JVS-ND7608-HP price in Bangladesh, stock availability, and purchasing information, check the latest product details from Asiabiz Technology.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many cameras can the Jovision JVS-ND7608-HP support?

A: The JVS-ND7608-HP is an 8-channel NVR designed to manage up to eight compatible network IP cameras.

Q: Does the Jovision JVS-ND7608-HP support 4K video?

A: Yes. The NVR supports 4K network video for preview, storage, and playback, with one 4K channel supported in the specified recording and decoding configuration.

Q: Can the JVS-ND7608-HP record eight 5MP cameras?

A: Yes. The specification lists support for 8-channel recording at 5MP, along with 4MP, 1080P, 960P, and 720P configurations.

Q: Does the Jovision JVS-ND7608-HP support H.265?

A: Yes. It supports H.265 and H.264 video compression for compatible IP camera streams.

Q: What is VSmart in the Jovision JVS-ND7608-HP?

A: VSmart is Jovision's intelligent coding technology designed to reduce storage requirements and help use available hard-drive capacity more efficiently.

Q: How much HDD storage does the Jovision JVS-ND7608-HP support?

A: The NVR has one SATA interface and supports up to 10TB of storage according to Jovision's specifications.

Q: Does the JVS-ND7608-HP support ONVIF cameras?

A: Yes. It supports ONVIF 2.4, allowing compatible ONVIF IP cameras to be connected. Specific advanced functions should be checked for compatibility with the selected camera.

Q: Does the Jovision JVS-ND7608-HP support motion detection?

A: Yes. The NVR supports motion detection and can use supported detection events to trigger functions such as recording, snapshots, voice alerts, email, client notifications, or buzzer alerts.

Q: What intelligent features are available on the JVS-ND7608-HP?

A: The NVR supports motion detection, regional intrusion, tripwire detection, passenger-flow statistics, scene-change detection, and occlusion alarms. The available functions can depend on the connected IP camera and configuration.

Q: Does the Jovision JVS-ND7608-HP have HDMI output?

A: Yes. The NVR provides HDMI output up to 3840 × 2160 at 30Hz, along with VGA output.

Q: What is the price of Jovision JVS-ND7608-HP NVR?

A: The price Jovision JVS-ND7608-HP NVR around BDT 5,700 to BDT 7,000.
