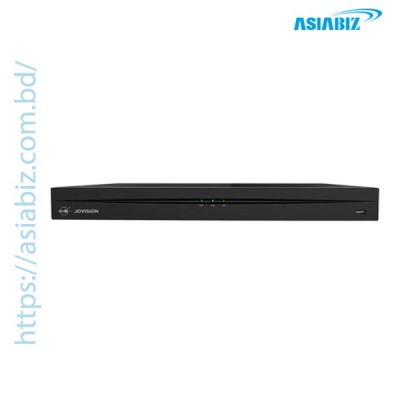

Jovision JVS-ND7916-DV 16 Channel 4HDDs NVR

Description

Jovision JVS-ND7916-DV 16 Channel 4HDDs NVR Price in BD

The Jovision JVS-ND7916-DV 16 Channel 4HDDs NVR is a professional network video recorder built for surveillance systems that require a higher number of IP cameras and substantial local recording storage. It supports 16 IP camera channels, 4K network video, H.265/H.264 compression, up to 320Mbps incoming bandwidth, 160Mbps outgoing bandwidth, four SATA hard-drive interfaces, ONVIF 2.4, HDMI and VGA outputs, alarm input/output, RS485, and remote monitoring through supported platforms.

With four SATA interfaces and support for up to 10TB on each drive, the JVS-ND7916-DV can provide up to 40TB of total HDD capacity when four compatible 10TB drives are installed. This makes it suitable for larger homes, offices, warehouses, factories, shopping spaces, schools, commercial buildings, and other properties where long-term video recording and multiple surveillance cameras are required.

Key Features of Jovision JVS-ND7916-DV 16 Channel 4HDDs NVR

16-Channel IP Camera Support: The JVS-ND7916-DV can manage up to 16 compatible IP cameras, allowing multiple surveillance areas to be monitored and recorded through one centralized NVR.

4K Network Video Support: The recorder supports 4K IP camera input and high-resolution video output, making it suitable for surveillance systems using compatible high-resolution network cameras.

4HDD Storage with up to 40TB Capacity: The NVR provides four SATA interfaces, with support for up to 10TB per HDD. Using four compatible 10TB hard drives can provide up to 40TB total storage, depending on the installed drives.

320Mbps Input & 160Mbps Output: With up to 320Mbps incoming bandwidth and 160Mbps outgoing bandwidth, the recorder is designed to handle multiple high-resolution IP camera streams and network video transmission.

H.265 & H.264 Compression: Support for H.265 and H.264 helps manage video data, reducing the storage and network resources required for compatible camera recordings.

Multi-Resolution Recording & Playback: The JVS-ND7916-DV supports multiple camera resolutions, including 5MP, 4MP, 3MP, 2MP, 1.3MP, and 1MP, with playback capability depending on the selected resolution and number of channels.

ONVIF 2.4 Compatibility: ONVIF 2.4 support allows the NVR to connect with compatible ONVIF IP cameras from supported manufacturers. Advanced features may vary depending on the camera and NVR combination.

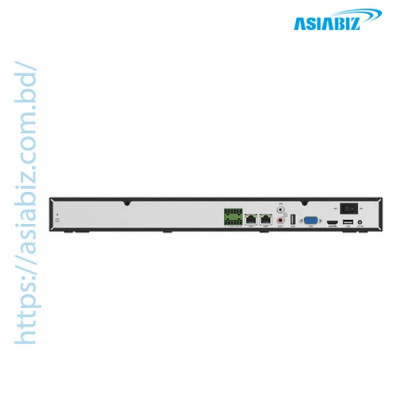

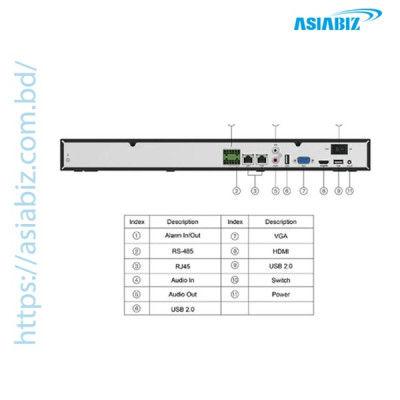

HDMI & VGA Display Output: The recorder provides HDMI and VGA outputs, with HDMI supporting up to 3840 × 2160 at 30Hz, allowing compatible high-resolution monitors to be used for surveillance viewing.

Alarm Input/Output & RS485: The NVR includes 6 alarm inputs, 1 alarm output, and an RS485 interface, providing options for compatible external alarm devices and supported PTZ equipment.

Remote Monitoring Support: Compatible users can access the surveillance system remotely through supported mobile devices and network connections, making it possible to monitor the CCTV system away from the NVR.

Where Can You Use Jovision JVS-ND7916-DV 16 Channel 4HDDs NVR?

Large Home & Property Security: The 16 channels can be used to monitor entrances, gates, driveways, parking areas, yards, corridors, and other important areas across a larger property.

Shop & Showroom Surveillance: A large shop or showroom can connect cameras covering entrances, sales areas, counters, storage sections, customer areas, and surrounding spaces.

Office & Commercial Building Security: The NVR can centralize cameras installed around office entrances, reception areas, corridors, parking zones, access points, and other commercial spaces.

Warehouse Monitoring: Its multi-channel capacity and high storage potential make it suitable for warehouses that require cameras across storage zones, loading areas, entrances, and inventory sections.

Factory & Industrial Surveillance: The JVS-ND7916-DV can be used to manage cameras covering factory gates, equipment areas, production surroundings, warehouses, parking spaces, and other industrial locations.

School & Institutional Security: Schools, colleges, clinics, training centers, and similar institutions can use the 16 channels to monitor gates, entrances, corridors, offices, parking areas, and other important locations.

Residential Building Surveillance: Apartment buildings and residential complexes can use the NVR for centralized monitoring of entrances, common areas, parking spaces, stairways, and building surroundings.

Large-Capacity CCTV Recording: With four SATA interfaces and support for up to 40TB total HDD storage, the recorder is suitable for surveillance systems where extended local recording capacity is important.

Buy Jovision JVS-ND7916-DV 16 Channel 4HDDs NVR in Bangladesh

Looking for a Jovision JVS-ND7916-DV 16 Channel 4HDDs NVR in Bangladesh for your home, office, showroom, warehouse, factory, school, apartment building, or commercial CCTV system? This NVR combines 16 IP camera channels, 4K network video support, 320Mbps input bandwidth, 160Mbps output bandwidth, four SATA HDD interfaces, up to 10TB per HDD, H.265/H.264 compression, ONVIF 2.4, HDMI/VGA output, alarm I/O, and remote monitoring support.

For the current Jovision JVS-ND7916-DV price in Bangladesh, stock availability, and purchasing information, check the latest product details from Asiabiz Technology.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many cameras can the Jovision JVS-ND7916-DV support?

A: The JVS-ND7916-DV is a 16-channel NVR designed to manage up to 16 compatible IP cameras.

Q: How many HDDs can the Jovision JVS-ND7916-DV support?

A: The NVR has four SATA interfaces, allowing up to four compatible hard drives to be installed.

Q: What is the maximum storage capacity of the JVS-ND7916-DV?

A: Each SATA interface supports up to 10TB, allowing up to 40TB total storage with four compatible 10TB HDDs installed.

Q: Does the Jovision JVS-ND7916-DV support 4K cameras?

A: Yes. The recorder supports 4K network video input and HDMI output up to 3840 × 2160 at 30Hz.

Q: Does the Jovision JVS-ND7916-DV support H.265?

A: Yes. It supports both H.265 and H.264 video compression for compatible IP camera streams.

Q: Does the JVS-ND7916-DV support ONVIF cameras?

A: Yes. It supports ONVIF 2.4, allowing compatible ONVIF IP cameras to be connected. Advanced features should be checked for compatibility with the selected camera.

Q: Can I monitor the Jovision JVS-ND7916-DV remotely?

A: Yes. The NVR supports remote monitoring through compatible network connections and supported mobile devices.

Q: Is the Jovision JVS-ND7916-DV suitable for a large CCTV system in Bangladesh?

A: Yes. Its 16-channel capacity, 4K support, four-HDD storage architecture, high network bandwidth, ONVIF compatibility, alarm interfaces, and remote monitoring make it suitable for many larger residential, commercial, institutional, warehouse, and industrial CCTV installations.

Q: What is the price of Jovision JVS-ND7916-DV NVR?

A: The price Jovision JVS-ND7916-DV NVR around BDT 18,000 to BDT 20,000.
