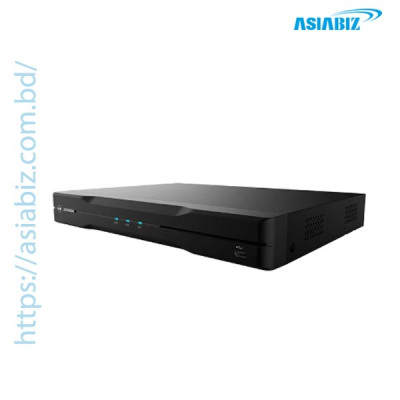

Jovision JVS-ND7916-HV 16 Channel 2HDDs NVR

Description

Jovision JVS-ND7916-HV 16 Channel 2HDDs NVR Price in BD

The Jovision JVS-ND7916-HV 16 Channel 2HDDs NVR is a professional network video recorder designed for larger IP CCTV installations that need centralized recording, playback, monitoring, and flexible storage. It supports 16 IP camera channels, 4K network video, H.265/H.264 compression, up to 320Mbps incoming bandwidth, 160Mbps outgoing bandwidth, dual SATA hard-drive interfaces, ONVIF 2.4, HDMI and VGA display output, and remote smartphone monitoring.

With two SATA interfaces supporting up to 10TB on each drive, the JVS-ND7916-HV provides considerably more local storage flexibility than single-HDD NVRs. Its 16-channel design makes it suitable for larger homes, shops, offices, warehouses, factories, schools, commercial buildings, and other properties where multiple IP cameras need to be managed from one central recording system.

Key Features of Jovision JVS-ND7916-HV 16 Channel NVR

16-Channel IP Camera Support: The JVS-ND7916-HV can manage up to 16 compatible IP camera channels, giving users the ability to monitor numerous areas through one centralized recorder. This makes it suitable for larger surveillance layouts covering entrances, gates, offices, parking areas, storage sections, corridors, and other important locations.

4K Network Video Support: The NVR supports 4K IP camera input and 4K output, making it suitable for surveillance systems using high-resolution network cameras. It can handle different camera resolutions within the same system according to the NVR's supported decoding and recording configuration.

320Mbps Incoming Bandwidth: With up to 320Mbps input bandwidth, the recorder is designed to handle a substantial amount of network video data from connected IP cameras. This provides more flexibility when multiple cameras are transmitting high-resolution footage simultaneously.

160Mbps Outgoing Bandwidth: The NVR provides up to 160Mbps output bandwidth, supporting network-based video transmission and remote surveillance functions within the capabilities of the system and connected network.

Dual SATA HDD Storage: One of the key advantages of the JVS-ND7916-HV is its two SATA hard-drive interfaces. Each interface supports up to 10TB, giving the recorder a combined maximum storage capacity of up to 20TB when two 10TB compatible drives are installed.

H.265 & H.264 Video Compression: The recorder supports H.265 and H.264 video compression, helping manage the amount of data generated by connected IP cameras and making more efficient use of available storage and network resources.

High-Resolution Multi-Channel Recording: The JVS-ND7916-HV supports recording resolutions including 1MP, 1.3MP, 2MP, 3MP, 4MP, and 5MP, allowing users to build a surveillance system using compatible cameras with different resolutions.

Flexible Decoding Capability: The NVR supports decoding of 4K, 5MP, 4MP, 1080P, 960P, and 720P video at supported frame rates, allowing the system to work with a mixture of high- and standard-resolution cameras according to the selected configuration.

4K HDMI Output: The recorder includes an HDMI output supporting up to 3840 × 2160 at 30Hz, allowing compatible 4K monitors or televisions to be used for viewing surveillance footage and the NVR interface.

HDMI & VGA Display Options: In addition to HDMI, the JVS-ND7916-HV provides a VGA output, giving users flexibility when choosing a display for CCTV monitoring.

16-Channel Multi-Screen Viewing: The NVR supports multi-screen display layouts ranging from a single camera view to 16-channel display, allowing users to view different combinations of connected cameras from the central monitoring screen.

Multiple Recording Modes: The recorder supports manual recording, scheduled recording, and motion-detection recording, allowing surveillance recording to be configured according to the requirements of the property.

Motion Detection: Motion detection can be used to trigger recording and other supported actions when movement is detected in a configured camera scene. This can help focus recording and alerts around relevant activity.

Event-Triggered Security Actions: Configured detection events can trigger supported functions such as recording, snapshots, PTZ actions, voice alerts, email notifications, client notifications, and buzzer alerts, depending on the connected equipment and selected settings.

Synchronized Multi-Channel Playback: The JVS-ND7916-HV supports simultaneous playback according to video resolution, including 1-channel 4K, 2-channel 5MP, 3-channel 4MP, and 4-channel 3MP or 1080P playback. This allows users to review recordings from selected cameras according to the available decoding capacity.

ONVIF 2.4 Compatibility: The NVR supports ONVIF 2.4, allowing it to connect with compatible IP cameras from supported manufacturers. This can provide greater flexibility when building a surveillance system using different network camera models.

Gigabit Network Interface: The recorder features a 10/100/1000Mbps RJ45 Ethernet interface, providing a high-speed wired network connection for IP cameras, routers, switches, and remote-monitoring infrastructure.

Remote Smartphone Monitoring: The JVS-ND7916-HV supports iPhone and Android devices, allowing compatible users to access their CCTV system remotely through supported applications and network connections.

USB & Network Backup: Important recordings can be backed up using a FAT32 USB device or network backup, providing additional options for preserving surveillance footage outside the NVR's internal storage.

Time & Event Search: The recorder supports searching by channel number, recording type, and date, helping users locate relevant surveillance footage more efficiently when reviewing an incident.

Audio Input & Output: The JVS-ND7916-HV supports one-channel audio input and one-channel RCA audio output, with audio output also available through HDMI for compatible equipment.

HDMI Audio Support: Audio from compatible IP cameras can be carried through the HDMI output, allowing supported live or recorded audio to be heard through a connected display or audio system.

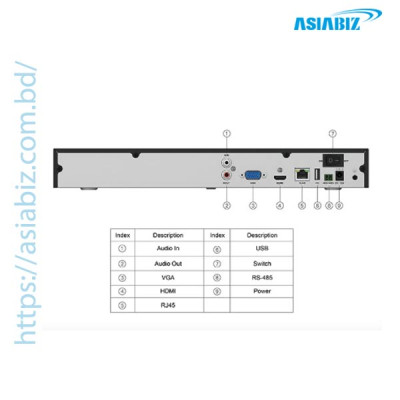

Compact Rack-Style Design: The recorder uses a professional chassis measuring approximately 360 × 45 × 264mm, providing a practical form factor for organized CCTV equipment installations.

DC12V Power Supply: The JVS-ND7916-HV operates using a DC12V power supply and has a specified power consumption of up to approximately 15W without HDDs.

Where Can You Use Jovision JVS-ND7916-HV 16 Channel NVR?

Large Home & Property Security: The 16 available channels can be used to monitor multiple locations around a larger residence or property, including gates, entrances, driveways, yards, parking areas, corridors, stairways, and other important points.

Shop & Showroom Surveillance: Larger shops and showrooms can use the NVR for cameras covering entrances, sales floors, counters, storage sections, customer areas, parking spaces, and surrounding property.

Office CCTV System: The JVS-ND7916-HV can centralize recording from cameras installed throughout office entrances, reception areas, corridors, workspaces, meeting areas, access points, and other sections requiring surveillance.

Warehouse Monitoring: The 16-channel capacity makes the NVR suitable for warehouses with multiple storage sections, loading areas, entrances, inventory zones, parking spaces, and surrounding areas.

Factory & Industrial Security: Compatible IP cameras can be positioned around factory gates, production-area approaches, equipment sections, warehouses, parking zones, and other industrial locations, with recordings managed centrally through the NVR.

School & Institutional Surveillance: Schools, colleges, training centers, clinics, and other institutions can use the available channels to monitor entrances, gates, corridors, offices, parking areas, reception spaces, and other important locations.

Commercial Building Security: The recorder can manage multiple surveillance points across commercial buildings, including entrances, reception areas, corridors, parking spaces, common areas, and access points.

Residential Building Monitoring: The JVS-ND7916-HV can be used for apartment buildings and residential complexes where several cameras are required for entrances, parking areas, stairways, common areas, and building surroundings.

Parking & Gate Surveillance: Multiple cameras can be dedicated to vehicle entrances, gates, driveways, parking areas, and access routes while the NVR provides centralized recording and playback.

Large-Scale IP CCTV Installation: With 16 camera channels and up to two 10TB SATA drives, the NVR is suitable for surveillance systems that require more camera capacity and greater local storage than smaller NVR models provide.

Buy Jovision JVS-ND7916-HV 16 Channel 2HDDs NVR in Bangladesh

Looking for a Jovision JVS-ND7916-HV 16 Channel NVR in Bangladesh for your home, office, shop, warehouse, factory, school, apartment building, or commercial CCTV system? This NVR combines 16 IP camera channels, 4K video support, 320Mbps input bandwidth, H.265/H.264 compression, two SATA HDD interfaces, up to 10TB per HDD, ONVIF 2.4, HDMI/VGA output, Gigabit Ethernet, multi-channel playback, and remote monitoring support in one centralized recording platform.

For the current Jovision JVS-ND7916-HV price in Bangladesh, stock availability, and purchasing information, check the latest product details from Asiabiz Technology.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many cameras can the Jovision JVS-ND7916-HV support?

A: The JVS-ND7916-HV is a 16-channel NVR designed to manage up to 16 compatible network IP cameras.

Q: Does the Jovision JVS-ND7916-HV support 4K cameras?

A: Yes. The NVR supports 4K IP camera input and 4K HDMI output. Its actual recording and decoding capability depends on the selected camera resolution and system configuration.

Q: How many HDDs can the Jovision JVS-ND7916-HV support?

A: The NVR has two SATA interfaces, allowing two compatible hard drives to be installed.

Q: What is the maximum HDD capacity of the JVS-ND7916-HV?

A: Each SATA interface supports up to 10TB, allowing a maximum combined capacity of up to 20TB with two 10TB drives.

Q: Does the Jovision JVS-ND7916-HV support H.265?

A: Yes. It supports both H.265 and H.264 video compression for compatible IP camera streams.

Q: What is the network bandwidth of the Jovision JVS-ND7916-HV?

A: The recorder provides up to 320Mbps incoming bandwidth and 160Mbps outgoing bandwidth.

Q: Can the JVS-ND7916-HV record 5MP cameras?

A: Yes. The NVR supports 5MP recording for compatible IP camera configurations.

Q: Can all 16 cameras be monitored on one screen?

A: Yes. The NVR supports multi-screen display layouts that can show up to 16 camera views on the monitoring interface.

Q: Does the Jovision JVS-ND7916-HV support ONVIF cameras?

A: Yes. It supports ONVIF 2.4, allowing compatible ONVIF IP cameras to be connected. Advanced camera functions should be checked for compatibility with the specific NVR and camera combination.

Q: How many cameras can be played back at the same time?

A: Playback capacity depends on resolution. The specified configuration supports 1-channel 4K, 2-channel 5MP, 3-channel 4MP, and 4-channel 3MP or 1080P playback.

Q: Does the JVS-ND7916-HV support motion detection?

A: Yes. The recorder supports motion detection, with supported events capable of triggering recording and other configured actions.

Q: What recording modes are available on the Jovision JVS-ND7916-HV?

A: The recorder supports manual recording, scheduled recording, and motion-detection recording.

Q: Does the Jovision JVS-ND7916-HV support HDMI and VGA?

A: Yes. It provides one HDMI output and one VGA output for connecting compatible displays.

Q: Can I connect a 4K monitor to the JVS-ND7916-HV?

A: Yes. The HDMI output supports up to 3840 × 2160 at 30Hz, allowing connection to a compatible 4K display.

Q: What is the price of Jovision JVS-ND7916-HV NVR?

A: The price Jovision JVS-ND7916-HV NVR around BDT 11,000 to BDT 13,000.
