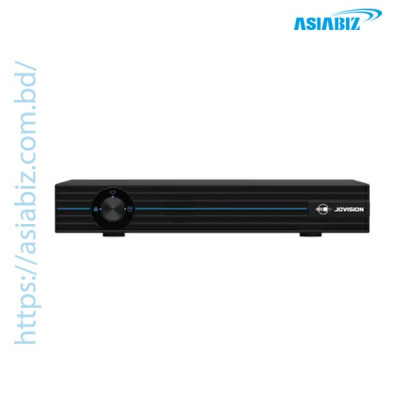

Jovision JVS-ND7616-HP 16 Channel 4K NVR

Description

Jovision JVS-ND7616-HP 16 Channel 4K NVR Price in BD

The Jovision JVS-ND7616-HP 16 Channel 4K NVR is a network video recorder designed for surveillance systems that require centralized management of multiple IP cameras. It provides 16 IP camera channels, supports high-resolution network video including 4K, and combines H.265/H.264 compression, VSmart intelligent coding, up to 10TB HDD storage, intelligent video analysis, HDMI/VGA display output, ONVIF 2.4 compatibility, USB/network backup, and remote monitoring support in one compact NVR.

The 16-channel architecture gives businesses and property owners more flexibility when planning a multi-camera CCTV system. It can be used for homes, shops, offices, warehouses, factories, schools, clinics, commercial buildings, and other locations where several surveillance points need to be managed from a central recorder. The JVS-ND7616-HP is part of Jovision's non-PoE NVR range, so IP cameras need a separate power source or external PoE equipment.

Key Features of Jovision JVS-ND7616-HP 16 Channel 4K NVR

16-Channel IP Camera Support: The JVS-ND7616-HP can manage up to 16 IP camera channels, making it suitable for larger surveillance layouts than 4-, 6-, 8-, or 10-channel NVRs. Multiple cameras can be organized through one central recording platform for easier monitoring and playback.

4K Network Video Support: The NVR supports preview, storage, and playback of 4K high-definition network video. Its detailed decoding configuration supports 1-channel 4K at 15fps, while up to 8 channels can be decoded at supported 5MP, 4MP, 1080P, 960P, or 720P resolutions. This distinction is important when planning a high-resolution multi-camera system.

8-Channel High-Resolution Recording: For compatible camera configurations, the recorder supports recording for up to 8 channels at 5MP, 4MP, 1080P, 960P, or 720P, while 4K recording is specified for one channel. This provides flexibility for systems that use a mixture of camera resolutions.

80Mbps Network Bandwidth: The JVS-ND7616-HP provides up to 80Mbps input and 80Mbps output bandwidth, giving the recorder sufficient network capacity for its supported IP camera streams and remote data handling.

H.265 & H.264 Compression: The recorder supports H.265 and H.264 video compression, helping manage the data generated by connected IP cameras. More efficient compression can help reduce storage and network requirements while maintaining useful surveillance footage.

VSmart Intelligent Coding: Jovision's VSmart intelligent coding technology is designed to improve storage efficiency by reducing unnecessary video data. This can help make better use of the installed HDD, especially in surveillance systems that need longer recording retention.

Up to 10TB HDD Storage: The NVR provides one SATA interface and supports up to 10TB HDD capacity, giving users substantial local storage for surveillance recordings. Actual recording time varies according to HDD capacity, camera resolution, frame rate, compression settings, bitrate, and recording schedule.

VStar User Interface: The JVS-ND7616-HP uses Jovision's VStar GUI, designed to provide a straightforward interface for managing cameras, recording, playback, settings, and other NVR functions.

Intelligent Video Analysis: The recorder supports several intelligent analysis functions, including motion detection, regional intrusion detection, tripwire detection, passenger-flow statistics, scene-change detection, and occlusion alarms. These features can help users focus on configured events instead of relying only on conventional video recording.

Event-Triggered Security Actions: Supported events can trigger configured responses such as recording, snapshots, PTZ actions, voice alerts, email notifications, client notifications, and buzzer alerts, depending on the connected cameras and system configuration.

4K HDMI Display Output: The NVR features an HDMI interface supporting up to 3840 × 2160 at 30Hz, allowing compatible high-resolution displays to be used for live monitoring and NVR operation.

HDMI & VGA Display Interfaces: In addition to HDMI, the recorder includes one VGA output, providing another connection option for compatible surveillance monitors.

Flexible Multi-Screen Display: The JVS-ND7616-HP supports multiple display layouts including 1, 4, 5, 6, 7, 8, and 9 camera views, allowing users to choose a layout according to the number of cameras and viewing requirement.

Multiple Recording Modes: The recorder supports manual recording, scheduled recording, and motion-detection recording, allowing surveillance systems to use continuous schedules or event-based recording according to their requirements.

Synchronized Playback: Playback capability depends on the selected resolution. The specification lists 1-channel synchronized playback at 4K, 5MP, 4MP, or 3MP and 2-channel playback at 1080P, making it possible to review selected recordings according to the system's decoding capacity.

ONVIF 2.4 Compatibility: The JVS-ND7616-HP supports ONVIF 2.4, allowing it to connect with compatible ONVIF IP cameras and other supported network surveillance equipment. Advanced features can vary when combining equipment from different manufacturers.

Built-in Speaker: The NVR includes a built-in speaker, providing support for real-time monitoring audio and voice-alarm functions without requiring a separate speaker for the basic NVR audio output.

Audio Through HDMI: The recorder supports IPC audio input and audio output through HDMI, allowing compatible camera audio to be monitored through a connected HDMI display or audio system.

USB & Network Backup: The recorder supports backup through a FAT32 USB device or network, giving users options for exporting important CCTV footage for separate storage or later review.

Search by Channel, Recording Type & Date: The playback system provides search options based on channel number, recording type, and date, making it easier to locate specific surveillance footage when investigating an event.

Remote Monitoring Support: The JVS-ND7616-HP supports iPhone and Android devices, allowing compatible users to access their surveillance system remotely through a suitable network connection and supported client application.

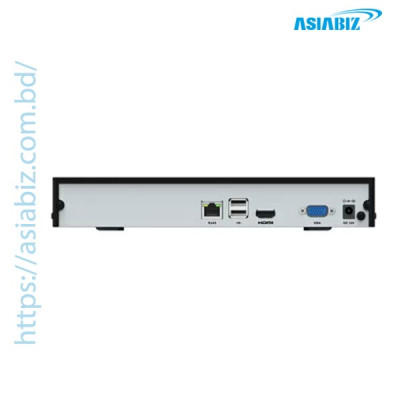

10/100Mbps Ethernet Port: The NVR uses one RJ45 10/100Mbps network interface for communication with IP cameras and other network equipment.

Non-PoE NVR Design: The JVS-ND7616-HP is listed in Jovision's Non-PoE NVR range. This means the NVR itself does not provide PoE power to connected cameras, so cameras require their own power supply or a separate PoE switch/injector.

DC12V Power Supply: The recorder operates using a DC12V power supply, with specified power consumption of up to approximately 10W without an HDD.

Where Can You Use Jovision JVS-ND7616-HP 16 Channel 4K NVR?

Large Home & Property Security: The 16 available channels allow cameras to cover multiple areas such as gates, entrances, driveways, yards, parking spaces, corridors, stairways, and other sections of a larger residential property.

Shop & Showroom Surveillance: A larger retail store or showroom can use the NVR to centralize cameras covering entrances, sales areas, cash counters, storage sections, customer spaces, and surrounding areas.

Office CCTV System: The JVS-ND7616-HP can record cameras positioned throughout office entrances, reception areas, corridors, workspaces, meeting areas, access points, and other important locations.

Warehouse Security: Its 16-channel capacity can be useful for warehouses requiring cameras across several storage sections, loading areas, entrances, parking zones, and operational spaces.

Factory & Industrial Monitoring: Compatible IP cameras can be distributed around factory entrances, production-area approaches, equipment zones, warehouses, gates, and other industrial locations and managed from one central recorder.

School & Educational Institution Security: The NVR can provide centralized recording for cameras positioned at school gates, entrances, corridors, offices, playground approaches, parking areas, and other monitored locations.

Clinic & Healthcare Facility Surveillance: It can be used for suitable surveillance areas such as entrances, reception sections, corridors, administrative spaces, storage areas, and other parts of a healthcare facility where CCTV monitoring is required.

Commercial Building Monitoring: The 16-channel design provides capacity for multiple monitoring points around office buildings, apartment complexes, commercial premises, parking areas, entrances, and common spaces.

Parking & Gate Surveillance: Several cameras can be connected to monitor vehicle entrances, parking spaces, gates, driveways, and access routes, with recordings managed centrally through the NVR.

Multi-Point Business CCTV Installation: Businesses needing more than eight or ten cameras can use a 16-channel recorder to bring multiple surveillance zones into one centralized platform.

Buy Jovision JVS-ND7616-HP 16 Channel 4K NVR in Bangladesh

Looking for a Jovision JVS-ND7616-HP 16 Channel 4K NVR in Bangladesh for your home, shop, office, warehouse, factory, school, clinic, or commercial property? This recorder supports 16 IP camera channels, 4K network video, up to 8-channel 5MP/4MP/1080P recording, H.265/H.264 compression, VSmart intelligent coding, up to 10TB HDD storage, intelligent analysis, HDMI/VGA output, ONVIF 2.4, USB/network backup, and remote monitoring.

For the current Jovision JVS-ND7616-HP price in Bangladesh, stock availability, and purchasing information, check the latest product details from Asiabiz Technology.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many cameras can the Jovision JVS-ND7616-HP support?

A: The JVS-ND7616-HP is a 16-channel NVR designed to manage up to sixteen compatible network IP cameras.

Q: Does the Jovision JVS-ND7616-HP support 4K video?

A: Yes. The NVR supports 4K network video for preview, storage, and playback. Its specified maximum decoding configuration is one 4K channel at 15fps.

Q: Can the JVS-ND7616-HP record eight 5MP cameras?

A: Yes. The manufacturer's specification lists support for 8-channel recording at 5MP, 4MP, 1080P, 960P, or 720P, while 4K recording is specified for one channel.

Q: Does the Jovision JVS-ND7616-HP support H.265?

A: Yes. The recorder supports H.265 and H.264 video compression for compatible IP camera streams.

Q: What is VSmart intelligent coding in the JVS-ND7616-HP?

A: VSmart is Jovision's intelligent coding technology designed to improve storage efficiency by reducing unnecessary video data.

Q: How much HDD storage does the Jovision JVS-ND7616-HP support?

A: The recorder has one SATA interface and supports up to 10TB HDD capacity according to Jovision's specification.

Q: Does the Jovision JVS-ND7616-HP support ONVIF cameras?

A: Yes. It supports ONVIF 2.4, allowing compatible ONVIF IP cameras to be connected. Compatibility of advanced camera functions should be confirmed with the specific camera model.

Q: Does the JVS-ND7616-HP support motion detection?

A: Yes. The NVR supports motion detection as well as additional intelligent functions such as regional intrusion and tripwire detection.

Q: What intelligent analysis functions are available on the Jovision JVS-ND7616-HP?

A: The NVR supports motion detection, regional intrusion detection, tripwire detection, passenger-flow statistics, scene-change detection, and occlusion alarms.

Q: What is the price of Jovision JVS-ND7616-HP NVR?

A: The price Jovision JVS-ND7616-HP NVR around BDT 6,900 to BDT 8,000.
