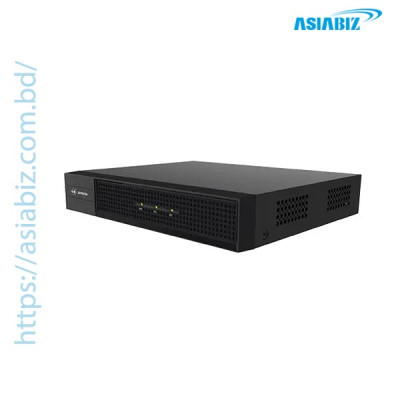

Jovision JVS-ND6604-HA 4 Channel NVR

Description

Jovision JVS-ND6604-HA 4 Channel NVR Price in BD

The Jovision JVS-ND6604-HA 4 Channel NVR is a compact network video recorder designed for small IP CCTV systems that need centralized recording, playback, monitoring, and remote access. It supports up to 4 compatible IP cameras with resolutions up to 5MP, while H.264/H.265 video compression, 4K HDMI display output, ONVIF 2.4 compatibility, motion-based recording, scheduled recording, event playback, and CloudSEE remote monitoring provide the core functions needed for a practical network surveillance setup.

The recorder is suitable for homes, retail stores, offices, small warehouses, educational facilities, and other properties where four network cameras are enough to cover the required areas. A single SATA interface supports a hard drive of up to 6TB, allowing the NVR to store recorded surveillance footage locally according to the selected camera resolution, frame rate, compression, and recording schedule.

Key Features of Jovision JVS-ND6604-HA 4 Channel NVR

4-Channel IP Camera Recording: The JVS-ND6604-HA is built to manage up to four network IP cameras, making it a practical choice for smaller CCTV installations. It supports compatible camera resolutions from 1MP through 5MP, allowing users to build a surveillance system around a variety of supported IP camera models.

Up to 5MP Camera Support: The NVR can accept and record compatible 5MP IP camera streams, giving users the ability to build a higher-resolution surveillance system without moving to a larger channel recorder. The actual recording and decoding performance depends on the selected camera resolution and channel configuration.

H.264 & H.265 Video Compression: The recorder supports H.264 and H.265 video compression standards. Using a more efficient compression format can help control the amount of data generated by network cameras and make better use of available recording storage.

4K HDMI Display Output: The JVS-ND6604-HA provides an HDMI output with support up to 3840 × 2160 at 30Hz, allowing compatible displays to show the NVR interface and surveillance video at high resolution. A VGA output is also provided for display compatibility.

Flexible Multi-Channel Playback: The NVR supports simultaneous playback with capacity depending on the selected video resolution. The listed configuration supports up to 4 channels for lower-resolution streams, 3 channels at 3MP, and 2 channels at 4MP or 5MP, giving users flexible options when reviewing previously recorded footage.

Scheduled, Manual & Event Recording: The recorder supports several recording methods, including manual recording, scheduled recording, alarm-triggered recording, and motion-detection-triggered recording. This allows recording behavior to be configured according to the security requirements of each installation.

Motion Detection: Motion detection can be used to trigger recording when movement is identified in configured camera areas. The available specification indicates that separate detection areas can be configured for each channel, helping focus recording activity on relevant sections of the scene.

1 SATA HDD Interface: The JVS-ND6604-HA includes one SATA interface for a 3.5-inch hard drive and supports storage capacity up to 6TB. The amount of footage that can be retained depends on the hard-drive capacity, camera settings, compression method, and recording schedule.

ONVIF 2.4 Compatibility: The NVR supports ONVIF 2.4, which allows it to work with compatible ONVIF network cameras from supported manufacturers. This can provide additional flexibility when designing a multi-brand IP surveillance system, although compatibility of specific functions should be checked before deployment.

CloudSEE Remote Monitoring: Jovision's CloudSEE platform provides remote access capabilities for compatible surveillance systems. This allows users to check their CCTV system remotely through supported network connections and devices instead of being limited to viewing only from the local monitor.

Up to 16 Remote Channels: The available specification lists support for up to 16 remote channels, providing additional remote viewing capability beyond the recorder's four local camera inputs.

Automatic IP Camera Search: The recorder supports searching for connected IP cameras and simplifying camera addition during initial setup. This can help reduce configuration work when installing compatible network cameras.

Network Assistant & IP Setup: Network-assistance functions are provided to help with IP configuration and initial network setup. These tools can be useful when connecting cameras and the NVR within a local surveillance network.

USB Backup: With two USB 2.0 interfaces, the NVR provides support for compatible USB devices and backup operations. Recorded video and images can be backed up from the recorder for archiving or later review.

Time & Event-Based Playback: Recorded footage can be searched through time-list and event-based playback, making it easier to locate relevant recordings instead of manually watching an entire day's footage.

HDMI & VGA Simultaneous Output: The JVS-ND6604-HA provides one HDMI and one VGA output, with support for simultaneous display output. This allows the recorder to be connected to compatible monitoring screens through different display interfaces.

Audio Output Support: The NVR supports audio output, including audio through the HDMI interface, allowing compatible camera audio to be monitored through supported display or audio equipment.

10/100Mbps Network Interface: The recorder includes a 10/100Mbps RJ45 Ethernet port for network communication with IP cameras, routers, switches, and remote-access infrastructure.

Compact 1U-Style Chassis: The JVS-ND6604-HA uses a compact recorder chassis measuring approximately 260 × 219 × 45mm, making it suitable for organized surveillance installations where space-efficient equipment is preferred.

DC12V Power Supply: The recorder operates from DC12V/2A power and has a specified consumption of up to approximately 15W without the HDD, helping keep the overall power requirement suitable for a small CCTV recording system.

Where Can You Use Jovision JVS-ND6604-HA 4 Channel NVR?

Home CCTV System: The NVR can manage four compatible IP cameras for monitoring entrances, gates, yards, parking spaces, stairways, and other important areas around a home. It provides centralized recording so footage from multiple cameras can be reviewed from one system.

Shop & Retail Surveillance: For a small shop or showroom, four channels can be used for locations such as the entrance, sales area, counter, storage section, or surrounding space. Motion-based and scheduled recording can be configured according to the store's operating requirements.

Office Security: The JVS-ND6604-HA can be paired with compatible IP cameras to record office entrances, reception areas, corridors, workspaces, or other areas where centralized video monitoring is needed.

Small Business CCTV Installation: Businesses that do not need a large multi-channel recorder can use this four-channel NVR to create a compact IP surveillance system while retaining features such as local HDD recording, network access, and high-resolution HDMI output.

Warehouse Monitoring: The recorder can manage compatible cameras positioned at warehouse entrances, storage sections, loading areas, and other monitored points, providing one central location for recording and playback.

School & Institutional Surveillance: Smaller schools, training centers, clinics, and other institutions can use the four available channels for important areas such as entrances, reception points, corridors, and administrative spaces.

Residential Building Monitoring: The NVR can be used with compatible IP cameras to create a centralized surveillance system for building entrances, common areas, parking locations, and other shared spaces in smaller residential properties.

Remote CCTV Monitoring: With CloudSEE support and a suitable network connection, compatible users can access their surveillance system remotely, making it possible to check camera activity even when they are away from the installation site.

Buy Jovision JVS-ND6604-HA 4 Channel NVR in Bangladesh

Looking for a Jovision JVS-ND6604-HA 4 Channel NVR in Bangladesh for a home, shop, office, warehouse, or small business CCTV system? This recorder supports up to four IP cameras, compatible 5MP camera input, H.264/H.265 compression, 4K HDMI output, ONVIF 2.4, up to 6TB HDD storage, motion detection, scheduled recording, USB backup, and CloudSEE remote monitoring.

For the current Jovision JVS-ND6604-HA price in Bangladesh, product availability, and purchasing information, check the latest product details from Asiabiz Technology.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many cameras can the Jovision JVS-ND6604-HA support?

A: The JVS-ND6604-HA is a 4-channel NVR designed to manage up to four compatible network IP cameras.

Q: What is the maximum camera resolution supported by the JVS-ND6604-HA?

A: The NVR supports compatible IP cameras with resolutions up to 5MP. Recording and playback capacity can vary according to the resolution and number of channels being used.

Q: Does the Jovision JVS-ND6604-HA support H.265?

A: Yes. The recorder supports H.265 and H.264 video compression for compatible IP camera streams.

Q: Does the Jovision JVS-ND6604-HA support 4K output?

A: Yes. Its HDMI output supports up to 3840 × 2160 at 30Hz, allowing compatible 4K displays to be connected.

Q: Can I connect 5MP IP cameras to the JVS-ND6604-HA?

A: Yes. The recorder supports compatible 5MP IP camera input and recording. The available playback capacity at 5MP is lower than at 1080P, so the number of channels played simultaneously depends on the selected resolution.

Q: How much HDD storage does the Jovision JVS-ND6604-HA support?

A: The NVR has one SATA interface and supports up to 6TB of HDD storage according to the available model specification.

Q: Does the JVS-ND6604-HA support ONVIF cameras?

A: Yes. It supports ONVIF 2.4, allowing connection with compatible ONVIF IP cameras. Compatibility of advanced camera features should be checked with the specific camera and NVR combination.

Q: What recording modes are available on the Jovision JVS-ND6604-HA?

A: The NVR supports manual, scheduled, alarm-triggered, and motion-detection-triggered recording.

Q: Does the JVS-ND6604-HA support motion detection?

A: Yes. The recorder supports motion detection and allows detection areas to be configured for individual channels.

Q: Does the Jovision JVS-ND6604-HA have HDMI and VGA outputs?

A: Yes. It provides one HDMI port and one VGA port, with support for simultaneous display output.

Q: What is the price of Jovision JVS-ND6604-HA NVR?

A: The price Jovision JVS-ND6604-HA NVR around BDT 4,000 to BDT 7,000.
