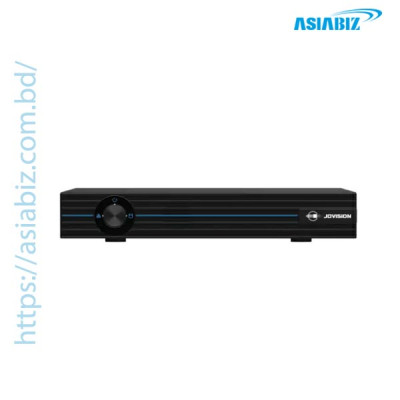

Jovision JVS-ND7604-HP 4 Channel 4K NVR

Description

Jovision JVS-ND7604-HP 4 Channel 4K NVR Price in BD

The Jovision JVS-ND7604-HP 4 Channel 4K NVR is a compact network video recorder for users who need a reliable way to manage, record, and review multiple IP security cameras from one centralized system. It supports 4 IP camera channels, 4K video, H.264/H.265 compression, HDMI and VGA display output, intelligent video analysis, ONVIF 2.4 compatibility, remote monitoring, and up to 10TB of internal SATA storage.

The JVS-ND7604-HP is designed for smaller residential and commercial surveillance systems where four IP cameras are enough to cover the required areas. Its combination of high-resolution video support, flexible recording modes, VSmart intelligent coding, and multiple playback and backup options makes it suitable for homes, shops, offices, warehouses, and other properties in Bangladesh.

Key Features of Jovision JVS-ND7604-HP 4 Channel 4K NVR

4-Channel IP Camera Support: The JVS-ND7604-HP is built to manage up to 4 network IP cameras, making it suitable for compact CCTV installations. Four channels can be allocated to important areas such as entrances, counters, gates, parking zones, storage spaces, or other locations that require video surveillance.

4K Video Support: The NVR supports the preview, recording, storage, and playback of 4K network video, providing compatibility with high-resolution surveillance cameras. Its recording specification supports one channel of 4K recording, while other supported configurations allow multiple channels at lower resolutions.

VSmart Intelligent Coding: Jovision's VSmart intelligent coding technology is designed to reduce the amount of storage space required for surveillance video. This can help make HDD capacity more efficient while retaining useful image information for security recording.

80Mbps Network Bandwidth: The recorder provides up to 80Mbps input and 80Mbps output bandwidth, giving it the network capacity required to handle compatible IP camera streams within its supported recording and decoding limits.

H.265 & H.264 Compression: The JVS-ND7604-HP supports H.265 and H.264 video compression, helping manage the size of recorded video and the amount of network data transmitted by connected IP cameras.

4K HDMI Output: The NVR features an HDMI output supporting up to 3840 × 2160 at 30Hz, allowing compatible 4K monitors or televisions to display surveillance footage and the recorder's interface in high resolution.

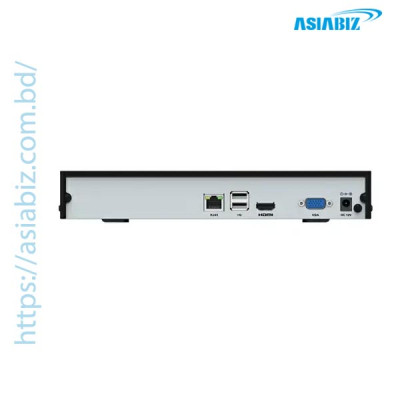

HDMI & VGA Display Options: Along with HDMI, the recorder includes a VGA output, providing additional flexibility when connecting a surveillance monitor or other compatible display equipment.

Multiple Recording Modes: The JVS-ND7604-HP supports manual recording, scheduled recording, and motion-detection recording. This allows users to choose continuous or event-based recording according to the security needs of the installation.

Intelligent Video Analysis: The NVR supports several intelligent functions, including motion detection, regional intrusion detection, tripwire detection, passenger-flow statistics, scene-change detection, and occlusion alarms. These features can provide additional event information beyond simple video recording.

Event-Triggered Actions: Configured detection events can trigger supported actions such as recording, snapshots, PTZ actions, voice alerts, email notifications, client notifications, and buzzer alerts, depending on the connected equipment and setup.

Up to 10TB HDD Support: The recorder includes one SATA interface and supports storage capacity of up to 10TB, providing room for extended video retention depending on camera resolution, compression, frame rate, recording schedule, and installed HDD capacity.

Flexible Multi-Resolution Decoding: The JVS-ND7604-HP supports decoding of one 4K channel at 15fps or multiple lower-resolution channels, including up to four channels at supported 5MP, 4MP, 1080P, 960P, or 720P configurations. This allows system performance to be matched to the resolution requirements of the connected cameras.

Synchronous Playback: The recorder supports synchronized playback configurations including 1-channel playback at 4K, 5MP, 4MP, or 3MP and 2-channel playback at 1080P, making it easier to review recorded footage from selected cameras.

ONVIF 2.4 Compatibility: Support for ONVIF 2.4 allows the NVR to work with compatible ONVIF network cameras, giving installers greater flexibility when selecting supported IP cameras for a surveillance system. Advanced functions can vary between different brands and models.

Built-in Speaker: The JVS-ND7604-HP includes a built-in speaker, allowing supported voice-alarm functions and audio monitoring without requiring a separate external speaker for every basic setup.

HDMI Audio Support: The recorder supports audio input from compatible IP cameras and audio output through HDMI, allowing recorded or live camera audio to be heard through a compatible connected display or audio system.

USB & Network Backup: The NVR supports backup through a FAT32 USB device or network, giving users options for exporting and preserving important surveillance recordings outside the internal hard drive.

Easy-to-Use VStar Interface: The recorder uses Jovision's VStar GUI, which is designed for straightforward operation and smoother navigation when managing cameras, recording, playback, and other NVR functions.

Automatic Camera Search & Setup: Compatible network cameras can be discovered through the NVR's camera-management functions, helping simplify the initial configuration of a new IP surveillance system.

Remote Monitoring Support: The JVS-ND7604-HP supports network-based remote access and iPhone and Android devices, allowing compatible users to monitor their surveillance system from supported mobile devices.

10/100Mbps Ethernet Port: The NVR includes a 10/100Mbps RJ45 network interface for connecting the recorder to the local network, router, switch, and other network equipment used by the IP surveillance system.

DC12V Power Supply: The recorder operates using a DC12V power supply and is specified for power consumption of up to approximately 10W without an installed HDD, making it suitable for compact surveillance environments.

Where Can You Use Jovision JVS-ND7604-HP 4 Channel 4K NVR?

Home CCTV Recording: The four available channels can be used to manage cameras covering entrances, gates, driveways, living areas, parking spaces, or other important sections of a home.

Shop & Retail Security: A small shop can use the NVR to record cameras positioned at the entrance, sales floor, cash counter, storage area, or other locations where video evidence may be required.

Office Surveillance: The JVS-ND7604-HP can centralize recording from cameras installed around office entrances, reception areas, corridors, workspaces, and other business locations.

Small Business CCTV System: Businesses that need a compact IP surveillance recorder can use the four-channel design for a focused security setup without selecting a larger NVR with unused channels.

Warehouse Monitoring: The recorder can manage compatible cameras covering warehouse entrances, storage zones, loading areas, and other important sections where centralized recording is needed.

Parking & Gate Surveillance: Cameras connected to the NVR can be positioned around gates, driveways, parking spaces, and vehicle-access areas, allowing recorded footage to be reviewed from the NVR.

School & Institutional Security: Smaller schools, clinics, training centers, and other institutions can use a four-channel network recorder for important locations such as entrances, reception areas, corridors, and offices.

Residential Building Monitoring: The NVR can be used with compatible IP cameras to record common-area surveillance around smaller residential buildings, including entrances, parking areas, stairways, and access points.

Remote CCTV Monitoring: With a suitable network connection and compatible mobile access, users can check their surveillance system remotely rather than relying only on a locally connected monitor.

Buy Jovision JVS-ND7604-HP 4 Channel 4K NVR in Bangladesh

Looking for a Jovision JVS-ND7604-HP 4 Channel 4K NVR in Bangladesh for your home, shop, office, warehouse, parking area, or small business CCTV system? This NVR supports 4 IP camera channels, 4K video, H.265/H.264 compression, up to 10TB HDD storage, 4K HDMI output, ONVIF 2.4, intelligent detection, USB/network backup, and remote monitoring support.

For the current Jovision JVS-ND7604-HP price in Bangladesh, stock availability, and purchasing information, check the latest product details from Asiabiz Technology.

After Sell Service:

Asiabiz Technology provides the best after sell service to clients. You can get the best support almost anytime by contact in our hotline at ‘09678221422’ or our sales and technical team’s number at01404-466160-61-62-63-66. We believe that providing the best service helps build strong relationships with our clients.

Frequently Asked Questions (FAQs)

Q: How many cameras can the Jovision JVS-ND7604-HP support?

A: The JVS-ND7604-HP is a 4-channel NVR designed to manage up to four compatible network IP cameras.

Q: Does the Jovision JVS-ND7604-HP support 4K cameras?

A: Yes. The NVR supports the preview, recording, storage, and playback of 4K network video. Its detailed recording and decoding capacity depends on the resolution and number of channels being used.

Q: What is the maximum HDD capacity of the JVS-ND7604-HP?

A: The NVR has one SATA interface and supports up to 10TB of storage according to Jovision's specifications.

Q: Does the Jovision JVS-ND7604-HP support H.265?

A: Yes. It supports both H.265 and H.264 video compression for compatible IP camera streams.

Q: What is VSmart intelligent coding in the Jovision JVS-ND7604-HP?

A: VSmart is Jovision's intelligent coding technology, designed to reduce storage requirements so available HDD capacity can be used more efficiently for surveillance recording.

Q: Does the JVS-ND7604-HP have HDMI output?

A: Yes. It provides HDMI output up to 3840 × 2160 at 30Hz, along with a VGA output.

Q: Can the Jovision JVS-ND7604-HP record all four cameras at the same time?

A: Yes, it supports four-channel recording in supported resolutions. However, the maximum supported resolution varies according to the recording configuration; the specification lists one-channel 4K recording and four-channel recording at supported resolutions such as 5MP, 4MP, 1080P, 960P, and 720P.

Q: Does the Jovision JVS-ND7604-HP support ONVIF cameras?

A: Yes. It supports ONVIF 2.4, allowing connection with compatible ONVIF IP cameras. Compatibility of advanced features should be checked with the specific camera and NVR combination.

Q: Does the JVS-ND7604-HP support motion detection?

A: Yes. The NVR supports motion detection and can use detection events to trigger supported actions such as recording, snapshots, email notifications, client alerts, voice functions, or buzzer alerts.

Q: What is the price of Jovision JVS-ND7604-HP NVR?

A: The price Jovision JVS-ND7604-HP NVR around BDT 5,200 to BDT 7,000.
